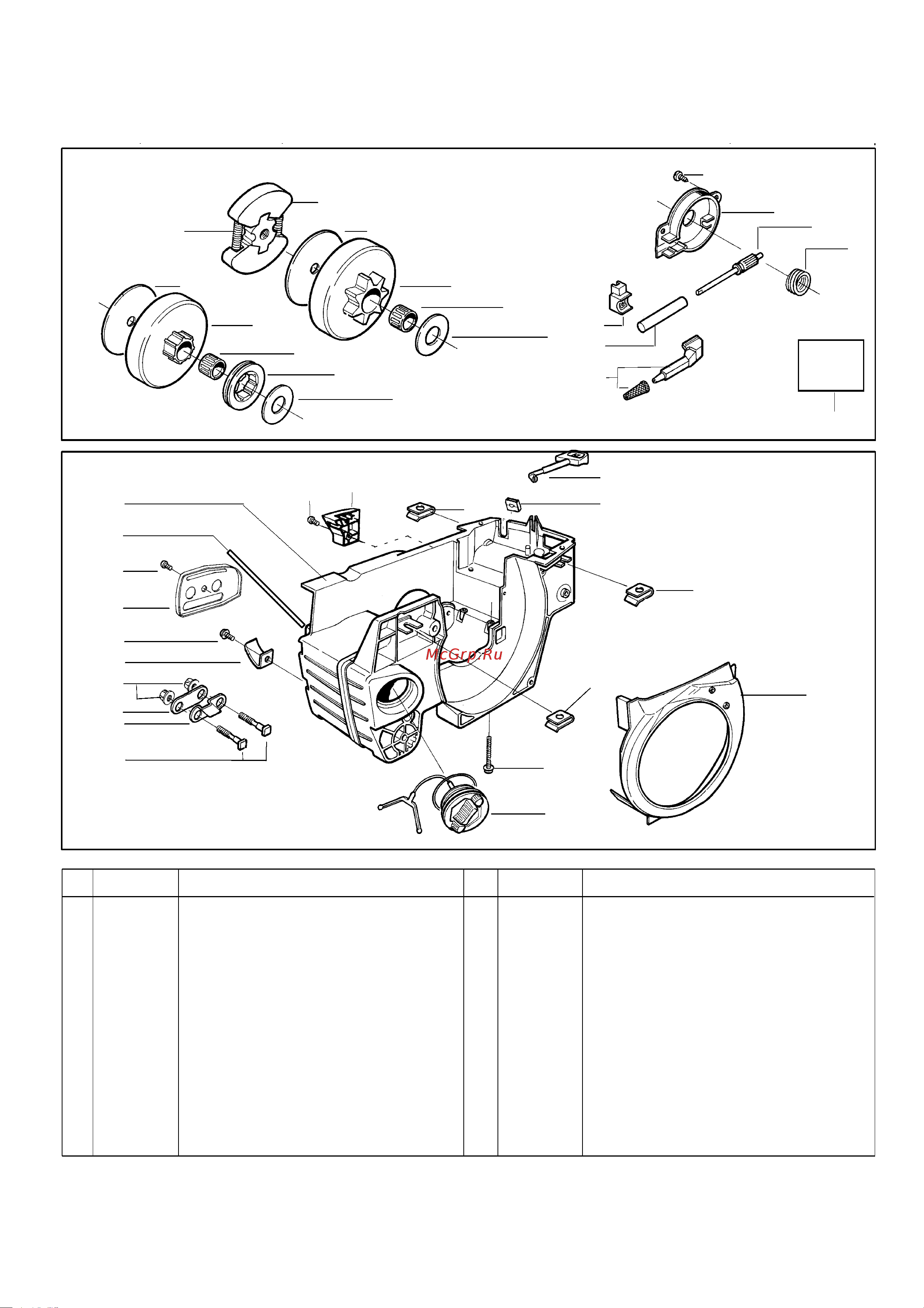

1 530 01 49-49 Clutch Assembly (incl. 2)
2 530 09 41-88 Spring -- Clutch
3 530 01 56-11 Clutch Washer
4 530 06 93-42 Clutch Drum w/Bearing Assíy.
5 530 06 93-16 Drum, Adapt. & Bearing Kit (incl. 6 & 7)
6 530 03 21-19 Clutch Bearing
7 530 02 86-50 Rim--Floating (.325)
8 530 01 59-07 Thrust Washer
9 530 01 58-96 Screw
10 530 02 98-35 Oil Pump Housing
11 530 02 98-38 Plunger & Gear Assembly
12 530 02 98-33 Oil Pump Worm
13 530 01 91-74 Oil Seal
14 530 02 98-34 Oil Pump Barrel
15 530 01 47-76 Oil Pick--Up and Screen Assembly
16 530 01 44-10 Oil Pump Assembly (Includes 10,11 & 14)
17 530 06 99-42 Kit -- Chassis Assíy.
Description
18 530 05 24-40 Tube--Oil Vent
19 530 01 58-96 Screw (optional)
20 530 04 78-55 Bar Plate
21 530 01 58-78 Screw
22 530 02 98-50 Chain Catcher
23 530 01 59-17 Nut
24 530 01 92-28 Gasket
25 530 03 60-43 Bar Stud Plate
26 530 01 58-77 Bar Bolt
27 530 01 58-93 Screw
28 530 05 24-28 Cover
29 530 02 98-31 Choke Lever
30 530 02 98-30 Grommet
31 530 01 59-22 Type îUî Speed Nut
32 530 02 98-00 Baffle Plate
33 530 01 60-37 Screw
34 501 76 56-02 Assy.-- Oil Tank Cap
Part No. Ref. Part No. DescriptionRef.
1
2
4
6
8
16
14
12
15
13
17
19
20
29
31
32
33
34
24
25
23
22
21
9
10
Oil Pump
Aíssy.
11
3
5
6
7
8
18
31
31
= NEW PART NUMBER FOR THIS IPLn
=
REFER TO THE SERVICE REFERENCE INDICATED FOR MORE INFORMATION. (LOCATED AT END OF IPL)
D
K
=
THESE PARTS ARE ILLUSTRATED FOR CLARITY. ORDER COMPLETE ASSEMBLY.
28
27
30
3
26
