3

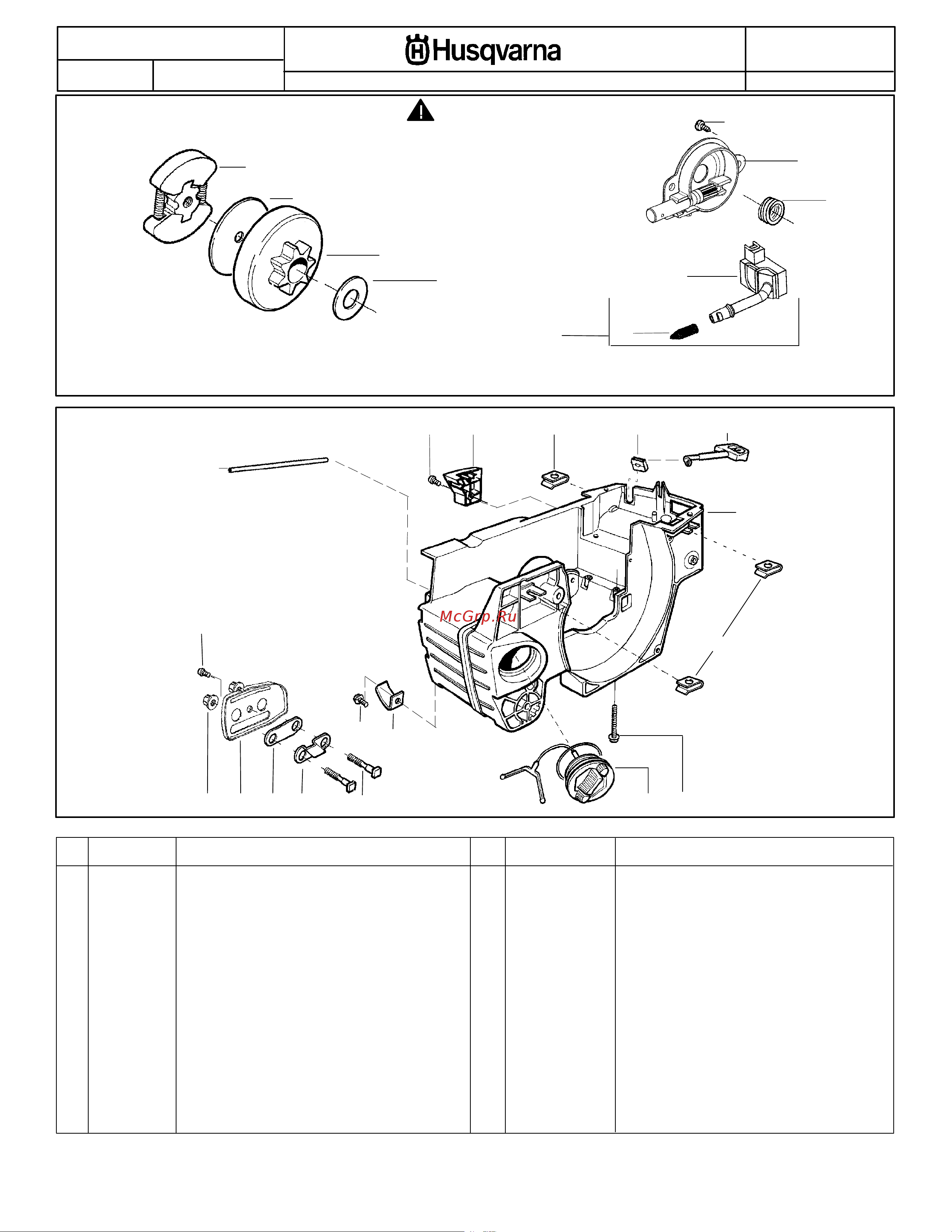

Note: Illustration may differ from actual model due to design changes
PARTS LIST NO.
PAGE NO.
CHAIN SAW MODEL(s)
530165405
137 Export
DATE
09/18/06
Replaces
r PARTS LIST
530165405 -- 05/19/06
1 530014949 Assy--Clutch
2 53001561 1 Washer--Clutch
3 ------ Assy--Clu t ch Drum
530047061 3/8”
530048132 .325”
4 530015907 Washer--Thrust
5 530014776 Assy--Oil Pick--Up and Screen (Incl. 6,7)
6 530056533 Filter--Oil
7 545037101 Assy--Pickup
8 530015896 Screw
9 530014410 Assy--Oil Pump
10 530029833 Worm Gear--Oil Pump
1 1 545033501 T ube--Oil Vent
12 530015896 Screw (optional)
13 530015917 Nut
Description
14 530047855 Plate--Bar
15 530019228 Gasket
16 530036043 Plate--Bar Stud
17 530015877 Bar Bolt
18 530015878 Screw
19 530029850 Chain Catcher
20 530015893 Screw
21 530052428 Cover
22 530015922 Nut--Type ”U” Speed
23 530029830 Grommet
24 530029831 Lever--Choke
25 530071991 Kit -- Chassis Ass’y .
26 530015922 Nut--Type ”U” Speed
27 530016037 Screw
28 501765602 Assy.-- Oil Tank Cap
Part No. Ref. Part No. DescriptionRef.
1
3
4
25
12
14
2422
27
28
15
16
13
19
18
26
= NEW PART NUMBER FOR THIS IPLn
=
REFER TO THE SERVICE REFERENCE INDICATED FOR MORE INFORMATION. (LOCATED AT END OF IPL)
D
K
=
THESE PARTS ARE IL LUSTRATED FOR CLARITY. ORDER COMPLETE ASSEMBLY.
21
20
23
2
17
W ARNING
All repairs, adjustments and
maintenance not described in
the Operator’s Manual must be
performed by qualified service
personnel.
11
7
10
6
8
9
5
