Husqvarna 137 (2007) parts [5/6] R parts list

Husqvarna 137 (2007) parts [5/6] R parts list
4

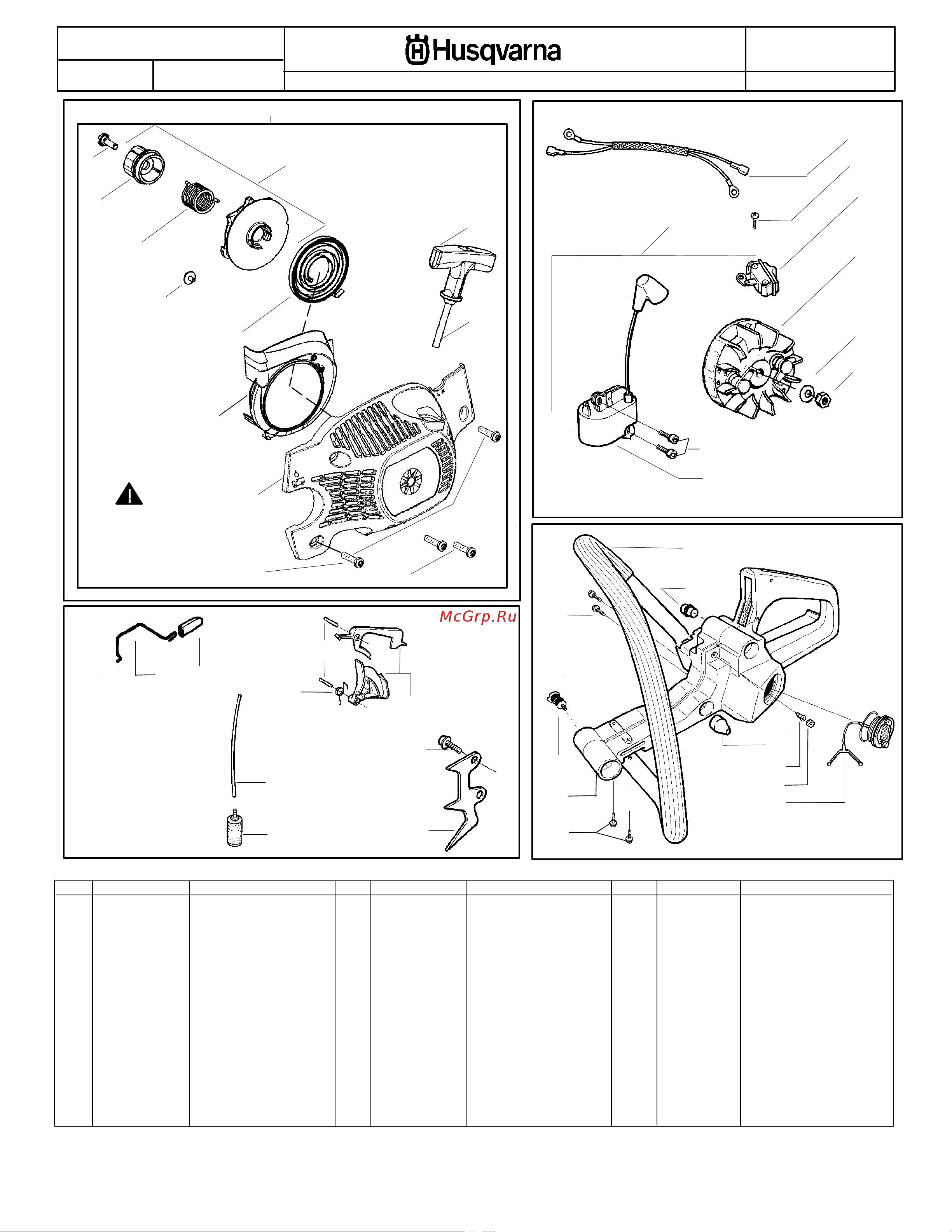

Note: Illustration may differ from actual model due to design changes
PARTS LIST NO.
PAGE NO.
CHAIN SAW MODEL(s)
530165405
137 Export
DATE
09/18/06
Replaces
r PARTS LIST
530165405 -- 05/19/06
28 530069247 Kit -- Fuel line
29 530014497 Assy.-- Fuel Pickup
30 530016439 Screw
31 530014381 Kit--Assy Spike (Incl.#30)
(Optional)
32 530015940 Screw
33 530029870 Element -- AV Isolator
34 530052446 Assy. --Tank/Handle
35 530015843 Screw
36 530059961 Handle--Front
37 530052439 Isolator--Front Handle
38 530029984 Isolator
39 5300261 19 V alve -- Check
40 530038264 Plug -- Vent
41 530071266 Kit--Assy. Fuel Cap
1 530071968 Kit--Fan Hsg / Starter
(Incl. 2, 3, 4, 5, 6, 7
8, 9, 10, 1 1, )
2 530071966 Kit--Starter EPS
(Incl. 5,6,7,8)
3 530150318 Handle--Starter
4 530069232 Kit--Rope
5 530021 179 Screw--shoulder
6 530059677 Hub
7 530021 180 Spring--EPS
8 530016080 Screw
9 530042095 Spring--Starter
10 530059959 Baffle--Air
1 1 530059958 Assy--Fan Hsg. w/eyelet
12 530015893 Screw
13 530015892 Screw
14 530071967 Kit--EPS ignition
(Incl. 17, 18, 22)
15 530403257 Assy--Leadwire
16 530015896 Screw
17 503717901 Switch--Ignition
18 530059637 Assy. --Flywheel
19 530015127 Washer--Flywheel
20 530016134 Nut
21 545003902 Screw
22 530039239 Module -- Ignition
23 530029869 Wire -- Throttle
24 530029863 Cap -- Wire
25 530029860 Pin
26 530029861 Spring
27 530069587 Kit -- Throttle Trigger
Ref. Part No. Description
Ref.
7
5
2
3
9
11
8
16
18
15
22
20
19
Part No.
Description
6
21
34
39
40
38
35
29
24
33
= NEW PART NUMBER FOR THIS IPLn
=
REFER TO THE SERVICE REFERENCE INDICATED FOR MORE INFORMATION. (LOCATED AT END OF IPL)
D
K
=
THESE PARTS ARE ILLUSTRATED FOR CLARITY. ORDER COMPLETE ASSEMBLY.
27
26
28
25
41
32
37
36
17
Ref. Part No. Description
12
23
4
13
14
10
W ARNING
All repairs, adjustments and
maintenance not described in
the Operator’s Manual must be
performed by qualified service
personnel.
1
30
31
