Chapter 1. 1-11

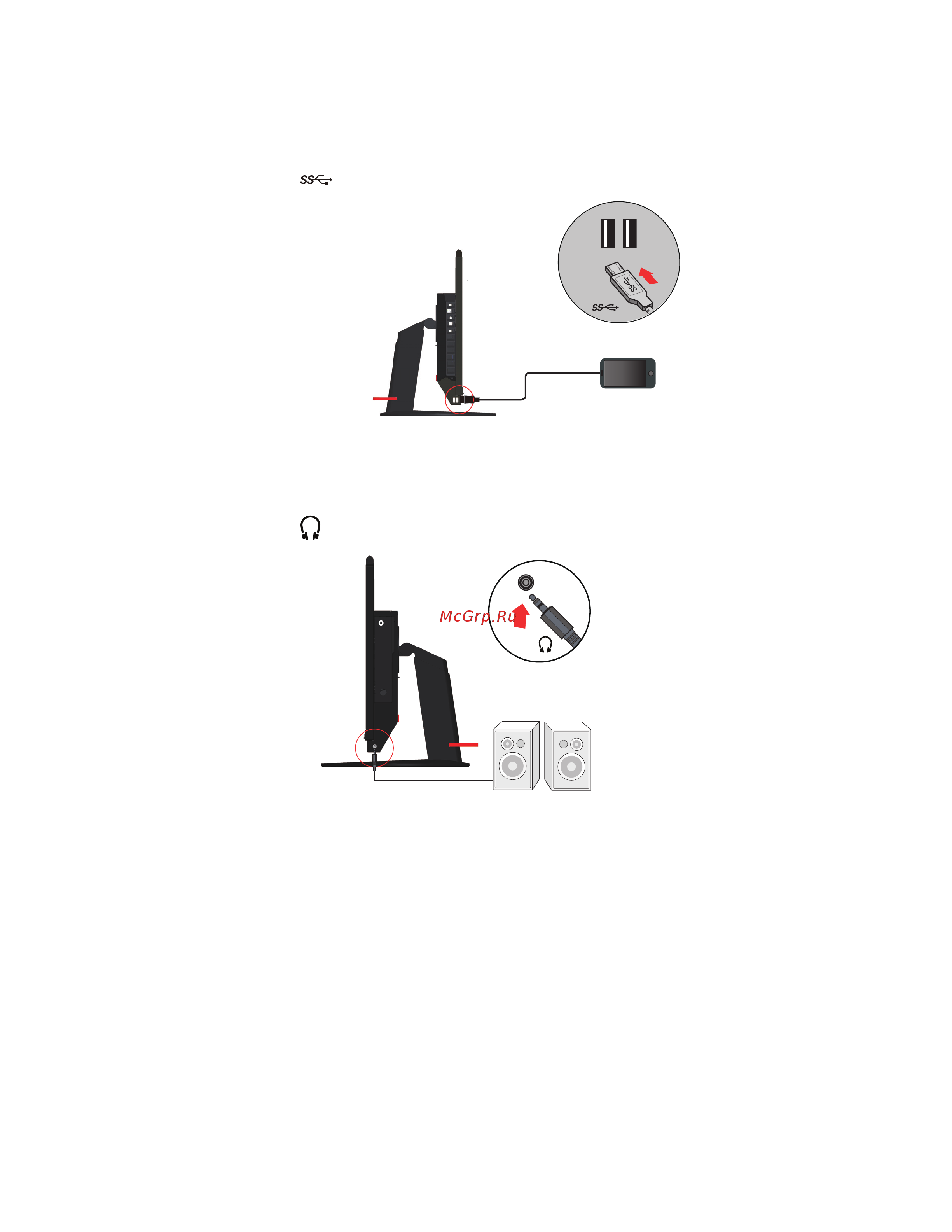

5. Connect one end of the USB cable to the USB downstream terminal on the side of the

monitor, and connect the other end of the USB cable to an appropriate USB port on your

device.

Note: The USB downstream port does not provide power while the monitor switch is off.

6. Connect the speaker’s audio cable and audio jack of monitor to transfer audio source from

DP, HDMI or USB.

Note: The audio output in DP, HDMI modes.
