ASRock AMD X570 SAM4 ATX X570 TAICHI [94/109] Super io configuration
![ASRock AMD X570 SAM4 ATX X570 TAICHI [94/109] Super io configuration](/views2/2002895/page94/bg5e.png)
English
87
X570 Taichi

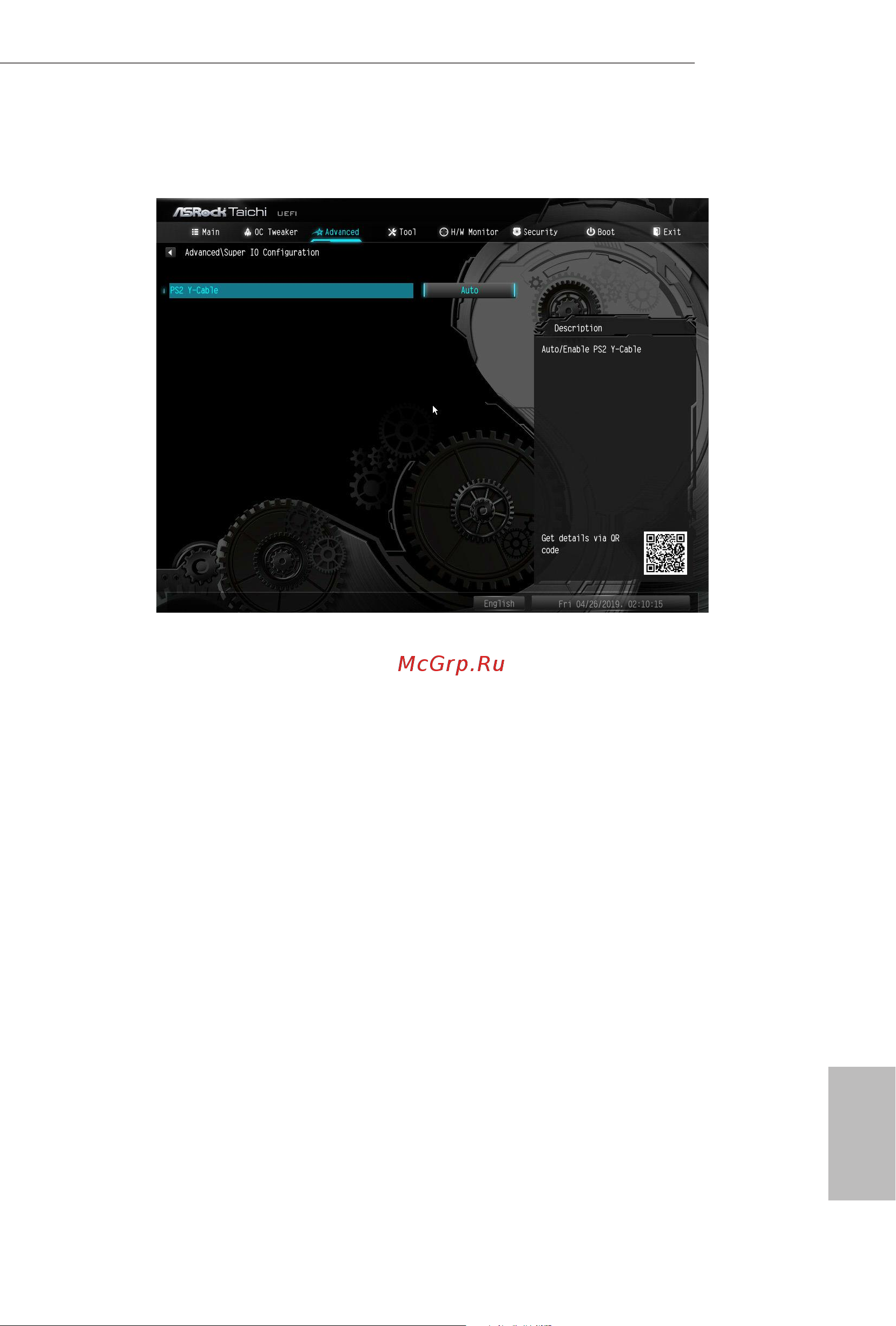

4.4.5 Super IO Conguration
PS2 Y-Cable
Enable the PS2 Y-Cable or set this option to Auto.
