X370M Pro4 R2.0
AB350M Pro4 R2.0
A320M Pro4 R2.0
31
English

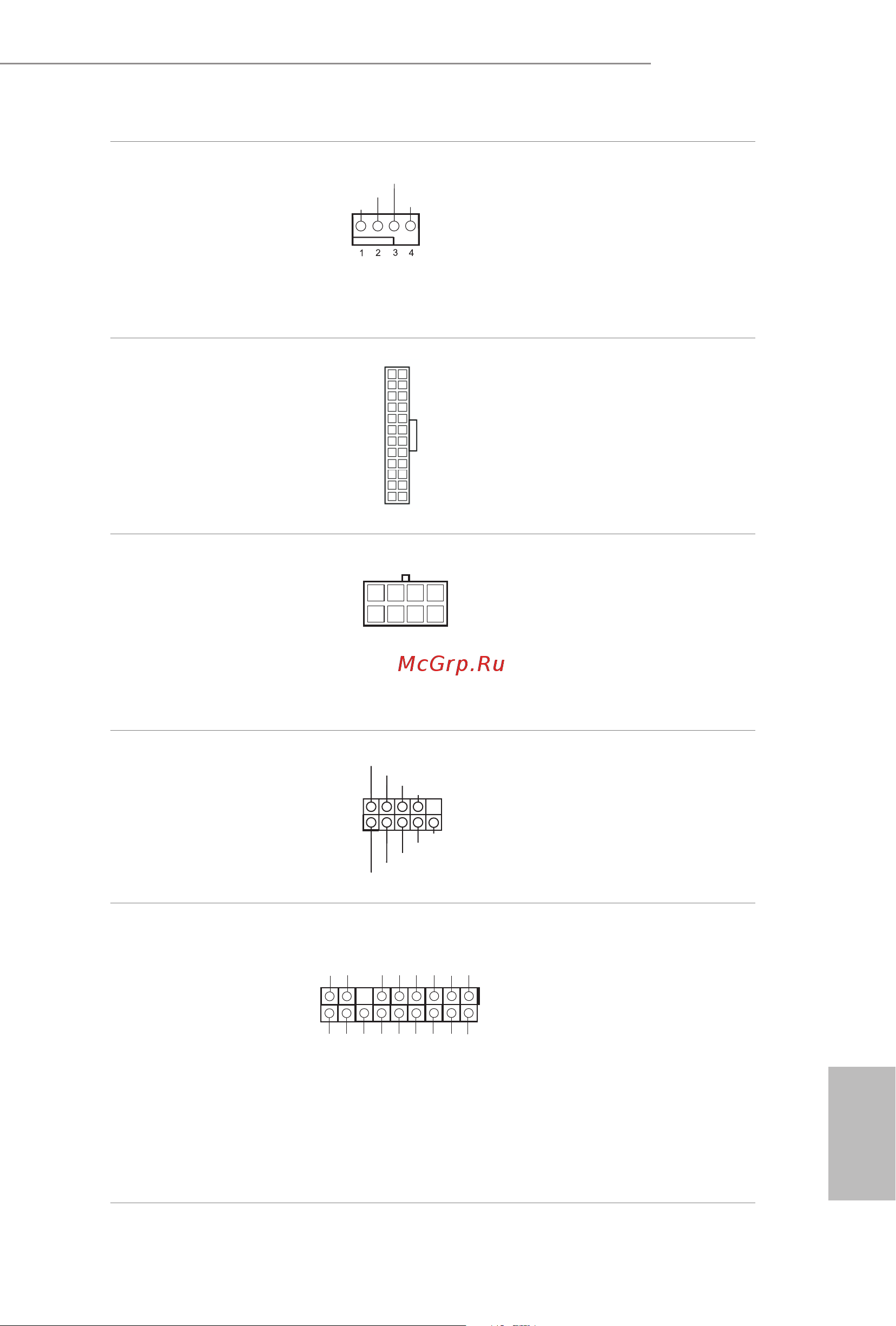

CPU Fan Connector
(4-pin CPU_FAN1)
(see p.7, No. 2)
is motherboard pro-
vides a 4-Pin CPU fan
(Quiet Fan) connector.
If you plan to connect a
3-Pin CPU fan, please
connect it to Pin 1-3.
ATX Power Connector
(24-pin ATXPWR1)
(see p.7, No. 7)
is motherboard pro-
vides a 24-pin ATX power
connector. To use a 20-pin
ATX power supply, please
plug it along Pin 1 and Pin
13.
ATX 12V Power
Connector
(8-pin ATX12V1)
(see p.7, No. 1)
is motherboard
provides a 8-pin ATX 12V
power connector. To use a
4-pin ATX power supply,
please plug it along Pin 1
and Pin 5.
Serial Port Header
(9-pin COM1)
(see p.7, No. 20)
is COM1 header
supports a serial port
module.
TPM Header
(17-pin TPMS1)
(see p.7, No. 21)
is connector supports
Trusted Platform Module
(TPM) system, which can
securely store keys, digital
certicates, passwords,
and data. A TPM system
also helps enhance
network security, protects
digital identities, and
ensures platform integrity.
12
1
24
13
5
1
8
4
CCTS#1
RRTS#1
DDSR#1
DDTR#1
RRXD1
GND
TTXD1
DDCD#1
1
RRI#1
GND
FAN_VOLTAGE_CONTROL
FAN_SPEED
FAN_SPEED_CONTROL
1
GN D
SMB_DATA _MAIN
LAD2
LAD1
GN D
S_PWRDWN #
SERIRQ #
GN
D
P C ICL K
P C IRST #
LAD3
+3V
LAD0
+3VS B
GN D
FRAM E
SMB_CLK_ MAIN
