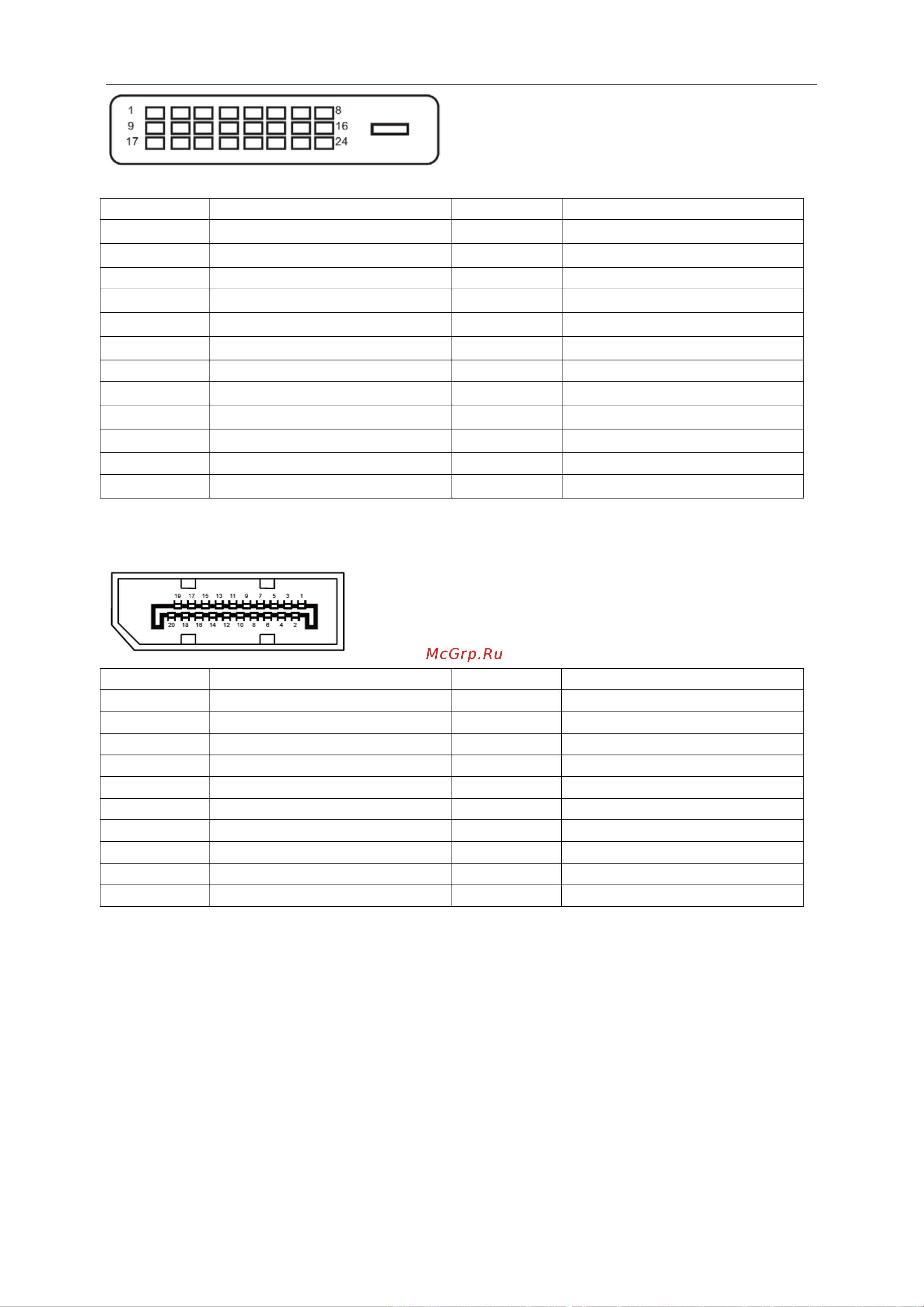

24-Pin Color Display Signal Cable
Pin No.
Signal Name
Pin No.
Signal Name
1
TMDS data 2－
13
TMDS data 3＋
2 TMDS data 2＋ 14 ＋5V Power
3
TMDS data 2/4 Shield
15
Ground (for+5V)
4
TMDS data 4－
16 Hot Plug Detect
5
TMDS data 4＋
17
TMDS data 0－
6 DDC Clock 18 TMDS data 0＋
7
DDC Data
19
TMDS data 0/5 Shield
8 N.C. 20
TMDS data 5－
9 TMDS data 1－ 21 TMDS data 5＋
10 TMDS data 1＋ 22 TMDS Clock Shield
11
TMDS data 1/3 Shield
23
TMDS Clock +
12
TMDS data 3－
24
TMDS Clock －
20-Pin Color Display Signal Cable
Pin No.
Signal Name
Pin No.
Signal Name
1
ML Lane 3(n)
11
GND
2 GND 12 ML Lane 0(p)
3 ML Lane 3(p) 13 CONFIG1
4 ML Lane 2(n) 14 CONFIG2
5
GND
15
AUX CH(p)
6 ML Lane 2(p) 16 GND
7 ML Lane 1(n) 17 AUX CH(n)
8 GND 18 Hot Plug Detect
9 ML Lane 1(p) 19 Return OP PWR
10
ML Lane 0(n)
20
DP PWR
