Tesla TT22EXC1-0732IA [50/64] Drilling a hole in the wall for the piping

50

ENG

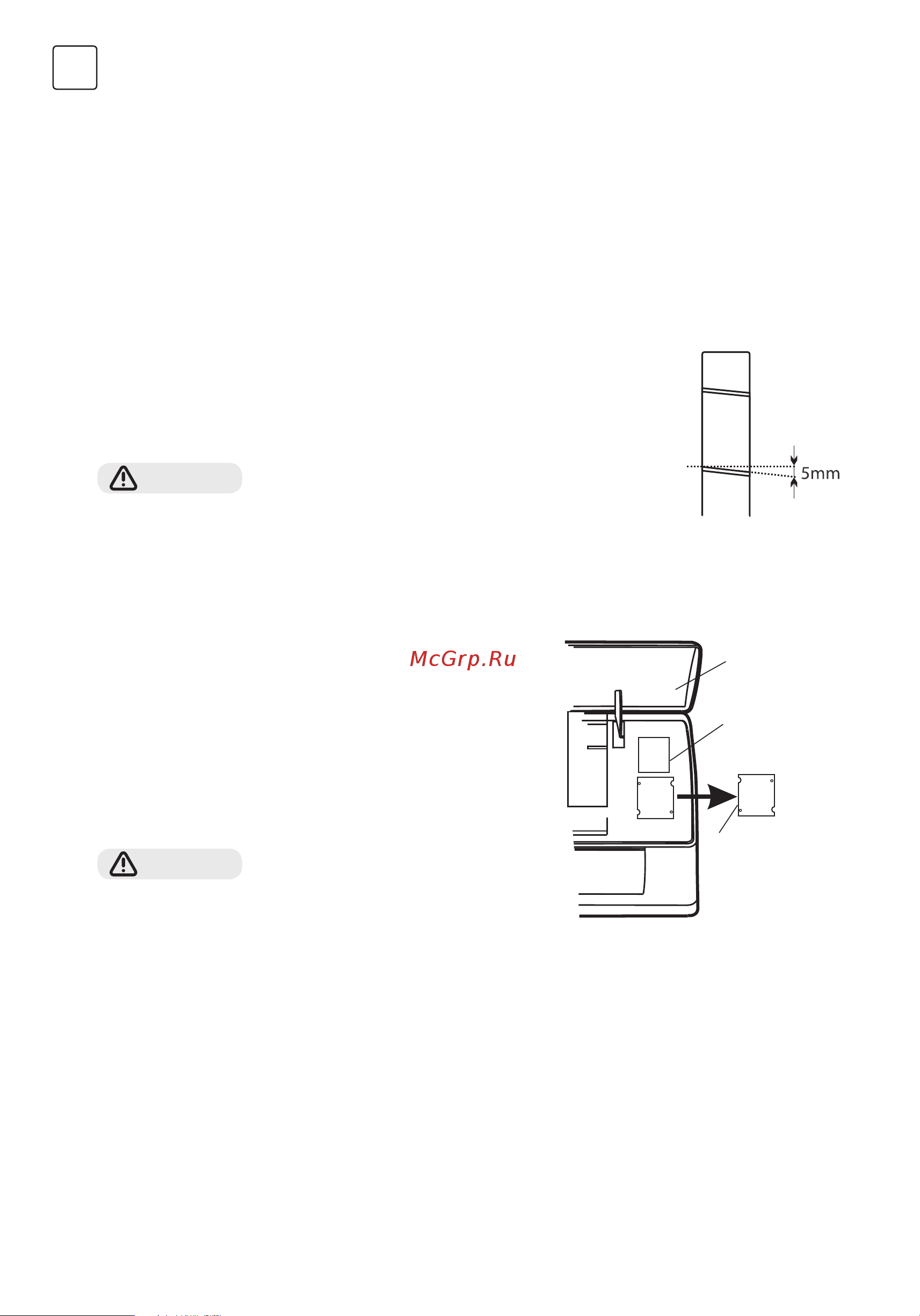

1. Make the piping hole (ɸ65) in the wall at a slight downward slant to the

outdoor side.

2. Insert the piping-hole sleeve into the hole to prevent the connection

piping and wiring from being damaged when passing through the hole.

1. Open the front panel.

2. Take off the cover as indicated in the piciure ( by

removing a screw or breaking the hooks).

requirements.

To install, proceed as follows:

Installation of the mounting plate

Drilling a hole in the wall for the piping

Electrical connections-Indoor unit

• The cable connecting the outdoor and indoor units must be

suitable for outdoor use.

• The plug must be accessible also after the appliance has been

installed so that it can be pulled out if necessary.

• An efficient earth connection must be ensured.

Note: Keep the drain pipe down towards the direction of the wall hole,

otherwise leakage may occur

1. Always mount the rear panel horizontally and vertically

2. Drill 32 mm deep holes in the wall to fix the plate;

3. Insert the plastic anchors into the hole;

4. Fix the rear panel on the wall with provided tapping screws

5. Be sure that the rear panel has been fixed firmly enough to withstand the weight

Note: The shape of the mounting plate may be different from the one above, but installation method is similar .

WARNING!

WARNING!
