Grandstream GXP-2170 [6/31] Gxp2170 extension module gxp2200ext

7 8

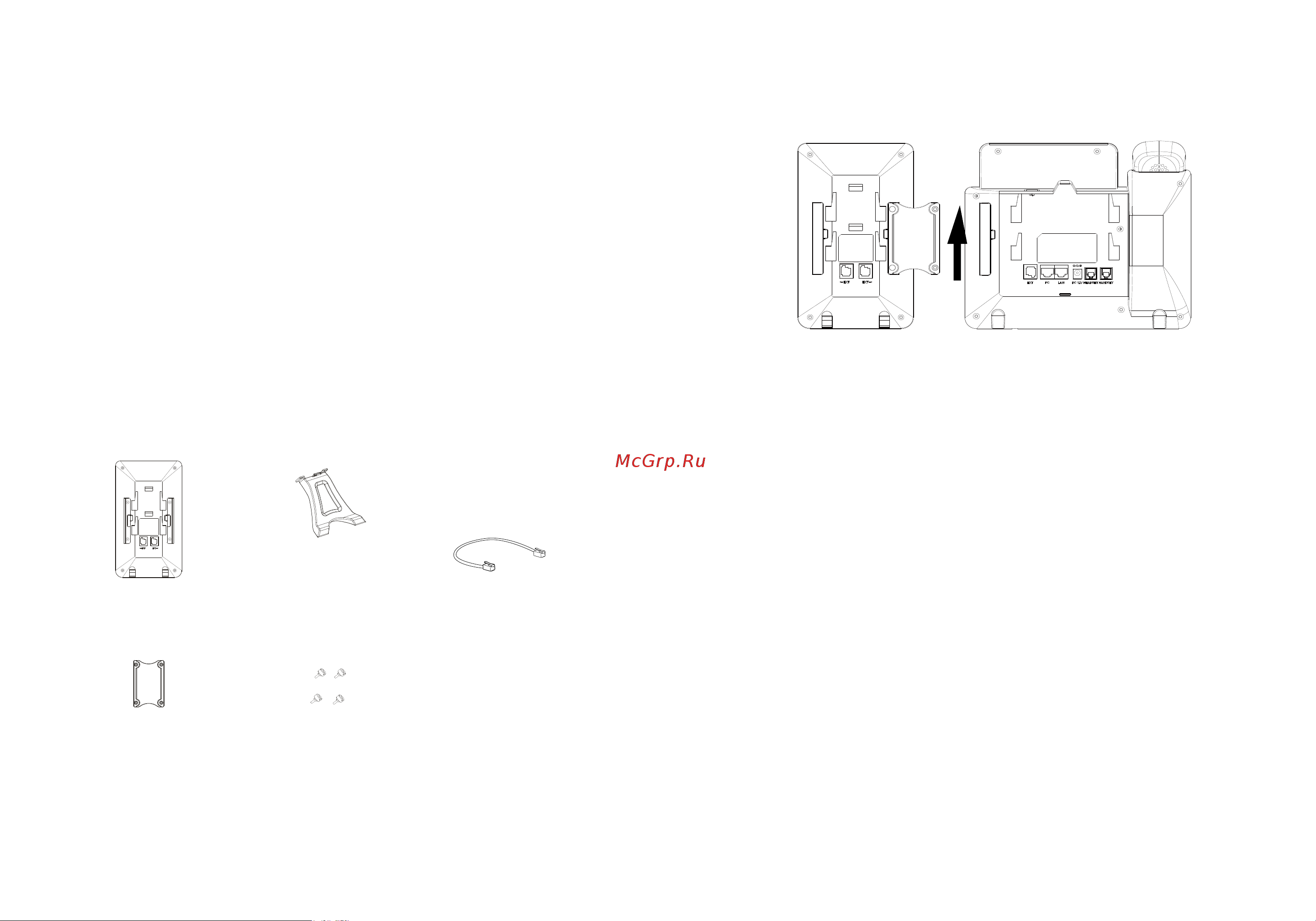

GXP2200EXT Package Content:

Installing GXP2200EXT:

1. On the back of GXP2170 and GXP2200EXT there are slots for the connec-

tor plate. Attach the connector plate between the slots for GXP2170 and GX-

P2200EXT;

2. Apply the screws provided and securely tighten them in (see Figure in this

page);

3. Connect GXP2200EXT Board to GXP2170 via the EXT port using the RJ11-

RJ11 cable provided;

4. Install the phone stand on GXP2170 and GXP2200EXT;

5. Power up the GXP2170. The GXP2200EXT will show the booting up screen

with version information and connecting status;

6. After successfully booting up, GXP2200EXT will stay in idle. Press and hold the

Left button for 3 seconds to check the version information and status.

1 X GXP2200EXT Board

1 X GXP2200EXT Stand

1 X RJ11-RJ11 Cable

1 X GXP2200EXT

Connector Plate

4 X Screws

Note: GXP2200EXT is an additional accessory for the GXP2170 and is not in-

cluded in the GXP2170 box.

GXP2200EXT is an ideal solution for the busy enterprise environment looking to

add the ability to receive and dispatch calls efciently. Each extension module has

20 programmable buttons, Left and Right buttons, supporting 40 Multiple Purpose

Keys to be congured. GXP2170 supports up to 4 extension modules, adding 160

fully programmable phone extensions to the phone.

GXP2170 EXTENSION MODULE

GXP2200EXT:
