WORK DECO PAR-16 [2/4] Technical specifications

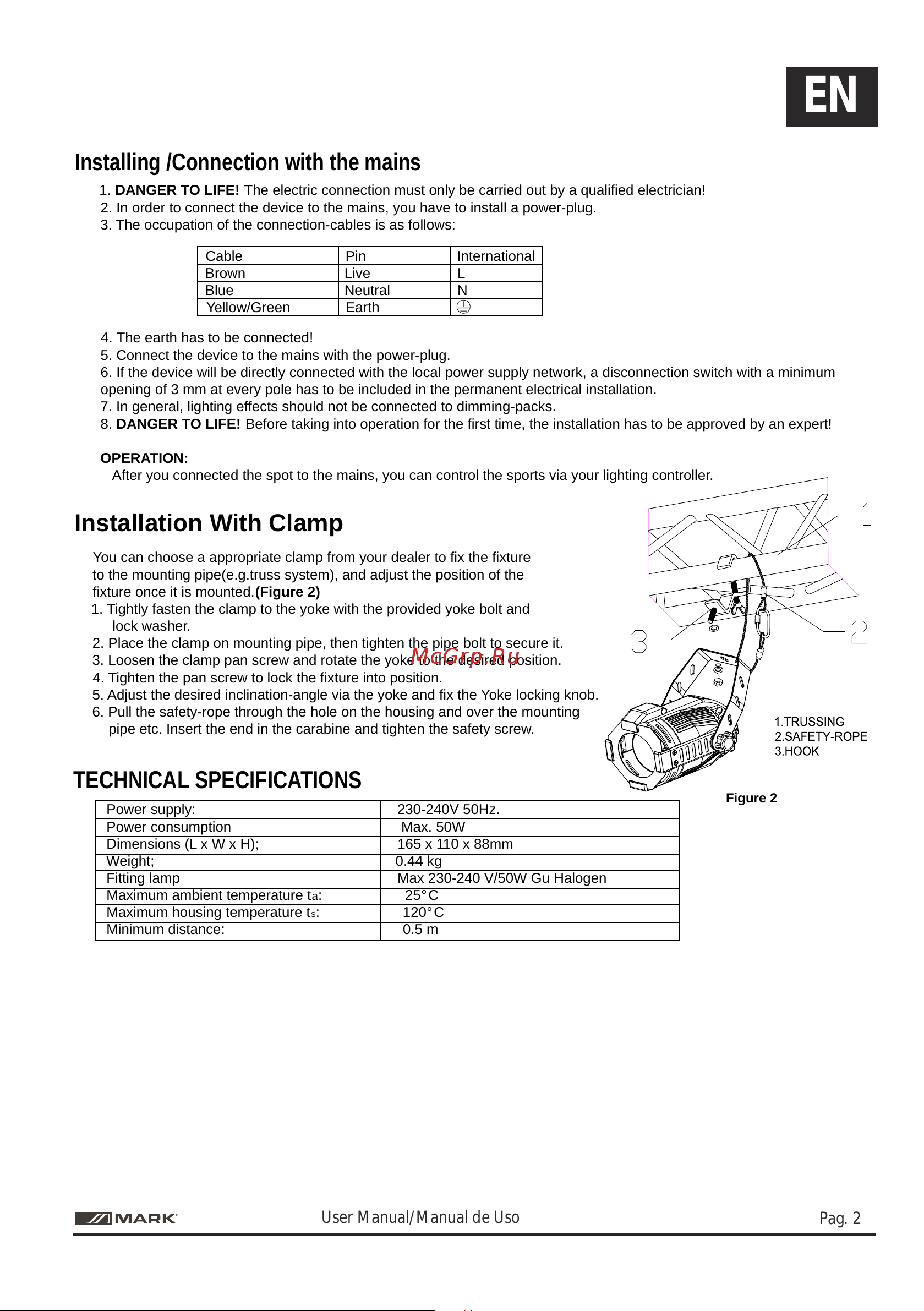

Installation With Clamp

You can choose a appropriate clamp from your dealer to fix the fixture

to the mounting pipe(e.g.truss system), and adjust the position of the

fixture once it is mounted.(Figure 2)

1. Tightly fasten the clamp to the yoke with the provided yoke bolt and

lock washer.

2. Place the clamp on mounting pipe, then tighten the pipe bolt to secure it.

3. Loosen the clamp pan screw and rotate the yoke to the desired position.

4. Tighten the pan screw to lock the fixture into position.

5. Adjust the desired inclination-angle via the yoke and fix the Yoke locking knob.

6. Pull the safety-rope through the hole on the housing and over the mounting

pipe etc. Insert the end in the carabine and tighten the safety screw.

1. DANGER TO LIFE! The electric connection must only be carried out by a qualified electrician!

2. In order to connect the device to the mains, you have to install a power-plug.

3. The occupation of the connection-cables is as follows:

Cable Pin International

Brown Live L

Blue Neutral N

Yellow/Green Earth

4. The earth has to be connected!

5. Connect the device to the mains with the power-plug.

6. If the device will be directly connected with the local power supply network, a disconnection switch with a minimum

opening of 3 mm at every pole has to be included in the permanent electrical installation.

7. In general, lighting effects should not be connected to dimming-packs.

8. DANGER TO LIFE! Before taking into operation for the first time, the installation has to be approved by an expert!

OPERATION:

After you connected the spot to the mains, you can control the sports via your lighting controller.

Installing /Connection with the mains

Power supply: 230-240V 50Hz.

Power consumption Max. 50W

Dimensions (L x W x H); 165 x 110 x 88mm

Weight; 0.44 kg

Fitting lamp Max 230-240 V/50W Gu Halogen

Maximum ambient temperature t

: 25°C

Maximum housing temperature t

: 120°C

Minimum distance: 0.5 m

TECHNICAL SPECIFICATIONS

Figure 2

User Manual/Manual de Uso

Pag. 2
