6
User guide addendum V2 Ui24R
Patching Hardware points

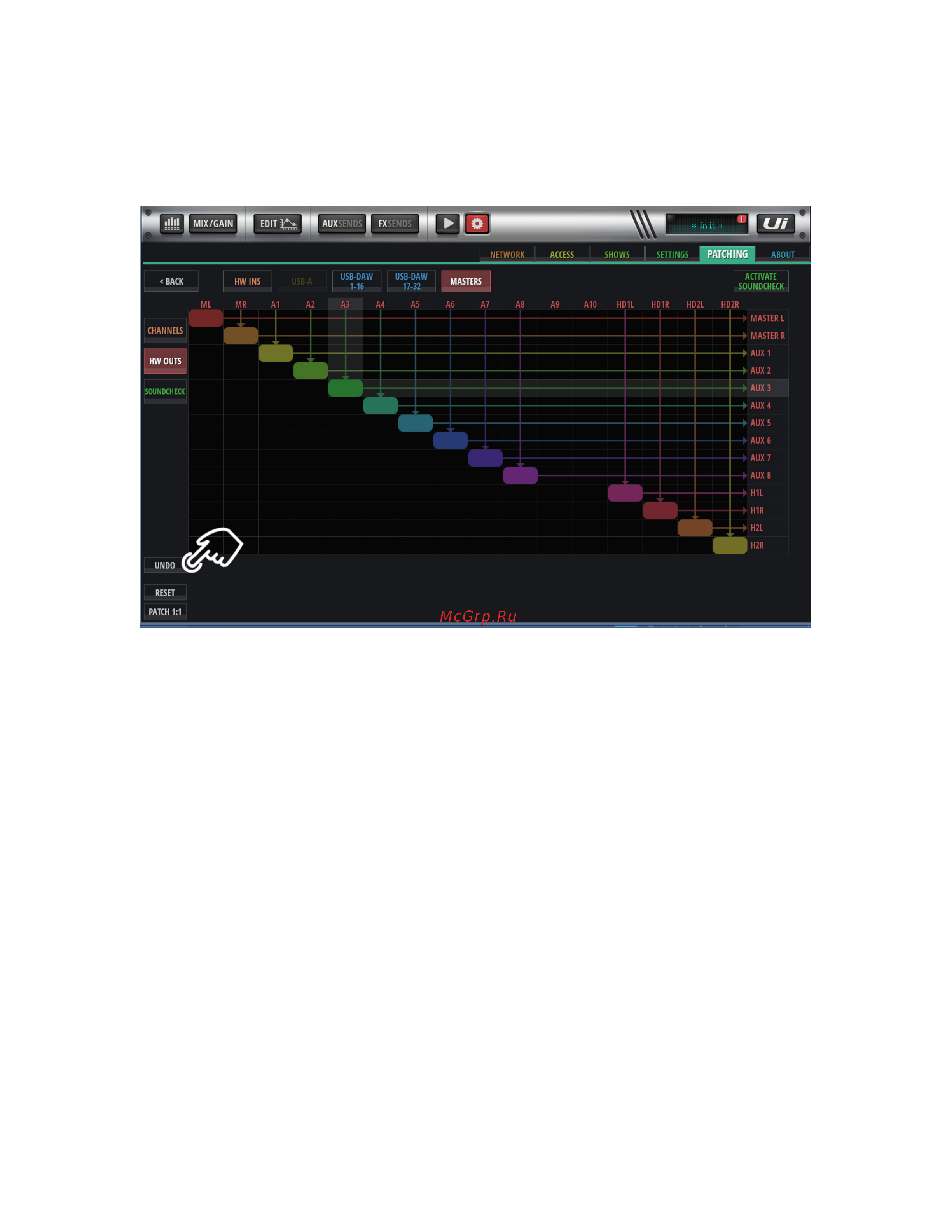

By default the patch matrix hardware outputs are patched to the master DSP outputs as per
bellow.
The top row contains all the DSP outputs (MASTERS)
The right hand side row (HW OUTS) contain the physical hardware outputs of the Ui24R
You are now able to create some complex patching, for example:
Patch AUX or MATRIX outputs to the MASTER Left Right
Patch AUX 9 to headphone 1 in MONO or Stereo with AUX 10
Patch a MATRIX or AUX to both a headphone and XLR output
Connect the SOLO OUTPUT (HD1L HD1R) to XLR outputs for near field Studio monitors.
