Loudspeakers are to be install by qualiﬁed personnel, respecting all safety standards.

Loudspeakers are to be installed securely.

Make sure the support structure (walls / ceilings) has the necessary mechanical

characteristics for the loudspeaker weight, without the risk of a fall that could damage

things or cause an injury.

Use attachments elements suitable for walls / ceilings (e.g. screw anchors for bricks, screw

anchors for concrete, etc.).

a) HORIZONTAL MOUNTING WITH U BRACKET

Necessary optional accessory:

- AC NC06 H-BR (for the C 3106-96 and C 3106-126 models)

- AC NC08 H-BR (for the C 3108-96 and C 3108-126 models)

- AC NC10 H-BR (for the C 3110-96 and C 3110-126 models).

Fix the U bracket to the wall / ceiling through at least 4 lateral wall plugs (max. M8) plus

a central one (max. M10).

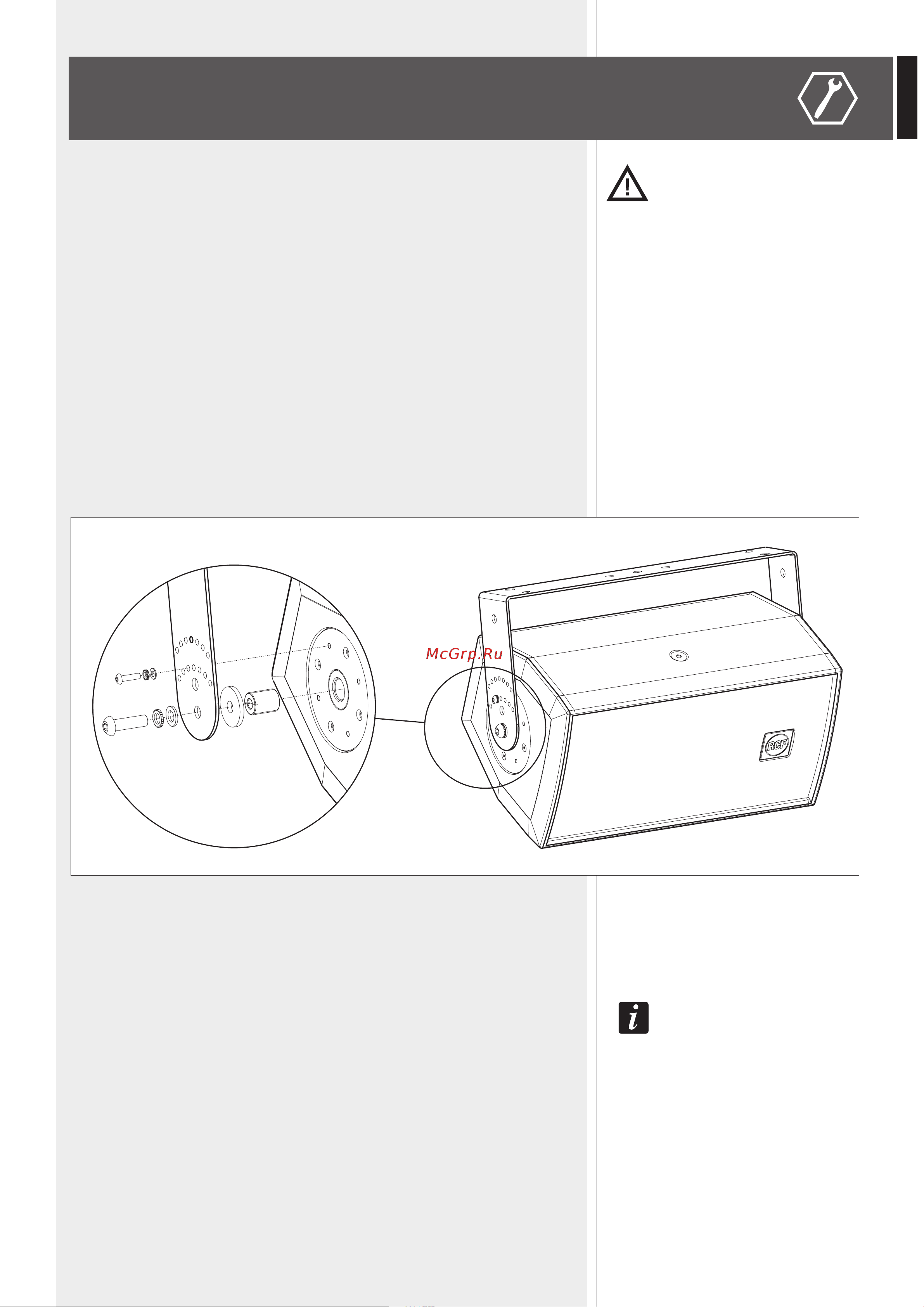

Mount the U bracket to the loudspeaker by tightening the two M10x35 bolts into the two

central holes of the multiplates, as shown in the ﬁgure below.

As an alternative, it is possible to install the loudspeaker a bit less prominent, thanks to the

U bracket inner holes. Before tightening the two M10 bolts, adjust the loudspeaker vertical

tilt and then ﬁx it through two M5x20 bolts into one of the 7 small holes of the U bracket.

Note: do Not tilt the loudspeaker upwards!

iNstead of simple m10 bolts, it is possible to use the iNcluded kNobs (haviNg m10 bolts).
