3.3 KARA downfill option

In both K1 operating modes, FULL RANGE and EXTENDED, it is possible to install a KARA

line source as a downfill

system for the main K1 system.

The KARA enclosure is driven by the LA8 amplified controller with a dedicated preset. This preset features a high-pass

filter at 100Hz for the low section, along with specific delay settings, in order to optimize the acoustic coupling between

the KARA and K1 line sources.

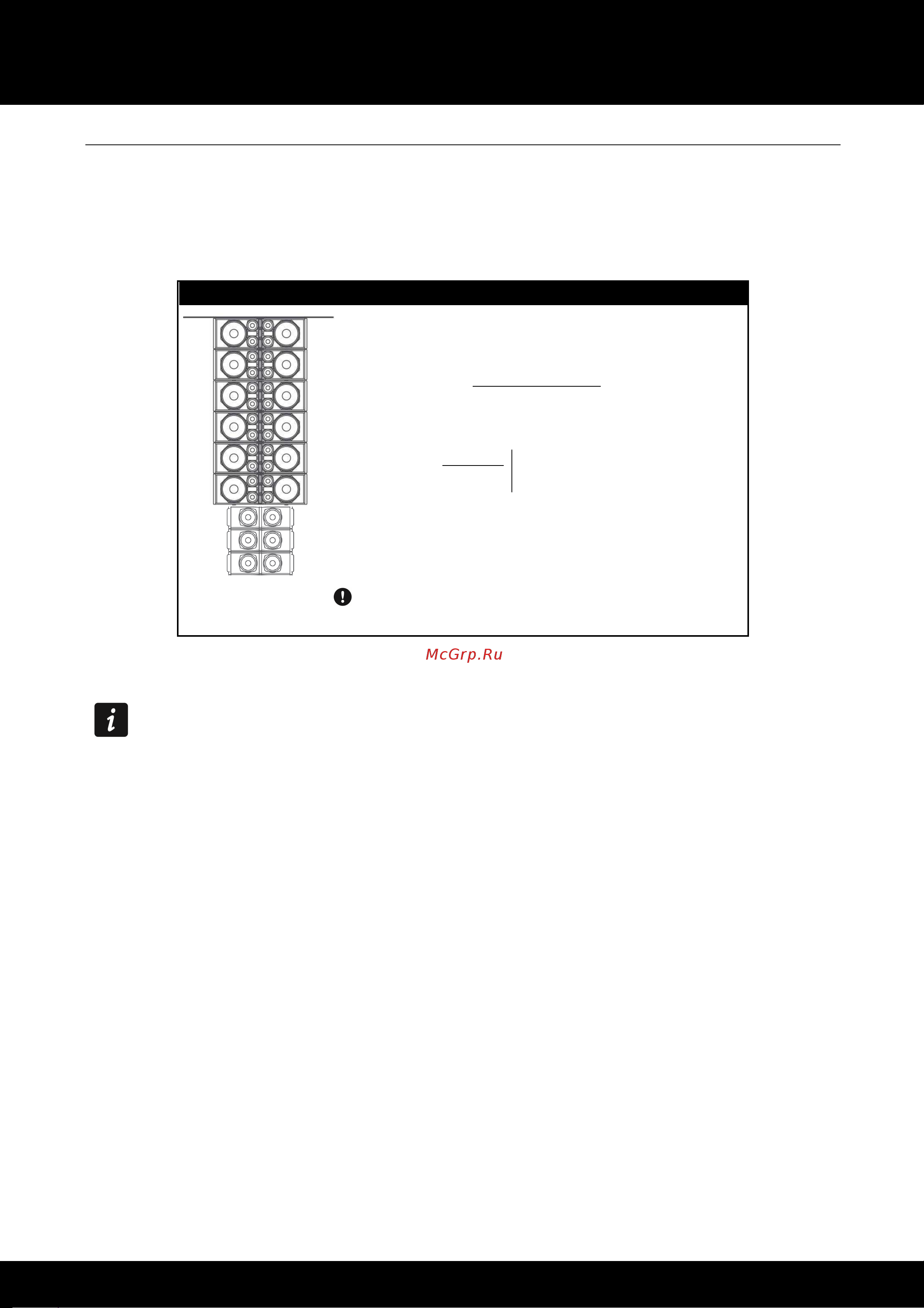

KARA line source as a DOWNFILL system for K1 line source

KI array in line

with KARA array

Optimal KARA array

3 or 6 KARA enclosures

Enclosure

KARA

[PRESET]

 [KARADOWNK1]

The other system enclosures (K1, K1-SB, SB28) are driven

according to the chosen operating mode for the KI main system.

Using the KARA system

Refer to the KARA SYSTEM user manual for the operating modes of KARA as a main system and the

KARA loudspeaker connection.
