ARCSWIFO_UM_EN_1-0
w w w . l - a c o u s t i c s . c o m
9
99
9

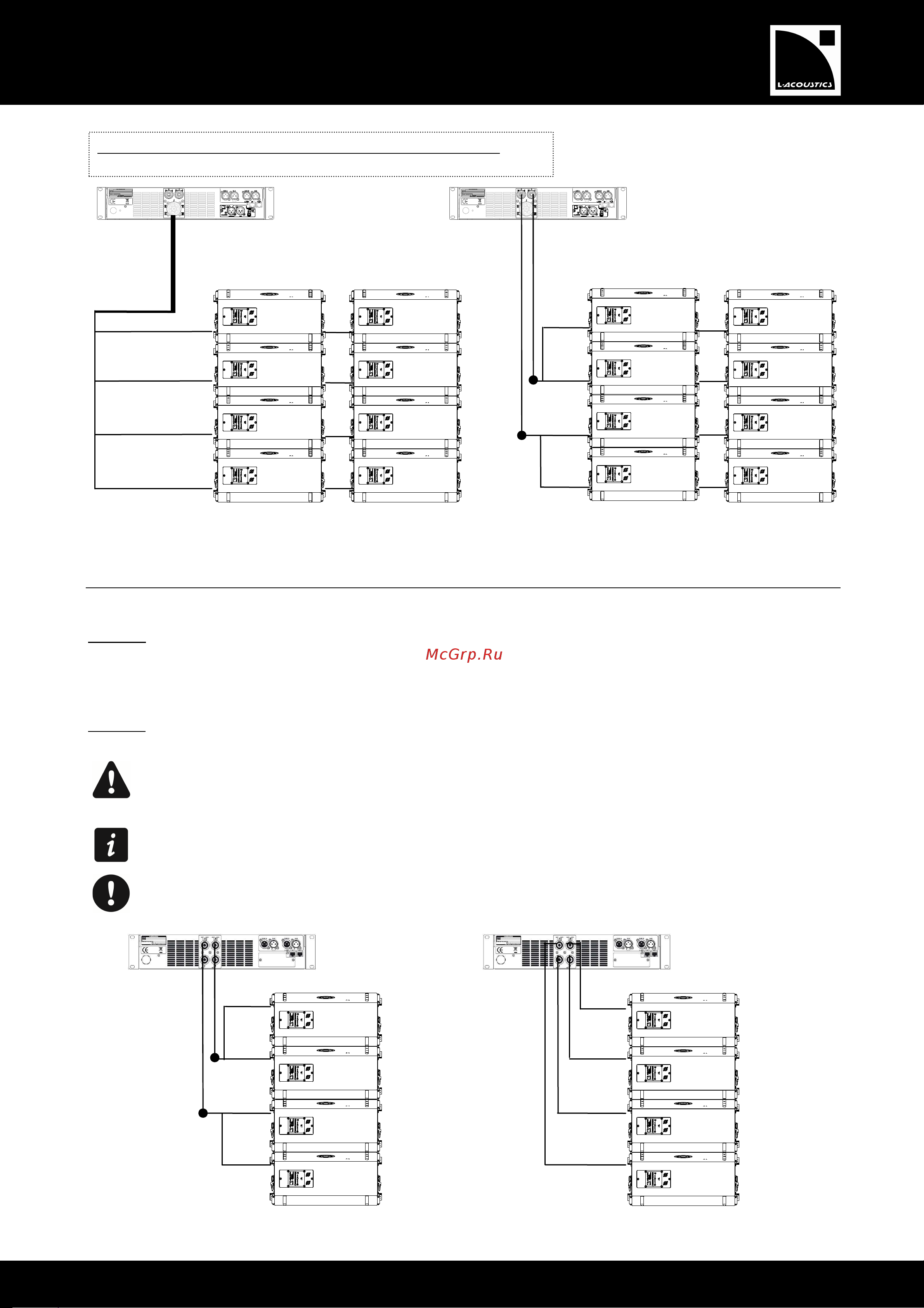

Connecting 8 enclosures (ARCS
®
WIDE, ARCS
®
FOCUS or SB18m) to one LA8 with the DOSUB-LA8
4.3 Connection to LA4
To cable the ARCS
®
WIDE/FOCUS or the SB18m
with the LA4 amplified controller, two options are available:
Option A:
Connect an SP cable (SP.7, SP5, SP10 or SP25) to the OUT1connector of the LA4, and use the SP-Y1 cable to split
the audio signals into two channels, each one feeding one enclosure. The CC4FP adaptor allows interfacing the SP and
SP-Y1 cables. Apply the same cabling scheme with the OUT3 connector to connect two more enclosures.
Option B:
Use an SP cable (SP.7, SP5, SP10 or SP25) to connect one similar enclosure to each of the four LA4 output channels.
Maximum of 4 enclosures per LA4
1 ARCS
®
WIDE/FOCUS or 1 SB18m can be connected to each output channel on the LA4.
Therefore, a single LA4 amplified controller can drive up to 4 SB18m subwoofers.
Impedance load
8 Ω for 1 enclosure (ARCS
®
WIDE/FOCUS or SB18m).
Subwoofer array in CARDIOID configuration
The reversed sub must be connected to OUT 1.
Connecting 4 enclosures (ARCS
®
WIDE, ARCS
®
FOCUS or SB18m) to one LA4
-
Y1
SP
-
Y1
S
P
SP
SP
SP
SP
(Option A)
(
Option B
)
DO.7, DO10
or DO25
DOSUB
-
LA8
SPK 1
SPK 2
SPK 3
SPK 4
SP
SP
SP
SP
Corresponding DOSUB-LA8 SpeakON
®
to LA8 output channels:
SPK 1 = OUT 1
;
SPK 2 = OUT 2
;
SPK 3 = OUT 3
;
SPK 4 = OUT 4
-
Y1
SP
-
Y1
SP
(
Option B
)
SP
SP
SP
(
Option A
)
SP
