RCF SUB 9004-AS (13000546) 72036677 [8/20] The rear encoder control and speaker setting

ENGLISH

WARNING

Pushing the rear encoder it is possible to select the following three functions:

- input gain reduction

- speaker delay setting

- selection of a speaker preset

Pushing once the rear encoder the gain reduction LED will light up. Now rotating the

encoder counter clockwise it will be possible to reduce the input gain. The gain reduction

will be in steps of 0,1 dB for the ﬁrst 10 dB and than in 1 dB steps.

The maximum reduction is 99 dB.

Pushing a second time the rear encoder the delay LED will light up. Now rotating the

encoder clockwise it will be possible to delay the signal output of the speaker.

The delay is expressed in meter. The delay will be in steps of 0,1 m for the ﬁrst 10 m and

than in 1 m steps. The maximum delay will be 20 meter.

THE REAR ENCODER

CONTROL AND

SPEAKER SETTING

INPUT GAIN REDUCTION

SPEAKER DELAY SETTING

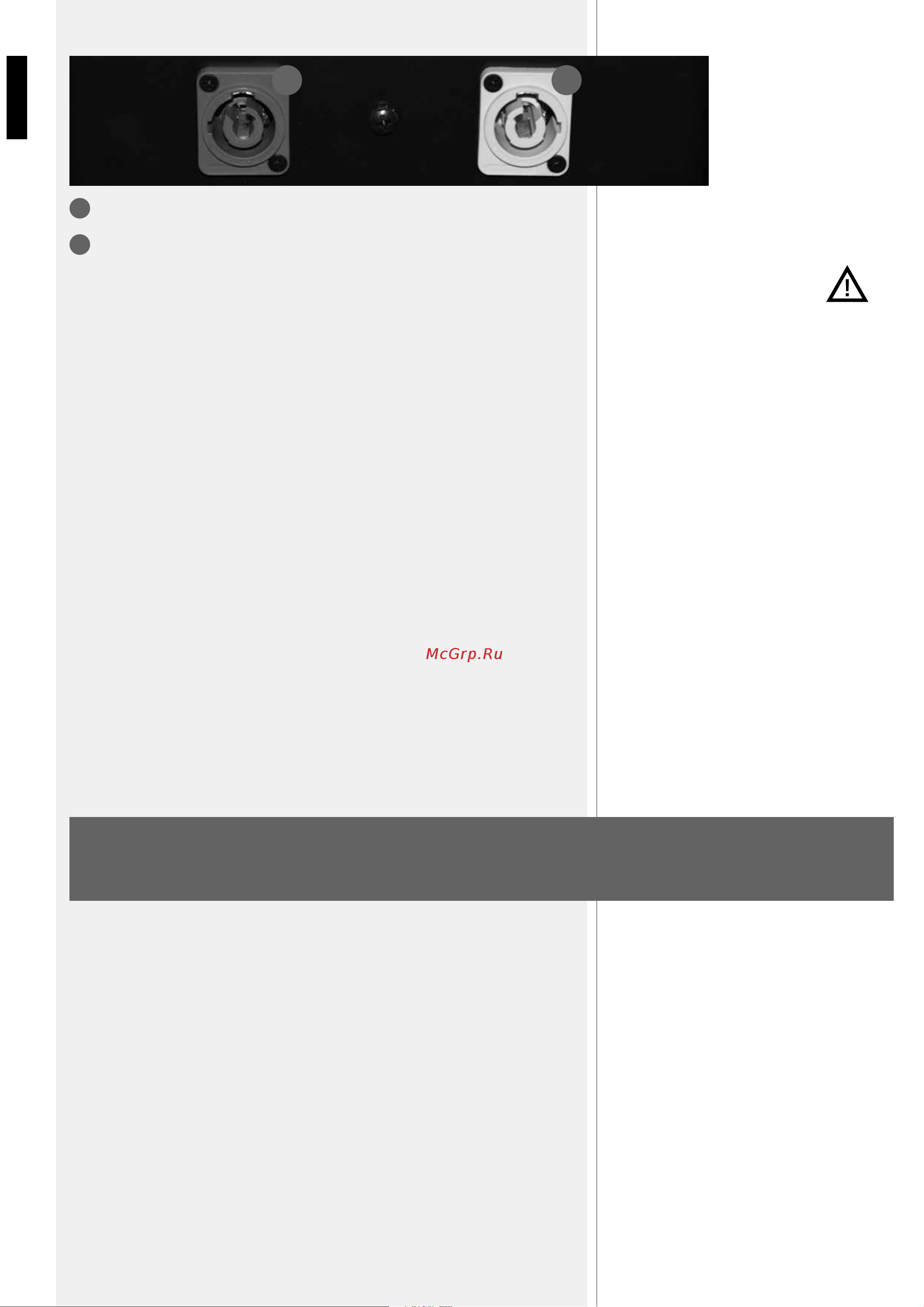

AC INPUT. Powercon locking 3-pole AC mains.

AC OUTPUT. Powercon locking 3-pole AC mains output.

WARNING: the Powercon connector is used to disconnect the system from the power supply

network. It shall be easily accessible after the instillation and during the use of the system.
