ENGLISH

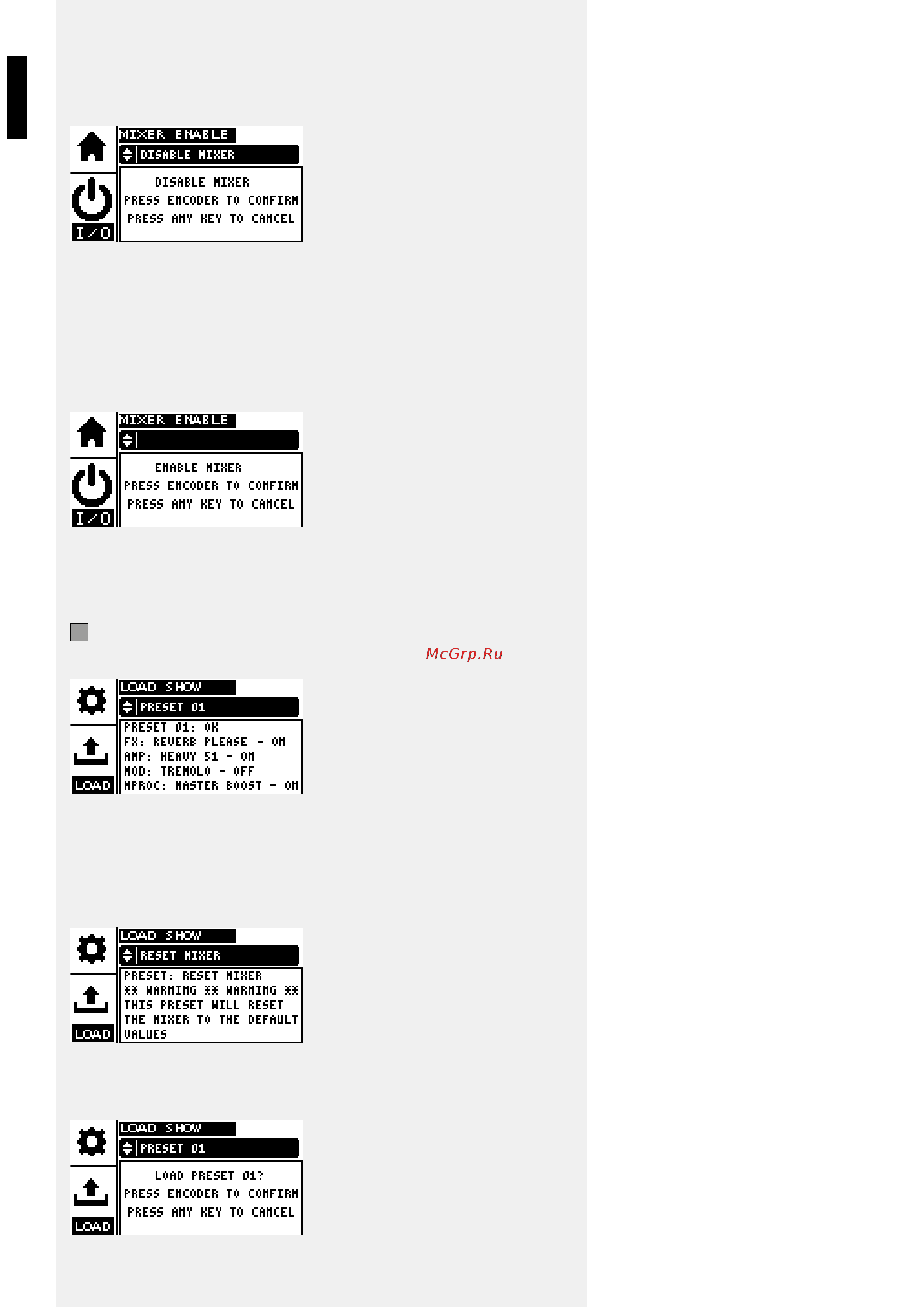

This menu allows to disable the mixer in an EVOX JMIX8 system. Turn the EDIT encoder

counterclockwise to change the menu line from MIXER ENABLE to MIXER DISABLE, press

the EDIT encoder, a display message will appear:

DISABLE MIXER – PRESS ENCODER TO CONFIRM – PRESS ANY KEY TO CANCEL

By pressing the EDIT encoder again, the mixer is disabled and the LCD display backlight

will switch off in 3 seconds.

Now the mixer is disabled, and the EVOX JMIX8 can be used like a conventional active

speaker using the XLR connection located on the subwoofer back panel as mono input.

To enable the mixer again, turn clockwise the EDIT encoder, the display will switch on

again, press the EDIT encoder and a display message will appear:

ENABLE MIXER – PRESS ENCODER TO CONFIRM – PRESS ANY KEY TO CANCEL

Pressing the EDIT encoder the EVOX JMIX8 mixer is enabled again and the system turns to

full operation.

SYSTEM button:

Pressing the button once gives access to the LOAD SHOW page;

It is possible to load a pre-saved SHOW from the dedicated menu. A SHOW preset includes

all the mixer parameters except the INPUT and MAIN level. These parameters are absolute

values and can be controlled via pot knobs only. The possible selection is between 10

presets (01 to 10) plus a special preset n°11 called RESET MIXER. Loading the RESET

MIXER preset brings the mixer to a default setting.

To load a preset rotate the EDIT encoder clockwise, select the chosen preset and conﬁrm

the selection pressing the EDIT encoder. A message will appear:
