ENGLISH

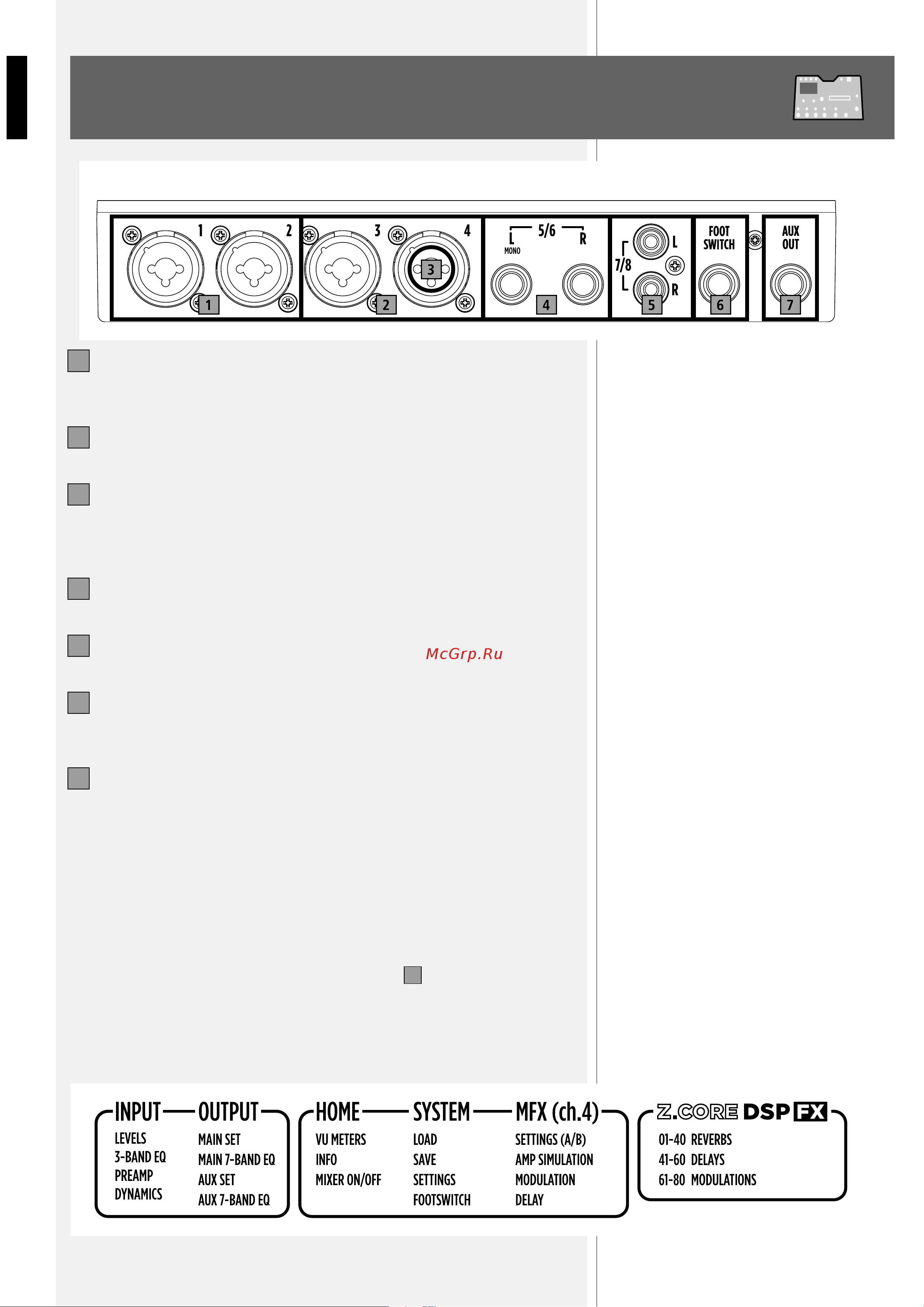

MIC/LINE Combo inputs 1 and 2 are provided with switchable 48V Phantom Power;

connect here microphones (XLR) or line sources (TRS jack). It is possible to connect here

Condenser or Electret microphones thanks to the available 48V phantom power.

MIC/LINE Combo inputs 3 and 4; connect here dynamic microphones (XLR) or line

sources (TRS jack).

HiZ LINE input. LINE input 4 is provided with selectable Hi Impedance input, which

offers optimum reproduction of a guitar or bass guitar even if with passive pick up. The

instrument connected to Line input 4 can take advantage of the MFX section (see section

16 of this manual).

Stereo Line input 5 and 6; connect a stereo line source to these TS Jack pair. If

connected alone the input line 5(L) behaves like a mono input.

Stereo Line input 7 and 8; connect a low level (-10dBV) stereo line source to these

RCA unbalanced inputs.

Footswitch; it allows usage of a dual footswitch, one function can be assigned on the

tip contact and one to the ring contact. Find all the possible assignable function in the

section 16 of the mixer surface description.

AUX OUT; this is a balanced output for the auxiliary send available on each input

channel.

DISPLAY MENU INFORMATION

All the functions available on the EVOX JMIX8 system integrated mixer can be operated

from the operating display.

The select buttons: INPUT, OUTPUT, HOME, SYSTEM, MFX, FX give access to all the

parameter pages on the LCD display.

Navigate into the display menu by pressing the PARAMETER SELECT buttons (12) to

select the parameters to edit, and rotate the EDIT encoder [

] to change those values.

Some settings require a push of EDIT encoder to conﬁrm value or function change, and a

display message will appear in this eventuality.

All display pages are usefully shown in the panel silkscreen:

ONBOARD DIGITAL MIXER

INSTRUCTIONS

INPUT PANEL
