+48V ON/OFF: enables or disables +48 V phantom power on MIC inputs 1 and 2.

BLUETOOTH ON/OFF: enables or disables the Bluetooth connection both for audio

streaming and control.

STARTUP DEFAULT ON/OFF: if this box is set to OFF when the system is switched on, the

mixer keeps its last status when turned off. If the box is set to ON, the mixer is switched

on with a default conﬁguration.

The BACKLIGHT and CONTRAST boxes permit to set brightness and contrast of the LCD

display.

Pressing the SYSTEM button again gives access to the FSW page dedicated to assign

footswitch functions (see section 6 in the input panel description).

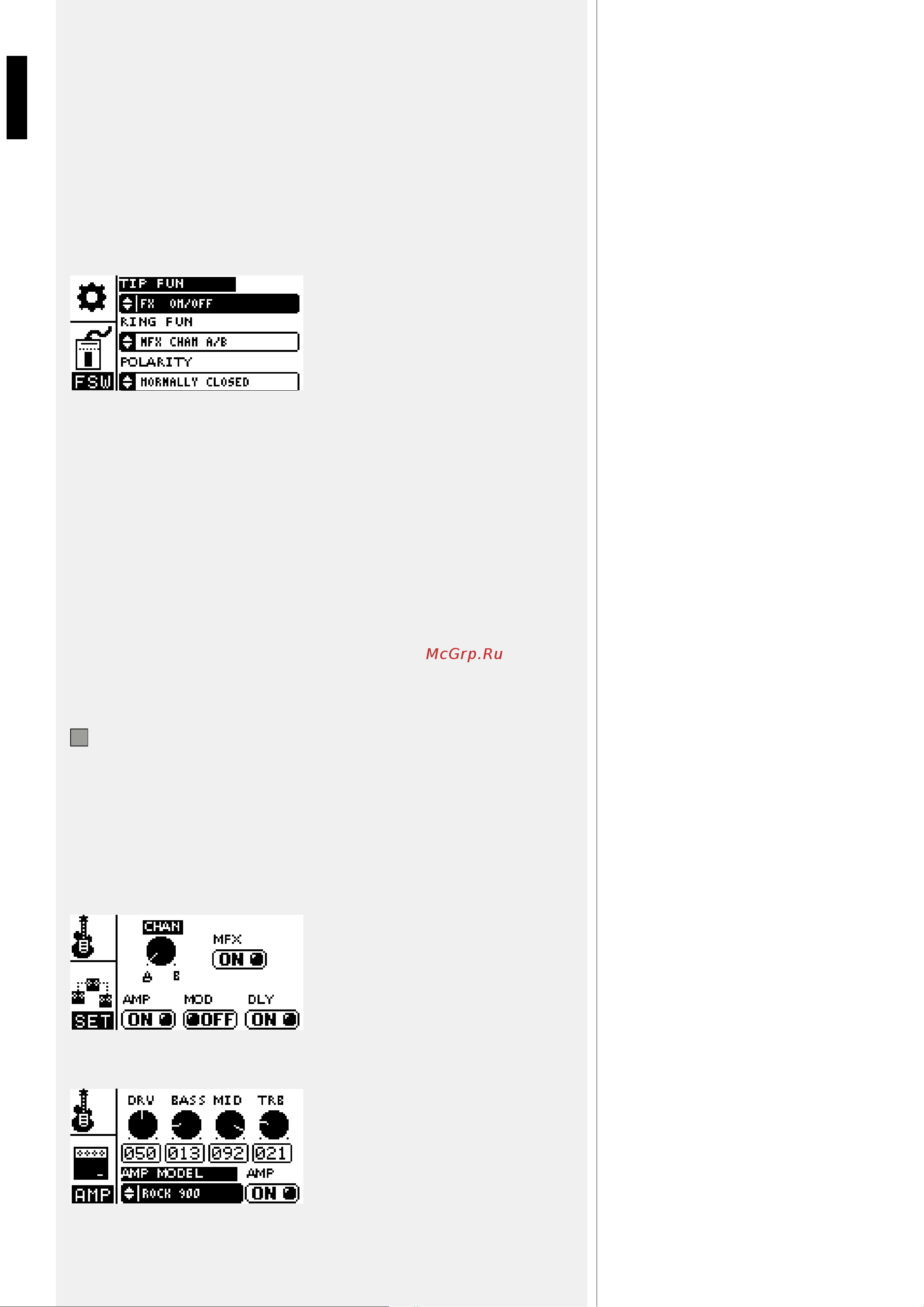

FSW page:

The FSW page is composed of three menus: TIP FUN, RING FUN, POLARITY

1. TIP FUN (Tip jack contact function) including:

- MUTE OUTS

- FX ON/OFF

- MFX CHAN A/B

- MFX ON/OFF

- MFX AMP ON/OFF

- MFX MOD ON/OFF

- MFX DLY ON/OFF

- SHOW NEXT

- SHOW PREV

- MASTER PROC ON/OFF

2. The RING FUN (Ring function) provides the same selections as for TIP FUN menu.

3. A POLARITY menu allows to change the initial status of the connected footswitch

between NORMALLY CLOSED and NORMALLY OPEN.

MFX button:

The MFX button controls the menu related to the MFX chain present on LINE input 4.

Two local settings of the whole MFX are available, called Channel A and B. It is possible

to switch between A and B using the footswitch (see dedicated function).

The SET page allows to select between FX channel A or B with the dedicated knob icon.

MFX ON/OFF box allows to turn on and off the MFX chain. The AMP, MOD, DLY ON/

OFF boxes located in the bottom line of the display turn on and off individually the

components of the MFX chain:

AMP (Guitar & Bass amp simulator), MOD (modulations effects), DLY (delay).

Pressing the MFX button again gives access to the AMP page:
