RCF HDL 15-AS [10/20] The hdl15 a fly bar

ENGLISH

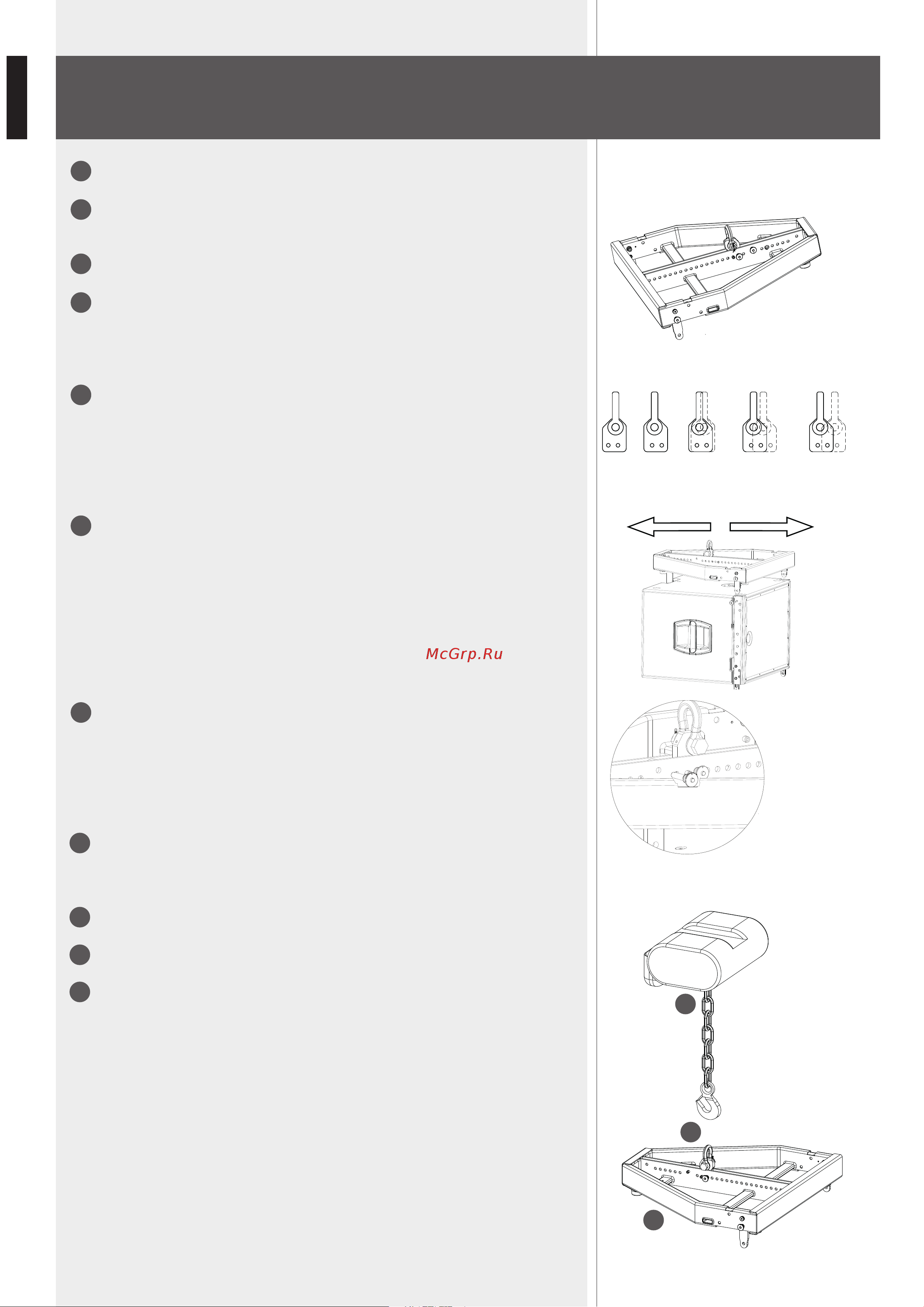

THE HDL15-A FLY BAR

FEATURES:

FRONT FLYING BRACKET. Front mounting.

QUICK LOCK PIN HOLE. Front mounting (to be used to lock the front bracket before

installation).

FRONT BRACKET - TRANSPORT HOLES.

CENTRAL PICK UP POINTS.

The pickup is asymmetric and can be ﬁt in two positions (A and B). A position brings the

shackle towards the front. B position allows an intermediate step using the same ﬁxing holes.

Move the pickup bracket in the position suggested by RCF Shape Designer.

Fix the pickup bracket with the two pins on the bracket’s lanyard to lock the pickup.

Check that all the pins are secured and locked.

THE HDL15-A FLY BAR

Rigging the system follow the procedure:

RIGGING CHAIN HOIST.

CERTIFIED SHACKLE.

FLY BAR.

RIGGING PROCEDURE
