ENGLISH

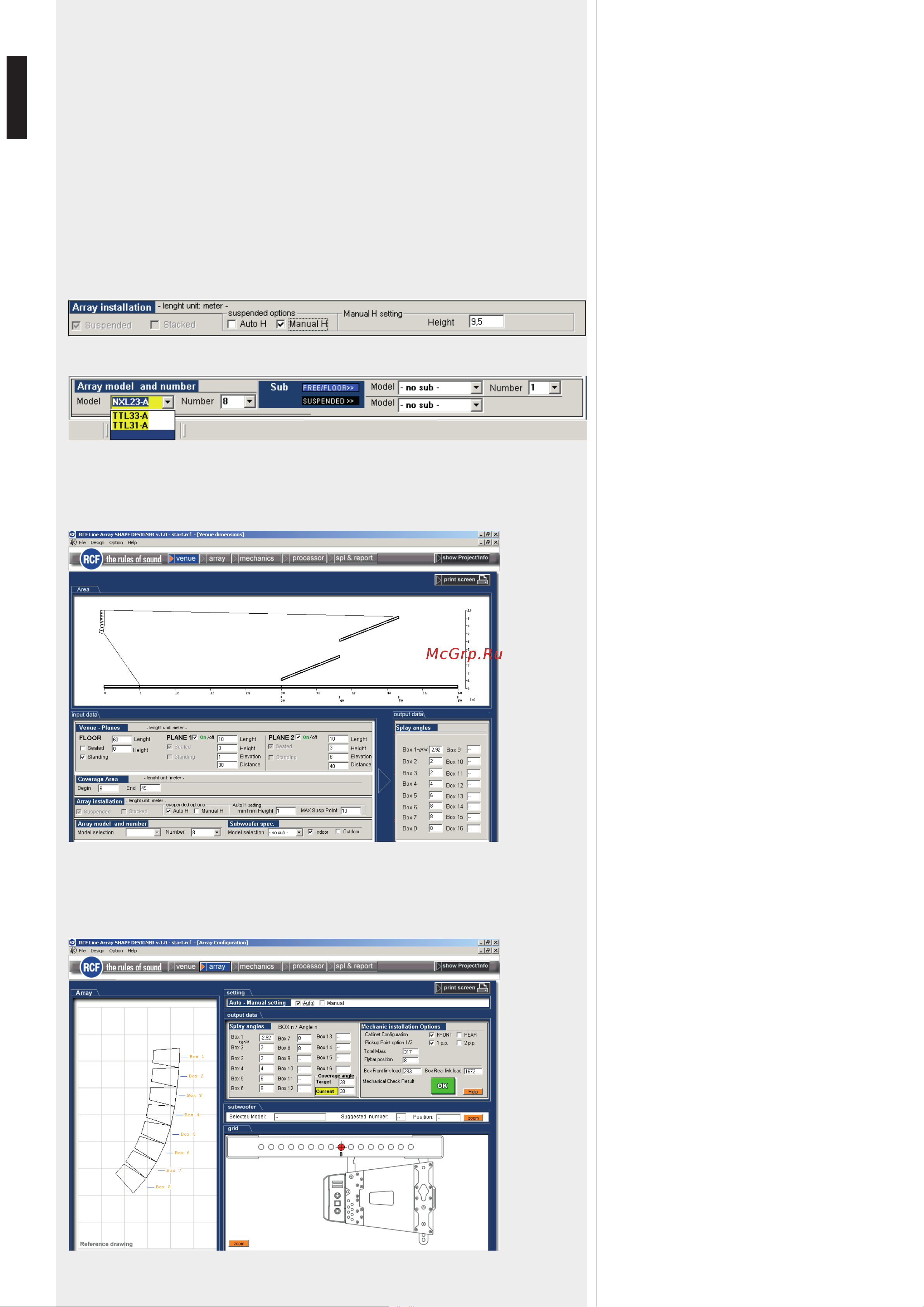

AUTO H SETTING - MIN TRIM HEIGHT

This is the low limit for the array and is deﬁned as the smallest allowable distance from the

lowest point of the array to the ground below

AUTO H SETTING - MAX SUSPENSION POINT

Set this to the maximum array height allowable (usually the highest part of the ﬂying frame).

The maximum pick height is usually chosen to allow for the maximum ﬂying point height

minus a sensible allowance for any shackles, stingers, bridles or ﬂying hooks. 1m should be

allowed for a stinger between each grid ﬂying lug and the relevant motor hook to ensure that

motor chain bags do not rest on the grid or top cabinet and upset its tilt angle.

MANUAL H SETTING

In manual installation mode it is possible to enter the height required for ﬂying the system.

Number of cabinets can be set depending also on cabs availability.

VENUE PAGE

- Graphical representations of the array and the venue

- Aiming splay angle between each pair of enclosures

- Height of the array and trim height to the bottom of the array from the ﬂoor

- Pick Point on the Fly-Bar to achieve the calculated array angle when suspended

- Weight of the array

- Mechanical check result

SUSPENDED MODE

NUMBER OF CABINETS AND

SUBWOOFERS

RCF SHAPE DESIGNER RESULTS

ARRAY PAGE

HDL10-A
