ENGLISH

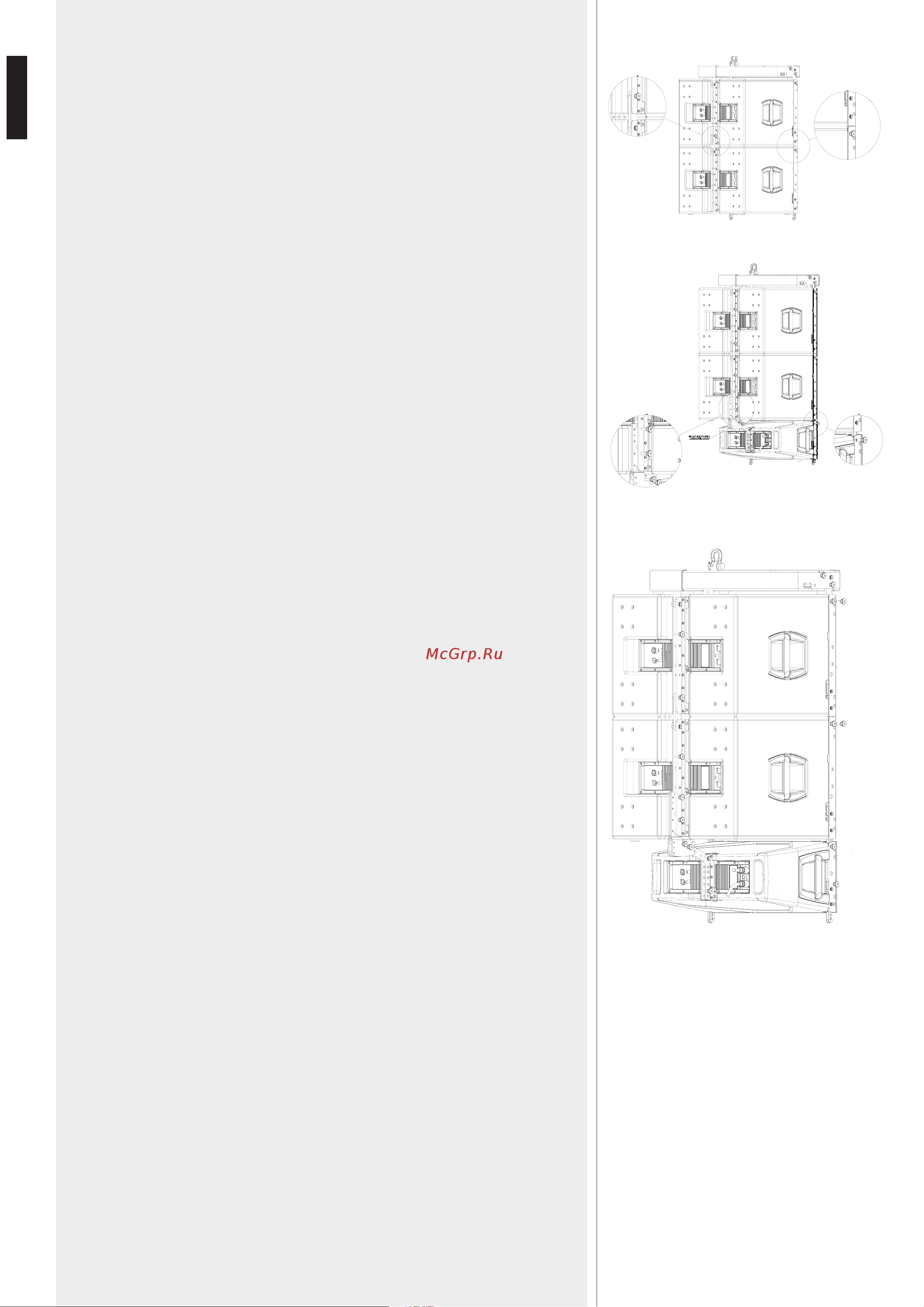

6) Reverse and connect the rear bracket of the second cabinet using the hole.

7) Connect all the other HDL10-A cabinets using the accessory linkbar HDL15 to HDL10A

(P.N. 13360225).

Fix the linkbar P.N. 13360225 to the HDL 15-AS rear bracket using 2 pins (1 on the

subwoofer and 1 on the accessory).

Fix HDL 10-A front to subwoofer brackets using 2 pins.

Fix the HDL 10-A rear bracket to the linkbar P.N. 13360225 using the included 2 pins.

The ﬁrst HDL 10-A module must be parallel to the subwoofer.

This application allows to link a maximum of 8 HDL 10-A.

(2:1)

LINK BAR HDL18

TO HDL20

PART NUMBER 13360225
