K-ARRAY KP52 [14/24] Wiring

KP52/KP102

REV. A14

10. WIRING

11. PROTECTION CIRCUITRY

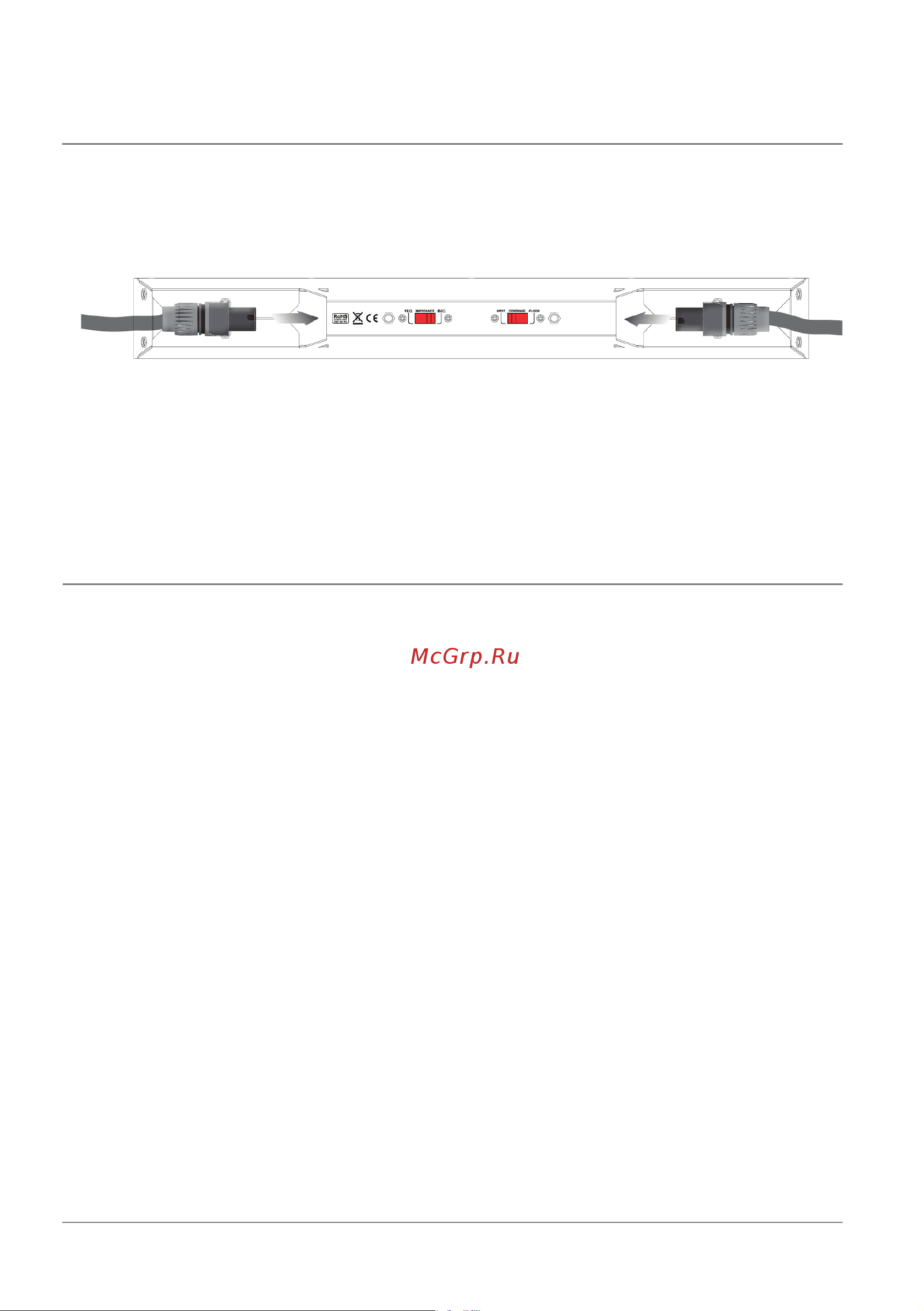

Python KP52 and KP102 internal wiring is designed to pick up audio power signal from pins 1+ / 1- of a NL4

connector. Pins 2+ and 2-, such as pins 1+ and 1-, are directly wired from one socket to the other, so signal

can pass through multiple KP modules without additional external cabling.

Speakers are electrically protected from brief power overloads, within a reasonable range. Overloading the

speaker for extended periods of time can cause damage, so proper system design is strongly advised.
