8. wIRIng

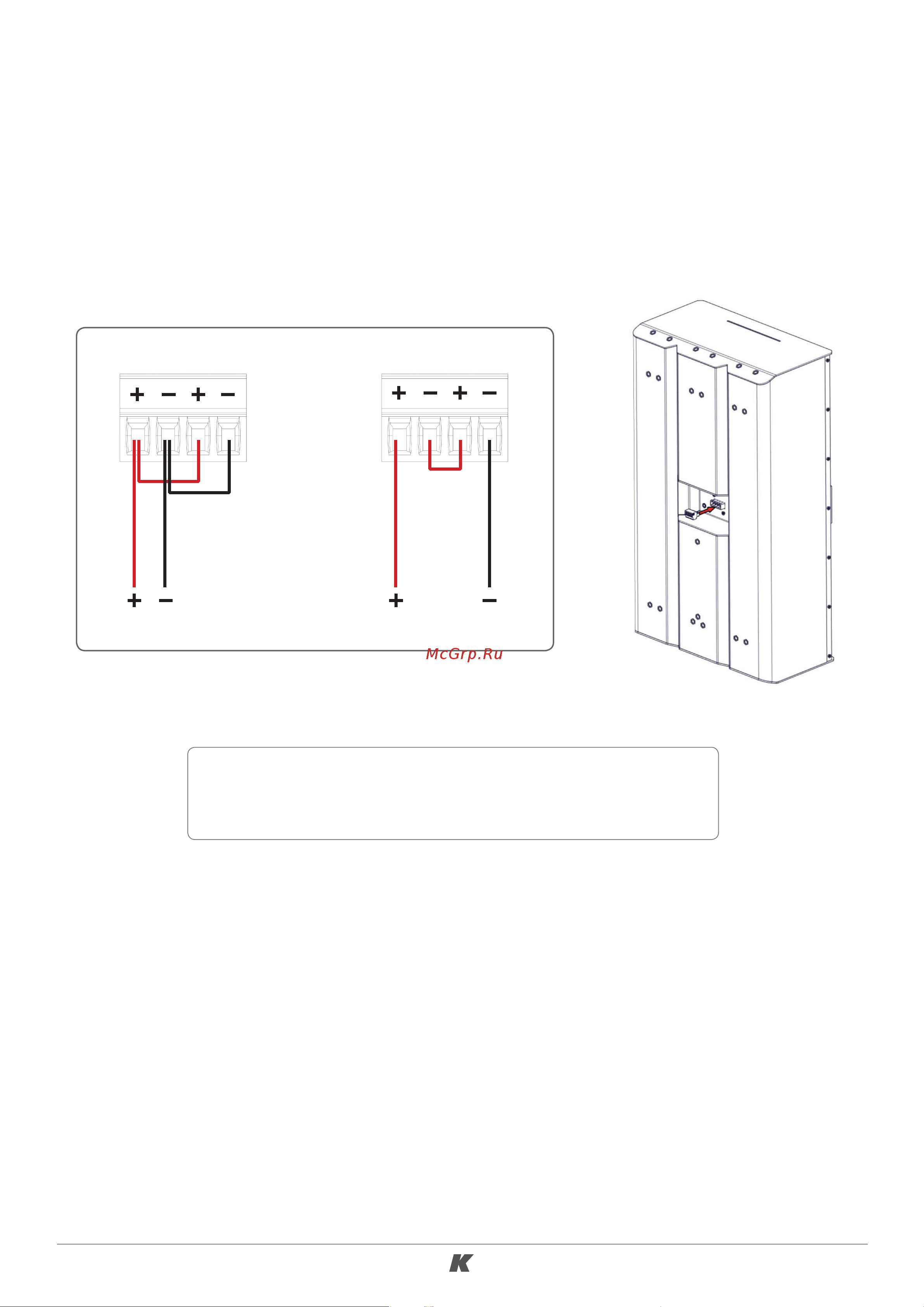

The KU210 is comprised of a neodymium transducer, combined with a 10” passive transducer. The

neodymium transducer features a double voice-coil (8Ω + 8Ω). The two voice coils can be wired in

parallel (resulting in a 4Ω total impedance) or in serial (resulting in a 16Ω total impedance). To do

this, we provide a 4-pin female Phoenix connector where users can make the wiring; then the female

Phoenix connector is plugged into the male Phoenix connector situated at the back of the speaker.

NOTE. The K-array KA84 amplifier can drive up to four

KU210s@16Ω per channel. K-array KA24 amplifier can drive one

KU210@4Ω per channel.
