REV. A

KMT21

The Output page allows users to independently control

the amplitude of the signal routed to the Subwoofer, the

Speaker Output and the XLR DSP Output.

Two Preset pages allow users to load presets stored

on-board. The arrow buttons on the top right corner

of the screen provide access to the Factory and User

preset pages. The arrows are also used to scroll

through, select and load one of the available presets.

The Info page contains information about the current

software and rmware, and the Logical ID of the KMT

module. The Logical ID is automatically assigned

to the KMT unit when connected to a K-Framework

network.

Three Routing pages allow users to manage the rou-

ting of the four input channels to the three outputs

(Subwoofer, Speaker Out and XLR DSP Out) as well

independently set output volume and delay for each

output.

The delay values set in the Routing pages are summed

to the global delay assigned on the Delay page.

The arrow buttons on the top right corner of the scre-

en provide access to individual Routing pages for the

Subwoofer, Speaker Out and XLR DSP Out.

Notes: The XLR DSP page does not provide control

over delay for this output.

OUTPUT PAGE

PRESET PAGES

INFO PAGE

ROUTING PAGES

The Input page allows users to independently manage

the amplitude of all the four input channels

INPUT PAGE

HOME PAGE

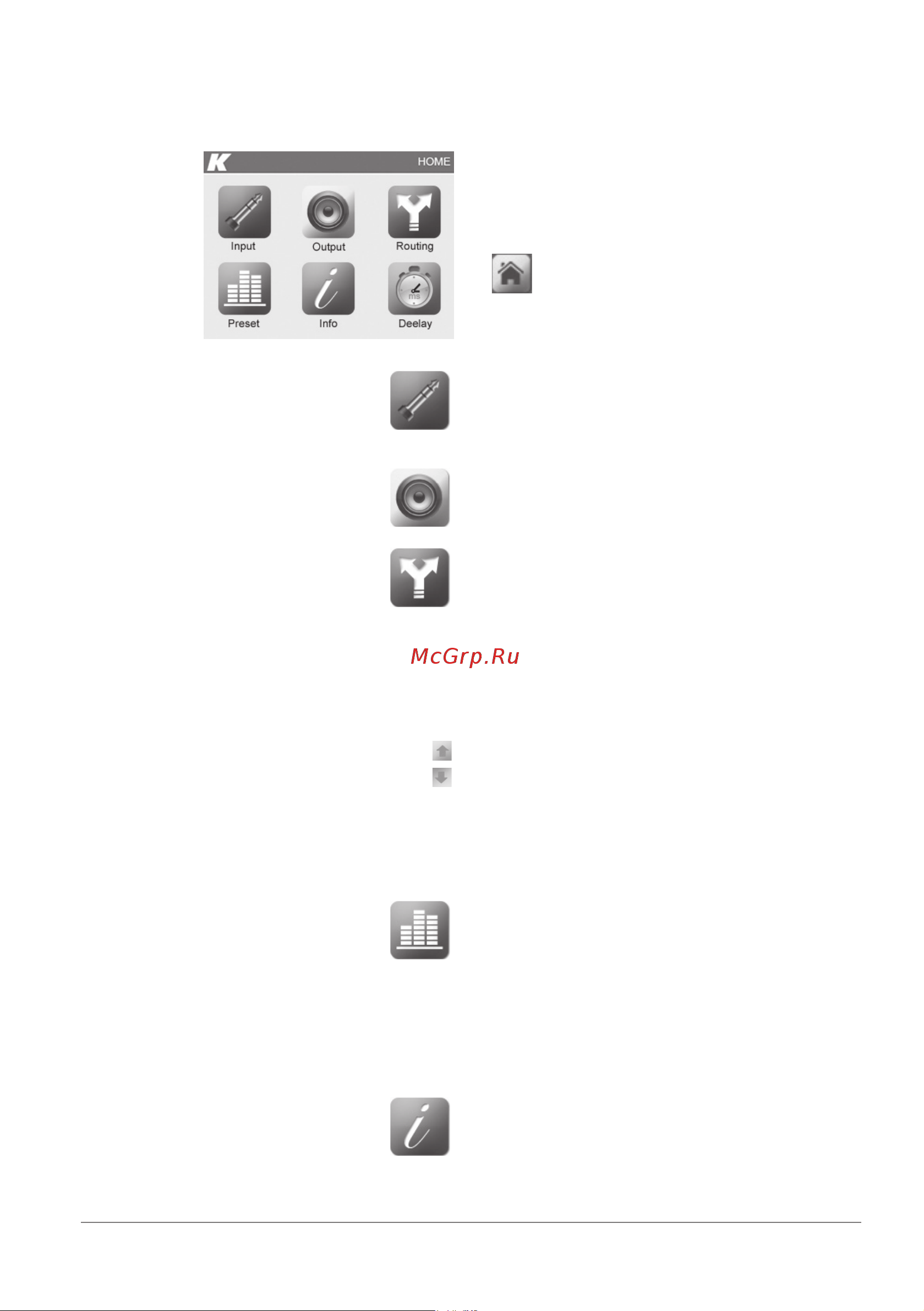

8.5 TOUCH SCREEN FUNCTIONS

To reach the Home page from any other page,

touch the Home button.

The main functions of the onboard DSP can be

managed with the integrated touch screen. Functions

are grouped into six pages, shown as icons on the

Home page.
