K-ARRAY KMT21 [19/28] Allows users to independently manage the eq and gain of the four input channels

REV. A

KMT21

INPUT TAB

Allows users to independently manage the EQ and gain of the four input channels

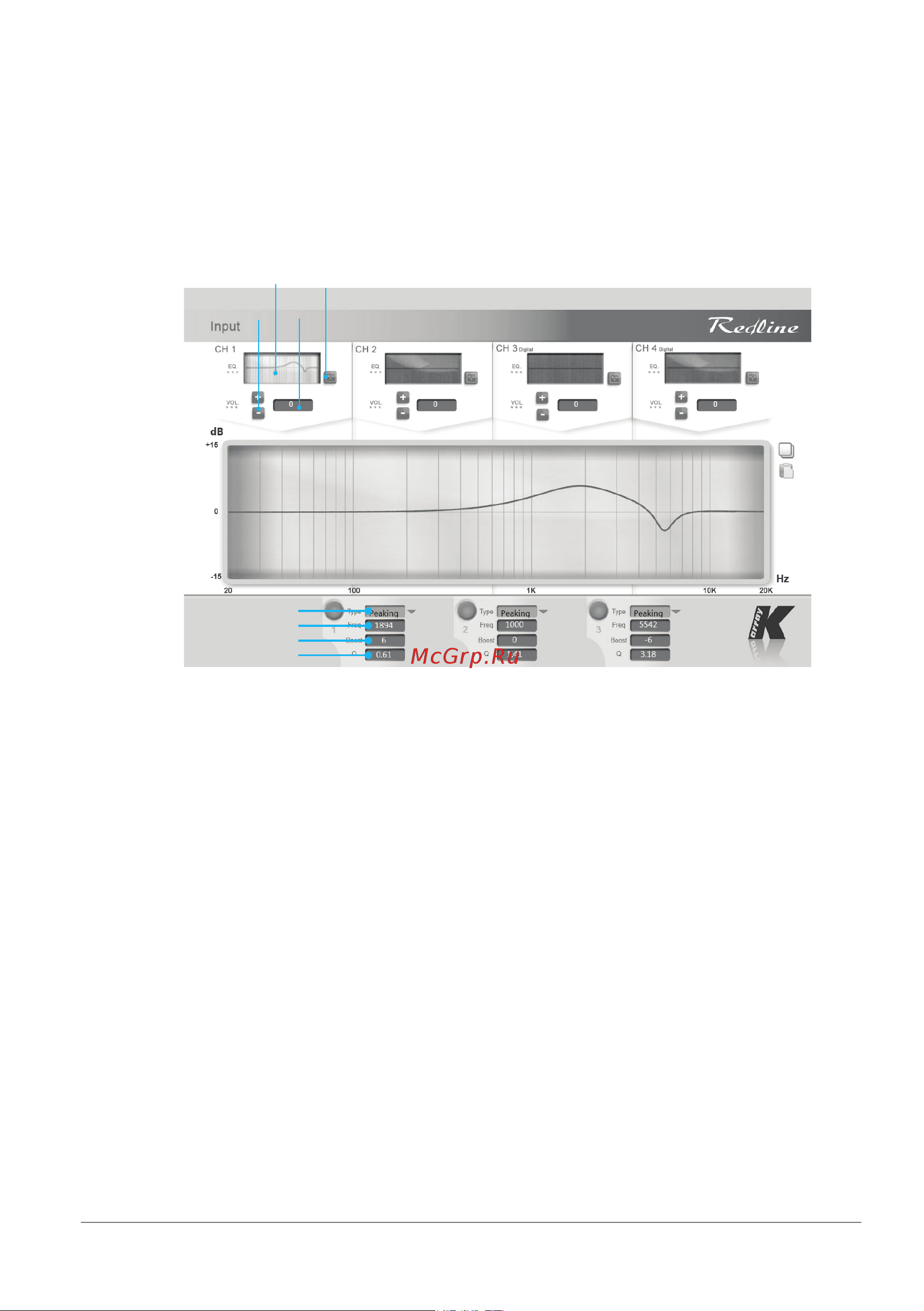

img. D

D1) Frequency response display. Shows the frequency response curve resulting from the filters set in the Input EQ window

(below).

D2) nput EQ window button. Opens the Input EQ window, where users can set three parametric filters for each input channel.

Input Volume buttons. They regulate the amplitude of each input channel

D3) Input Volume buttons. Adjusts the amplitude of the input channel

D4) Input Volume display. Shows the gain or reduction currently applied to the channel. Users can directly set the desired

amount of gain in the Input Volume display, instead of using the Input Volume buttons

D5) Filter type menu

D6) Filter frequency

D7) Filter Q

D8) Filter boost

Input EQ window
