K-ARRAY KMT12 [22/28] Allows users to independently manage the eq polarity gain and limiting threshold of the three output channels

img. G

KMT12/KMT18

REV. A22

OUTPUT TAB

G3 G4 G5

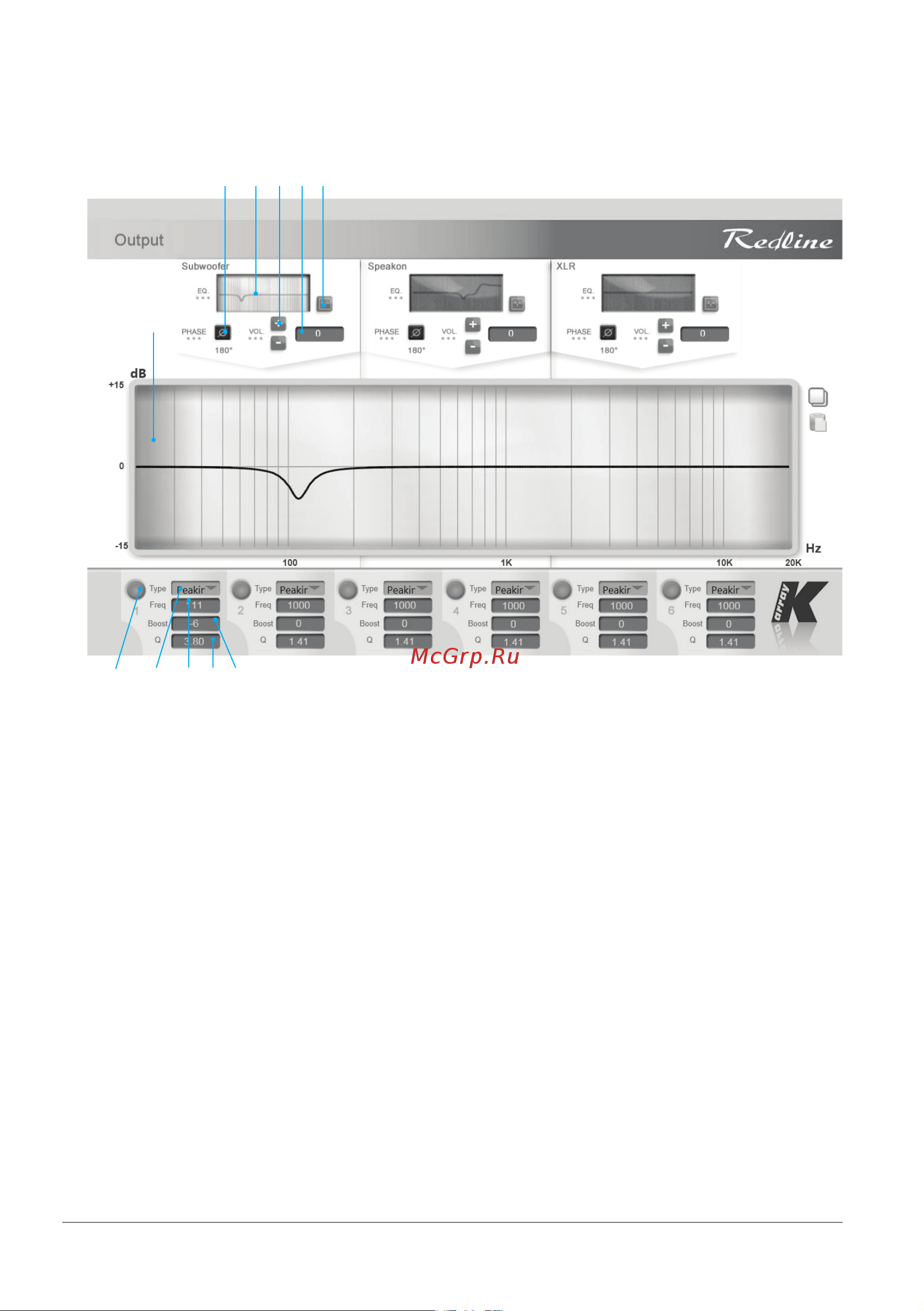

G1) Frequency response display. Show the frequency response curve resulting from the filters set in the Input EQ window.

G2) Output EQ window button. Open the Output EQ window, where users can set up to six parametric filters for each

output channel.

G3) Phase button. Inverts the channel’s signal polarity (180° phase rotation).

G4) Output Volume buttons. Adjusts the amplitude of each output channel.

G5) Output Volume display. Shows the gain boost or reduction currently applied to each output channel. Users can

directly write the desired amount of volume inside the Output Volume display, instead of using the Output Volume buttons.

Allows users to independently manage the EQ, polarity, gain and limiting threshold of the three output channels.

N.B.: The XLR DSP section of the Output tab does not provide the management of any limiter for this output.

Output EQ window

G6) Frequency response curve

G7) Filter type menu

G8) Filter frequency

G9) Filter boost

G10) Filter Q

G11) Filter select button

G10G9G8G7

G11
