8 CONNECTORS AND SET UP

1) Powered signal parallel INPUT. Four-pin female speakon.

2) Powered signal parallel LINK/OUTPUT. 4-pin male speakon.

3) Connector secure lock. Pull it back and turn the connector

to unplug it.

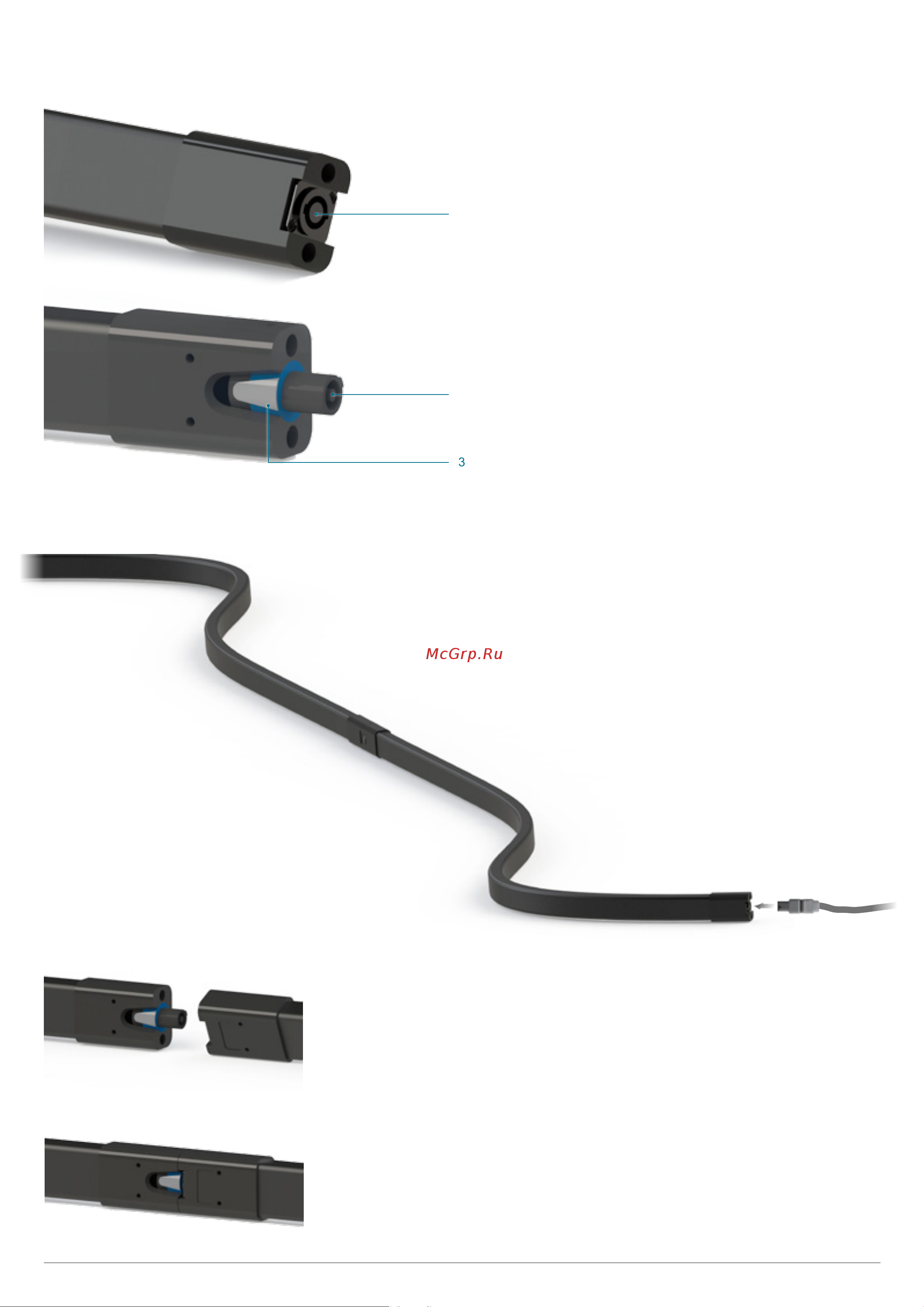

img. 1

Audio power signal on pins 1+/1- of the NL4 connectors is

fed into the speaker, while the signal on pins 2+/2- passes

through from one socket to the other. Thus, the signal can

pass through multiple KAN200 modules without additional

external cabling. Signal on pins 2+/2- can then be easily fed

into another KAN200, another series of KAN200 modules or a

different speaker with the insertion of a K-ANLINK (see p.11).

You can connect a series of up to 16 units (32 m) to a single

channel of a 4Ω amplier.
