DMX SIGNAL CONNECTION:

FOS 100 SOLO IP20 / FOS 100+ SOLO IP20

The unit operates using a digital DMX 512 signal. Connection between the controller and the unit or

between units must be carried out using a two pair screened ø0.5 mm.

P.S:

If the display showing the DMX address flashes, then one of the following errors has occurred:

- DMX signal not present

- DMX reception problem

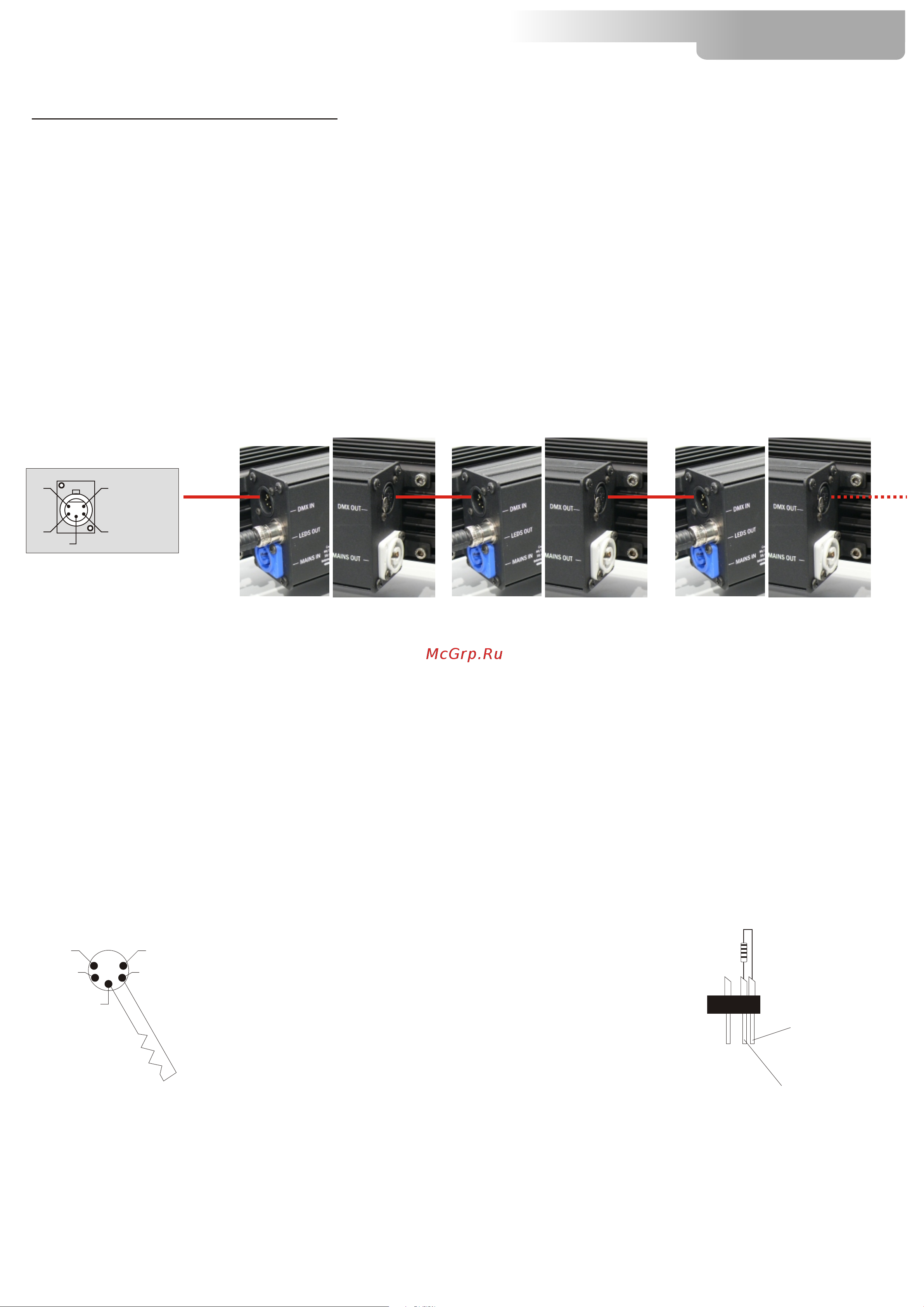

For Installations where long distance DMX cable connections are needed, we suggest to use a DMX

terminator.

The DMX terminator is a male XLR 3-5 pins connector with a 120 ohm resistor Between pin 2 and 3.

The DMX terminator must be plugged into the last unit (DMX out panel connector) of the DMX line.

Ensure that the conductors do not touch each other. Do not connect the cable ground to the DMX

connector chassis. The plug housing must be isolated. Connect the mixer signal to the DMX IN

projector plug and connect it to the next projector by connecting the DMX OUT plug on the first unit to

the DMX IN plug of the second one.

In this way, all the projectors are cascade connected.

The standard configuration of the FOS 100 SOLO FULL COLOUR

is with XLR 5 pins connectors.

4 2

1=GND

2=DATA-

3=DATA+

CONTROLLER

S TA N D A R D

D M X 5 1 2

OUT

120 ohm

PIN 3

PIN 2

PLACE A 120 OHM RESISTOR BETWEEN PIN 2

AND 3 OF A MALE XRL CONNECTOR AND PLUG IT

INTO THE DMX OUT PANEL CONNECTOR OF THE

LAST UNIT CONNECTED TO THE DMX LINE

FOS 100

UNIT 1 UNIT 2 UNIT 3
