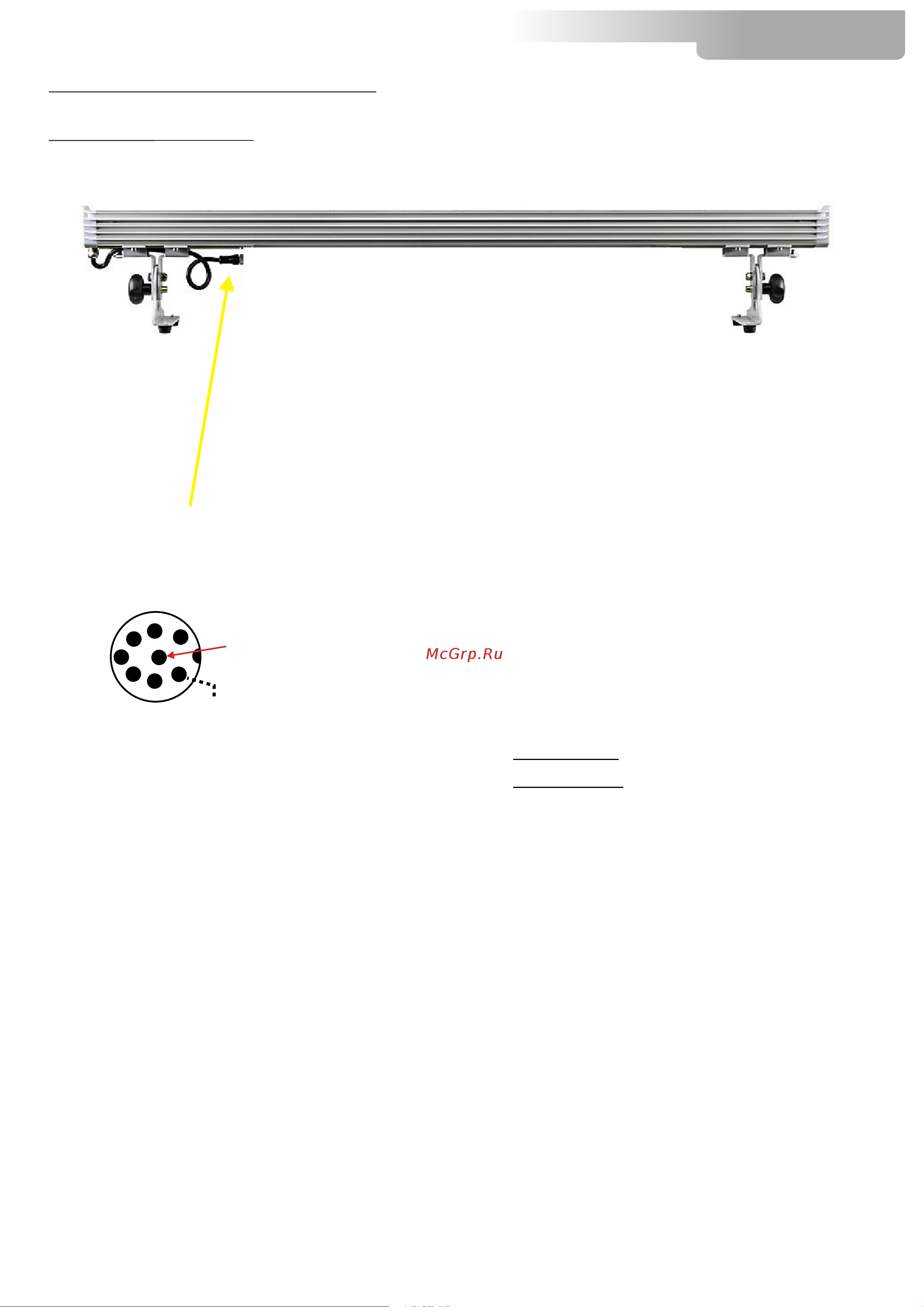

INPUT/OUTPUT CONNECTIONS

FOS 100 / FOS 100+

FOS 100

M12 LED input

Male cable connector

LEDS

CONNECTOR PINOUT

4-GREEN -

5-BLUE +

6-BLUE -

7-AMBER - (RGBA / WHITE)

8-AMBER + (RGBA / WHITE)

1-RED +

2-RED -

3-GREEN +

LEDS

CONNECTOR

4-GREEN - (FC / RGBA / WHITE)

5-BLUE + (FC / RGBA / WHITE)

6-BLUE - (FC / RGBA / WHITE)

1-RED + (FC / RGBA / WHITE)

2-RED - (FC / RGBA / WHITE)

3-GREEN + (FC / RGBA / WHITE)

For application where IP65 rating is not necessary, FOS 100 / 100+ cabling connection

can be done with a standard UTP B2 category 5E cable.

The maximum distance between power supply and the unit should not exceed 100

meters.

For IP65 rating application, D.T.S. reccomed the use of a IP65/68 cable as the

10XAWG26 multipolar black outdoor cable (IP68) (D.T.S. Code: 0509C061).

The maximum distance between power supply and the unit should not exceed 100

meters.

TIA/EIA 568-

Pin1
