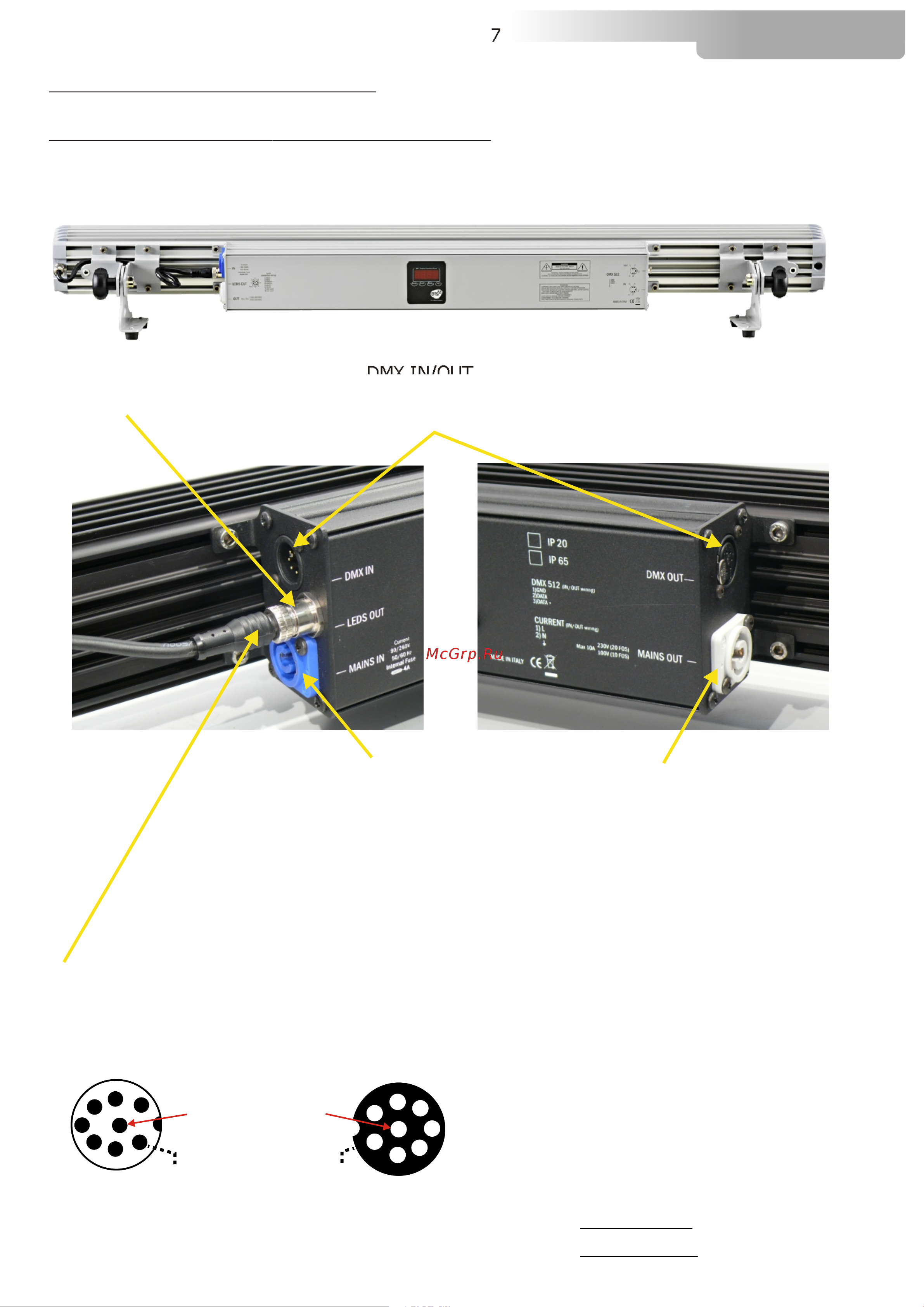

INPUT/OUTPUT CONNECTIONS
FOS 100 SOLO IP20 / FOS 100+ SOLO IP20
Mains 90-260 V AC
50-60 Hz input Powercon
Female panel connector
DMX IN/OUT
XLR 5 pins Male / Female
Panel Connectors
7
Pin1
2
3
4
5
6
7
M12 LED output
Female panel connector
Mains 90-260 V AC
50-60 Hz output Powercon
Female panel connector
MAX load:
230 V AC = 20 FOS 100 SOLO
100 V AC = 10 FOS 100 SOLO
Pin1
2
3
4
5
6
7
M12 LED input
Male cable connector
FOS 100
LEDS
CONNECTOR PINOUT
4-GREEN -
5-BLUE +
6-BLUE -
7-AMBER - (RGBA / WHITE)
8-AMBER + (RGBA / WHITE)
1-RED +
2-RED -
3-GREEN +
LEDS
CONNECTOR
4-GREEN - (FC / RGBA / WHITE)
5-BLUE + (FC / RGBA / WHITE)
6-BLUE - (FC / RGBA / WHITE)
7-
1-RED + (FC / RGBA / WHITE)
2-RED - (FC / RGBA / WHITE)
3-GREEN + (FC / RGBA / WHITE)
8
8
M12 LED output
Female panel connector
