AUDIX ADX40WHC [2/2] Architect and engineer specifications

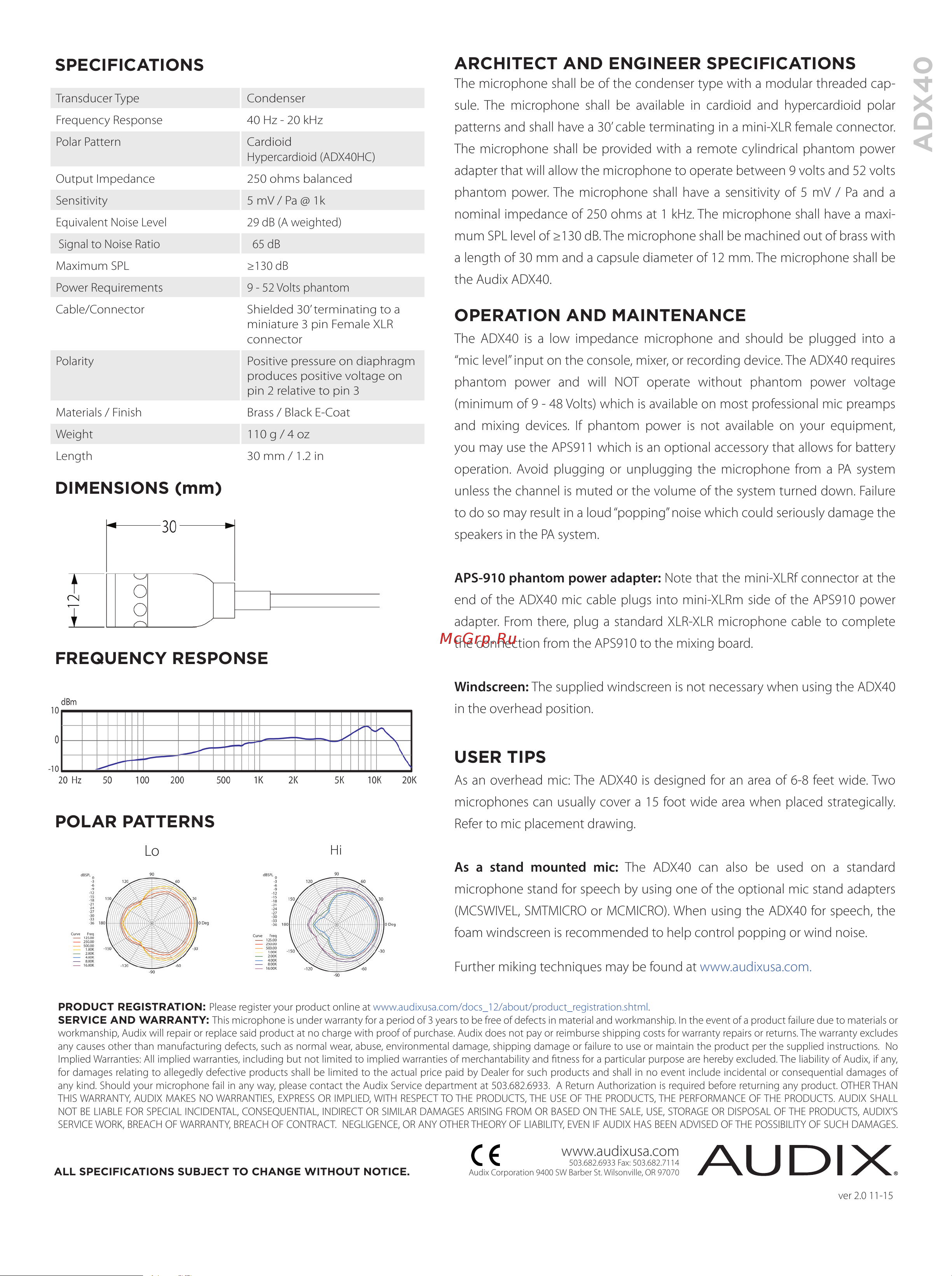

AUDIX ADX40WHC [2/2] Architect and engineer specifications
Transducer Type
Condenser
Frequency Response
40 Hz - 20 kHz
Polar Pattern
Cardioid
Hypercardioid (ADX40HC)
Output Impedance
250 ohms balanced
Sensitivity
5 mV / Pa @ 1k
Equivalent Noise Level 29 dB (A weighted)
Signal to Noise Ratio 65 dB
Maximum SPL
≥130 dB
Power Requirements
9 - 52 Volts phantom
Cable/Connector
Shielded 30’ terminating to a
miniature 3 pin Female XLR
connector
Polarity
Positive pressure on diaphragm
produces positive voltage on
pin 2 relative to pin 3
Materials / Finish
Brass / Black E-Coat
Weight
110 g / 4 oz
Length
30 mm / 1.2 in
Hi
Lo
FREQUENCY RESPONSE
POLAR PATTERNS
ARCHITECT AND ENGINEER SPECIFICATIONS
The microphone shall be of the condenser type with a modular threaded cap-
sule. The microphone shall be available in cardioid and hypercardioid polar
patterns and shall have a 30’ cable terminating in a mini-XLR female connector.
The microphone shall be provided with a remote cylindrical phantom power
adapter that will allow the microphone to operate between 9 volts and 52 volts
phantom power. The microphone shall have a sensitivity of 5 mV / Pa and a
nominal impedance of 250 ohms at 1 kHz. The microphone shall have a maxi-
mum SPL level of ≥130 dB. The microphone shall be machined out of brass with
a length of 30 mm and a capsule diameter of 12 mm. The microphone shall be
the Audix ADX40.
OPERATION AND MAINTENANCE
The ADX40 is a low impedance microphone and should be plugged into a
“mic level” input on the console, mixer, or recording device. The ADX40 requires
phantom power and will NOT operate without phantom power voltage
(minimum of 9 - 48 Volts) which is available on most professional mic preamps
and mixing devices. If phantom power is not available on your equipment,
you may use the APS911 which is an optional accessory that allows for battery
operation. Avoid plugging or unplugging the microphone from a PA system
unless the channel is muted or the volume of the system turned down. Failure
to do so may result in a loud “popping” noise which could seriously damage the
speakers in the PA system.
APS-910 phantom power adapter: Note that the mini-XLRf connector at the
end of the ADX40 mic cable plugs into mini-XLRm side of the APS910 power
adapter. From there, plug a standard XLR-XLR microphone cable to complete
the connection from the APS910 to the mixing board.
Windscreen: The supplied windscreen is not necessary when using the ADX40
in the overhead position.
USER TIPS
As an overhead mic: The ADX40 is designed for an area of 6-8 feet wide. Two
microphones can usually cover a 15 foot wide area when placed strategically.
Refer to mic placement drawing.
As a stand mounted mic: The ADX40 can also be used on a standard
microphone stand for speech by using one of the optional mic stand adapters
(MCSWIVEL, SMTMICRO or MCMICRO). When using the ADX40 for speech, the
foam windscreen is recommended to help control popping or wind noise.
Further miking techniques may be found at www.audixusa.com.
ALL SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE.
www.audixusa.com
503.682.6933 Fax: 503.682.7114
Audix Corporation 9400 SW Barber St. Wilsonville, OR 97070
ver 2.0 11-15
PRODUCT REGISTRATION: Please register your product online at www.audixusa.com/docs_12/about/product_registration.shtml.
SERVICE AND WARRANTY:
This microphone is under warranty for a period of 3 years to be free of defects in material and workmanship. In the event of a product failure due to materials or
workmanship, Audix will repair or replace said product at no charge with proof of purchase. Audix does not pay or reimburse shipping costs for warranty repairs or returns. The warranty excludes
any causes other than manufacturing defects, such as normal wear, abuse, environmental damage, shipping damage or failure to use or maintain the product per the supplied instructions. No
Implied Warranties: All implied warranties, including but not limited to implied warranties of merchantability and fitness for a particular purpose are hereby excluded. The liability of Audix, if any,
for damages relating to allegedly defective products shall be limited to the actual price paid by Dealer for such products and shall in no event include incidental or consequential damages of
any kind. Should your microphone fail in any way, please contact the Audix Service department at 503.682.6933. A Return Authorization is required before returning any product. OTHER THAN
THIS WARRANTY, AUDIX MAKES NO WARRANTIES, EXPRESS OR IMPLIED, WITH RESPECT TO THE PRODUCTS, THE USE OF THE PRODUCTS, THE PERFORMANCE OF THE PRODUCTS. AUDIX SHALL
NOT BE LIABLE FOR SPECIAL INCIDENTAL, CONSEQUENTIAL, INDIRECT OR SIMILAR DAMAGES ARISING FROM OR BASED ON THE SALE, USE, STORAGE OR DISPOSAL OF THE PRODUCTS, AUDIX’S
SERVICE WORK, BREACH OF WARRANTY, BREACH OF CONTRACT. NEGLIGENCE, OR ANY OTHER THEORY OF LIABILITY, EVEN IF AUDIX HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
DIMENSIONS (mm)
SPECIFICATIONS
ADX40
