AIRMOTIV SPEAKERS

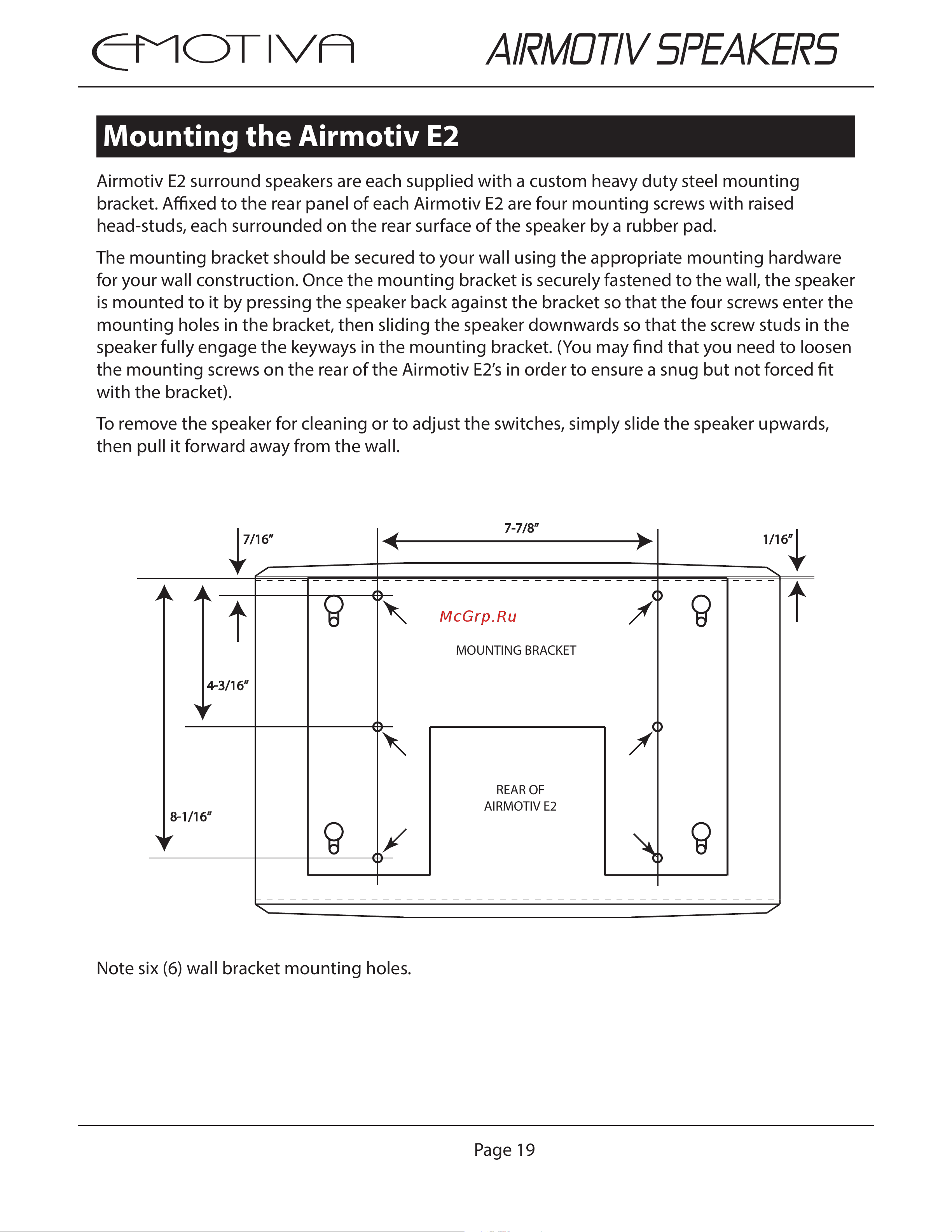

Mounting the Airmotiv E2

Airmotiv E2 surround speakers are each supplied with a custom heavy duty steel mounting

bracket. Axed to the rear panel of each Airmotiv E2 are four mounting screws with raised

head-studs, each surrounded on the rear surface of the speaker by a rubber pad.

The mounting bracket should be secured to your wall using the appropriate mounting hardware

for your wall construction. Once the mounting bracket is securely fastened to the wall, the speaker

is mounted to it by pressing the speaker back against the bracket so that the four screws enter the

mounting holes in the bracket, then sliding the speaker downwards so that the screw studs in the

speaker fully engage the keyways in the mounting bracket. (You may nd that you need to loosen

the mounting screws on the rear of the Airmotiv E2’s in order to ensure a snug but not forced t

with the bracket).

To remove the speaker for cleaning or to adjust the switches, simply slide the speaker upwards,

then pull it forward away from the wall.

7-7/8”

1/16”7/16”

4-3/16”

8-1/16”

MOUNTING BRACKET

REAR OF

AIRMOTIV E2

Note six (6) wall bracket mounting holes.
