Sennheiser EW 122P G4-A [74/128] Software revision menu item

Using the SKM 100 G4

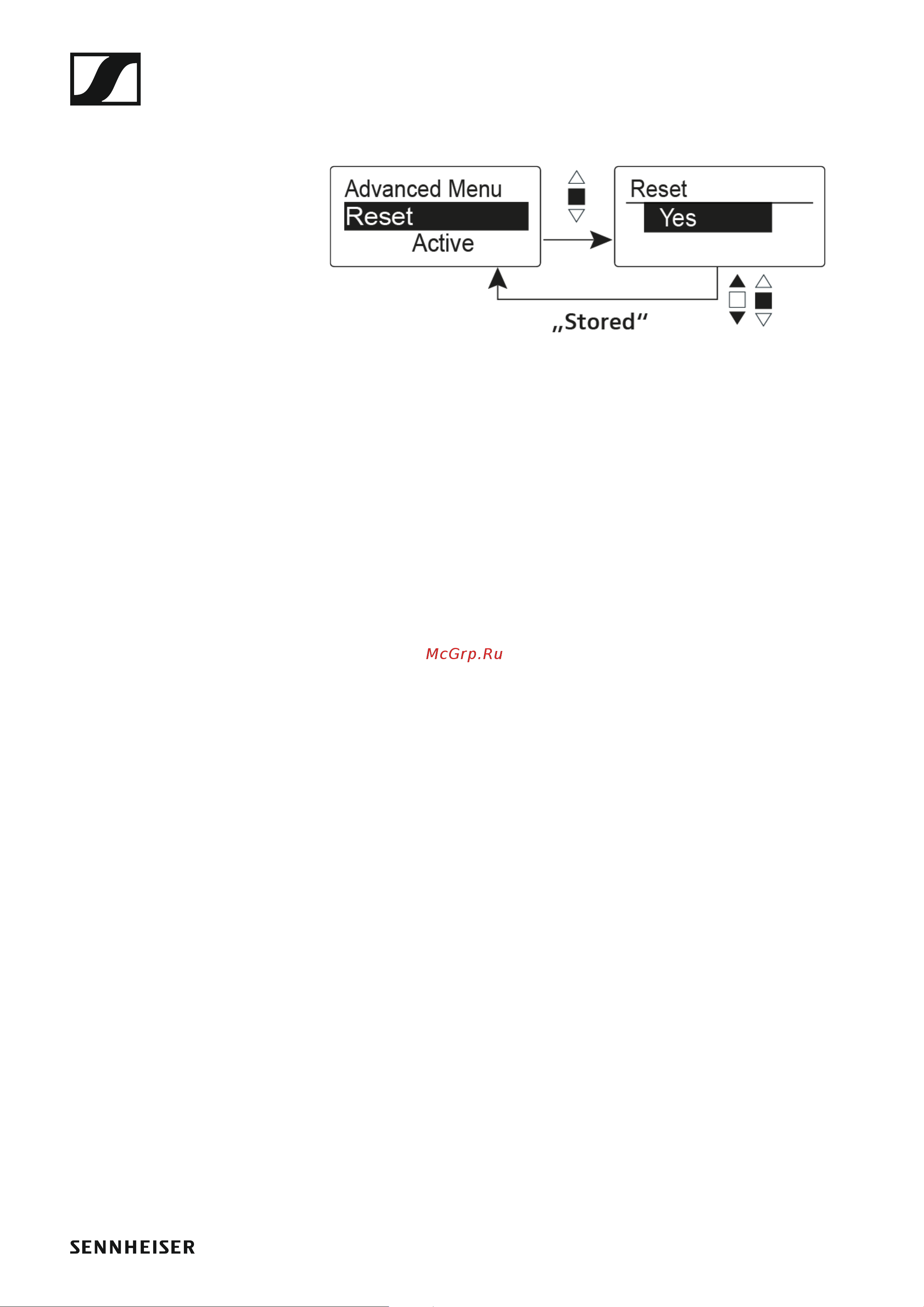

Advanced > Reset menu item

• Resetting the wireless microphone

►

When you reset the wireless microphone, only the selected settings of the

pilot tone and the U frequency bank are retained.

Advanced > Software Revision menu item

• Show software revision

You can display the current software revision.
