ELECTRO VOICE 635 A [2/2] Architects and engineers specifications

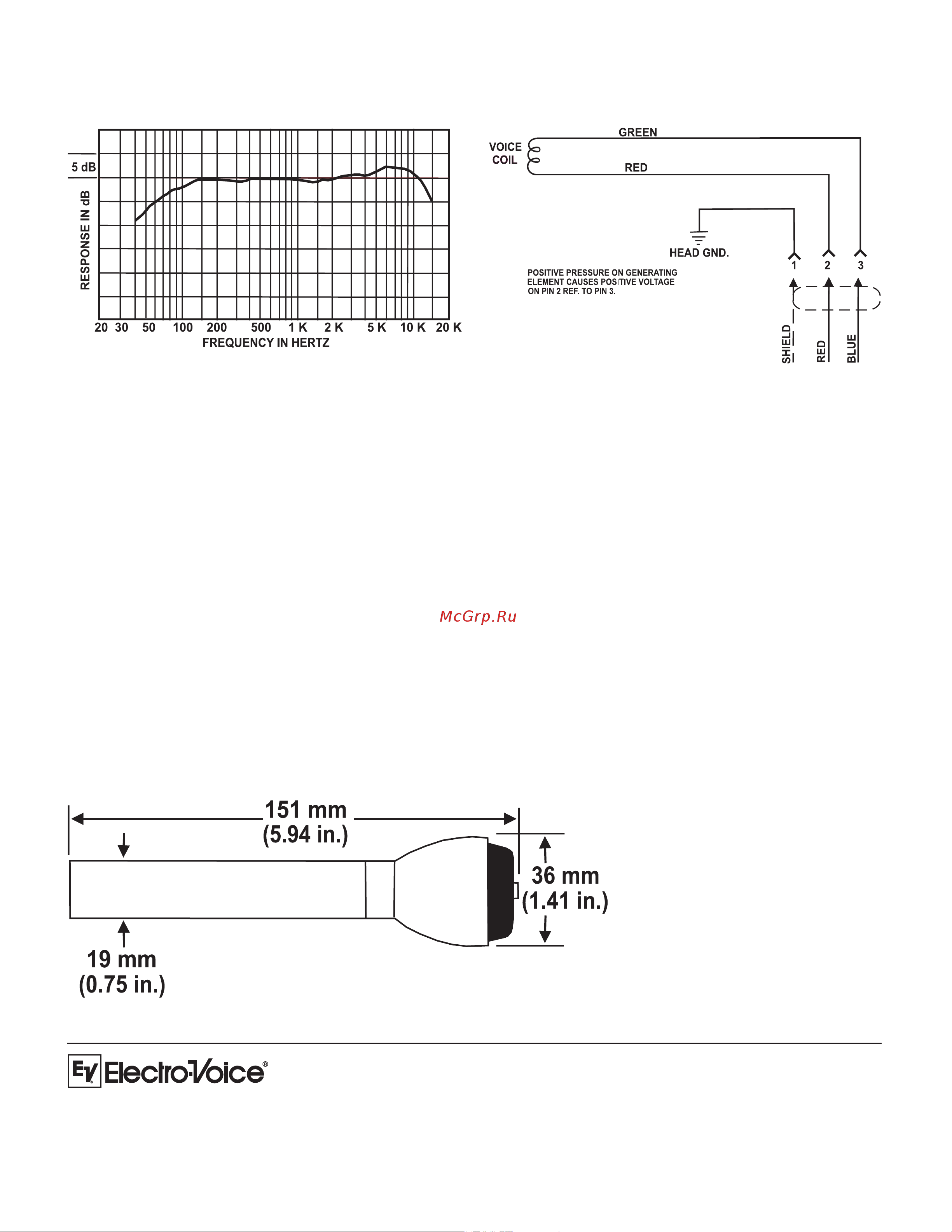

Frequency Response:

12000 Portland Avenue South, Burnsville, MN 55337

Phone:952/884-4051, Fax:952/884-0043

www.electrovoice.com

Part Number 534670 Rev E

U.S.A. and Canada only. For customer orders, contact Customer Service at:

800/392-3497 Fax: 800/955-6831

Europe, Africa, and Middle East only. For customer orders, contact Customer Service at:

+ 49 9421-706 0 Fax: + 49 9421-706 265

Other International locations. For customer orders, contact Customer Service at:

+ 1 952 884-4051 Fax: + 1 952 736-4212

For warranty repair or service information, contact the Service Repair department at:

800/553-5992 or 402/467-5321

For technical assistance, contact Technical Support at: 800/392-3497 or 952/736-4656

Specifications subject to change without notice.

Wiring Diagram:

Dimension Drawing:

Architects’ and Engineers’ Specifications:

The microphone shall be an Electro-Voice 635A or 635A/B. The microphone shall be an omnidirectional dynamic type with

wide range response uniform from 80-13,000 Hz. It shall have a four-stage pop filter, and magnetic shield to prevent dust

and magnetic particles from reaching the diaphragm. The impedance shall be such that the microphone will match 50-,

150- and 250-ohm inputs. The line shall be balanced to ground and phased. The output level shall be -55 dB with 0 dB

equaling 1.4mV/pascal. The magnetic circuit shall be a nonwelded circuit and employ Alnico V and magnetic iron. The

case shall be made of steel. The microphone shall have a maximum diameter of 36 mm (1.41 in.), a length of 151 mm (5.94

in.) and a weight of 170 grams (6 oz.) The Electro-Voice 635A and 635A/B are specified.
