Digitech JamMan Solo XT [15/72] Connecting to the amp input

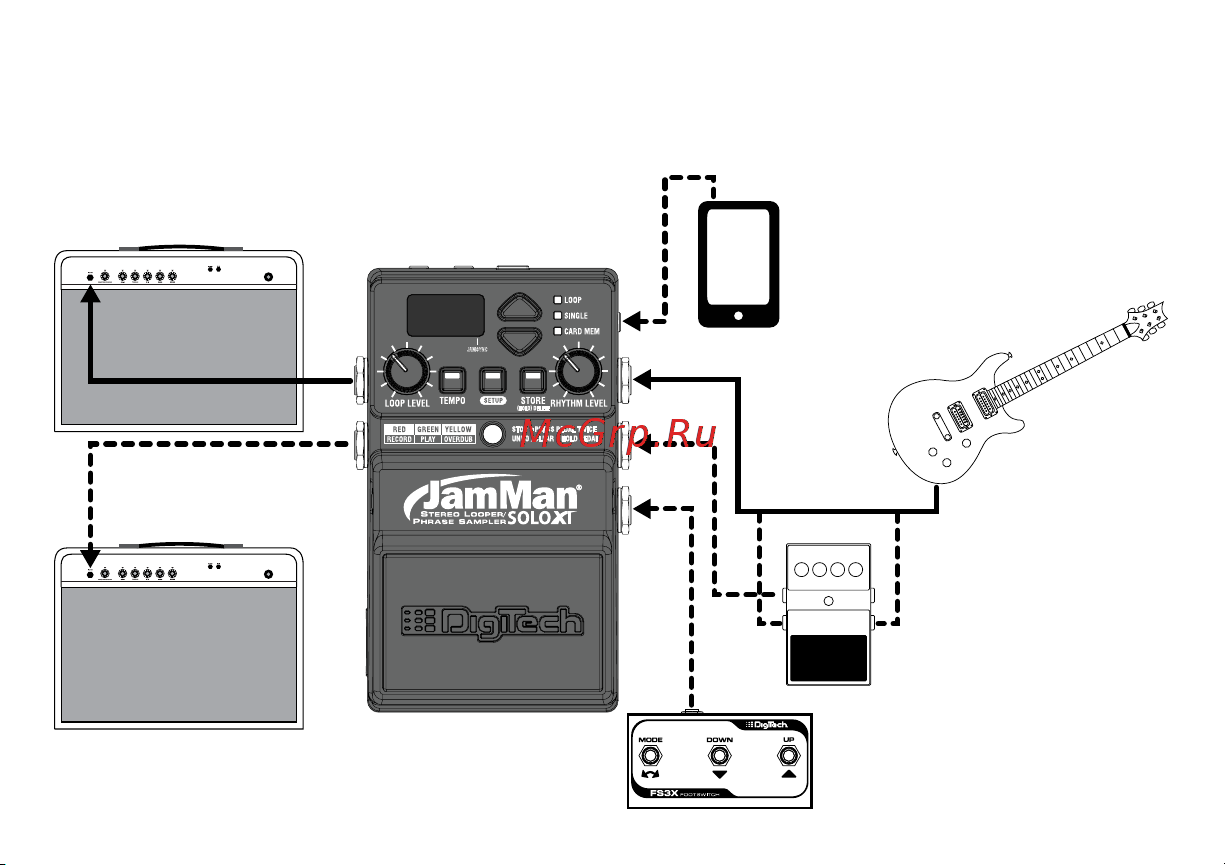

Connection Diagrams

Connecting to the Amp Input

JAMSYNC

In 1 (Mono)

In 2

Out 1 (Mono)

Out 2

Connect your guitar/bass to

the LEFT INPUT.

Connect a music player or some

other audio source to the AUX

IN jack (optional).

Connect optional FS3X to

the JamMan Solo XT’s FOOT-

SWITCH input for hands-free

control.

Connect other

pedals in front of the

JamMan Solo XT

(optional).

Connect the

RIGHT OUT jack to a

second amp’s input (optional).

Connect the JamMan™ Solo XT’s

LEFT OUT

jack to the amp’s input.
