CHAUVET SlimPAR Pro QZ12 USB [3/39] Quick reference guide

SlimPAR Pro QZ12 USB QRG Rev.2

QUICK REFERENCE GUIDE

Power Linking

For the maximum number of SlimPAR Pro QZ12 USB that can be linked at 120 V or at 230 V, see the User Manual or the

Label on this product.

Fuse Replacement

1. Disconnect the product from power.

2. Wedge the tip of a flat-head screwdriver into the slot of the fuse holder.

3. Pry the safety cap out of the housing.

4. Remove the blown fuse from the clip on the front of the safety cap and replace with a fuse of the exact same

type and rating.

5. Re-insert the fuse holder and reconnect power.

Mounting

Before mounting this product, read the Safety Notes.

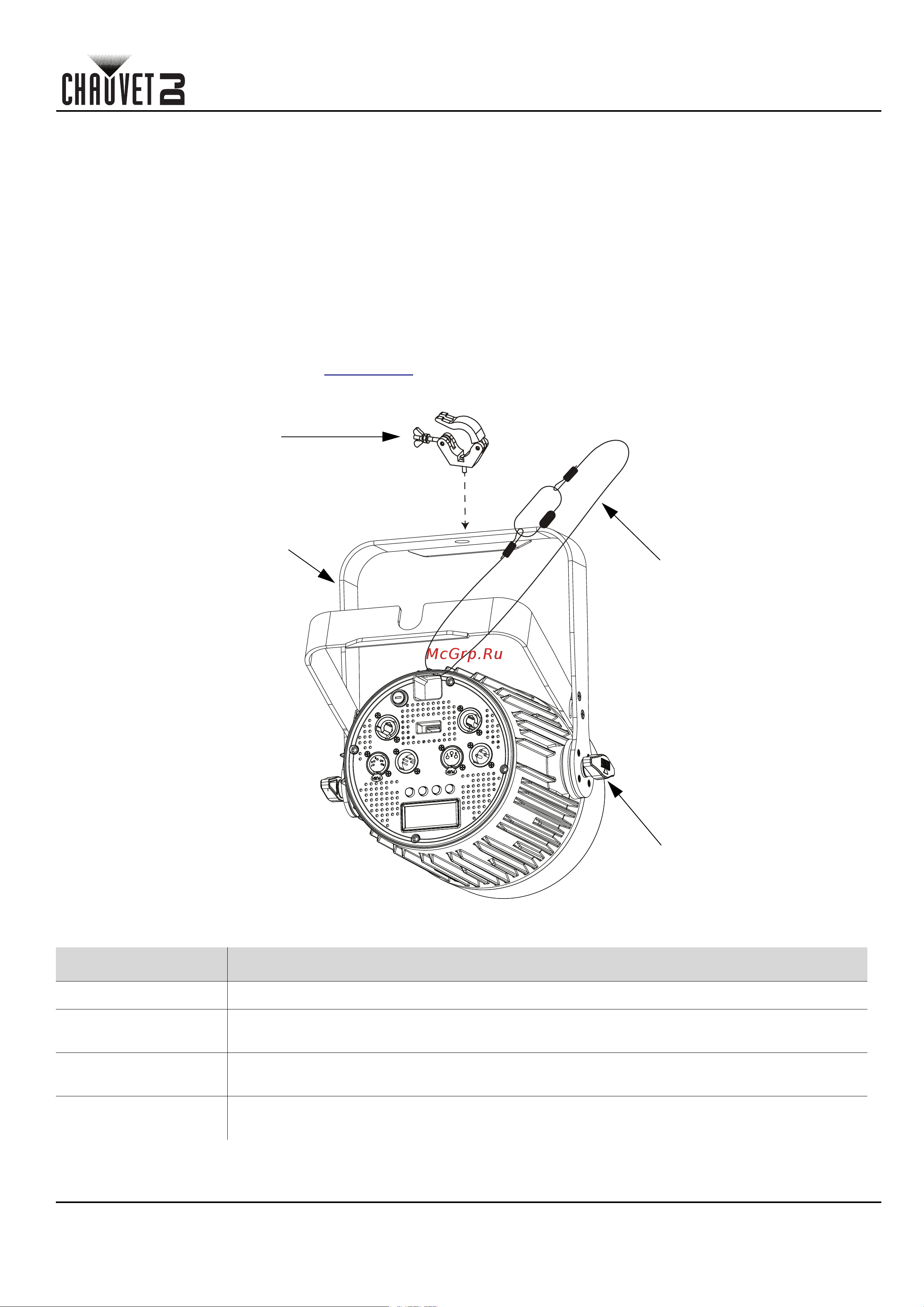

Mounting Diagram

Control Panel Description

BUTTON FUNCTION

<MENU> Exits from the current menu or function

<UP>

Navigates upwards through the menu list and increases the numeric value when in a

function

<DOWN>

Navigates downwards through the menu list and decreases the numeric value when in a

function

<ENTER>

Enables the currently displayed menu or sets the currently selected value into the selected

function

Mounting Clamp

(such as the CLP-15N

from Chauvet)

Safety Cable

(such as CH-05 from

Chauvet)

Mounting

Bracket

Adjustment

Knobs

Mounting Bracket
