3
EN
QUICK REFERENCE GUIDE
Freedom H1 QRG Rev. 3

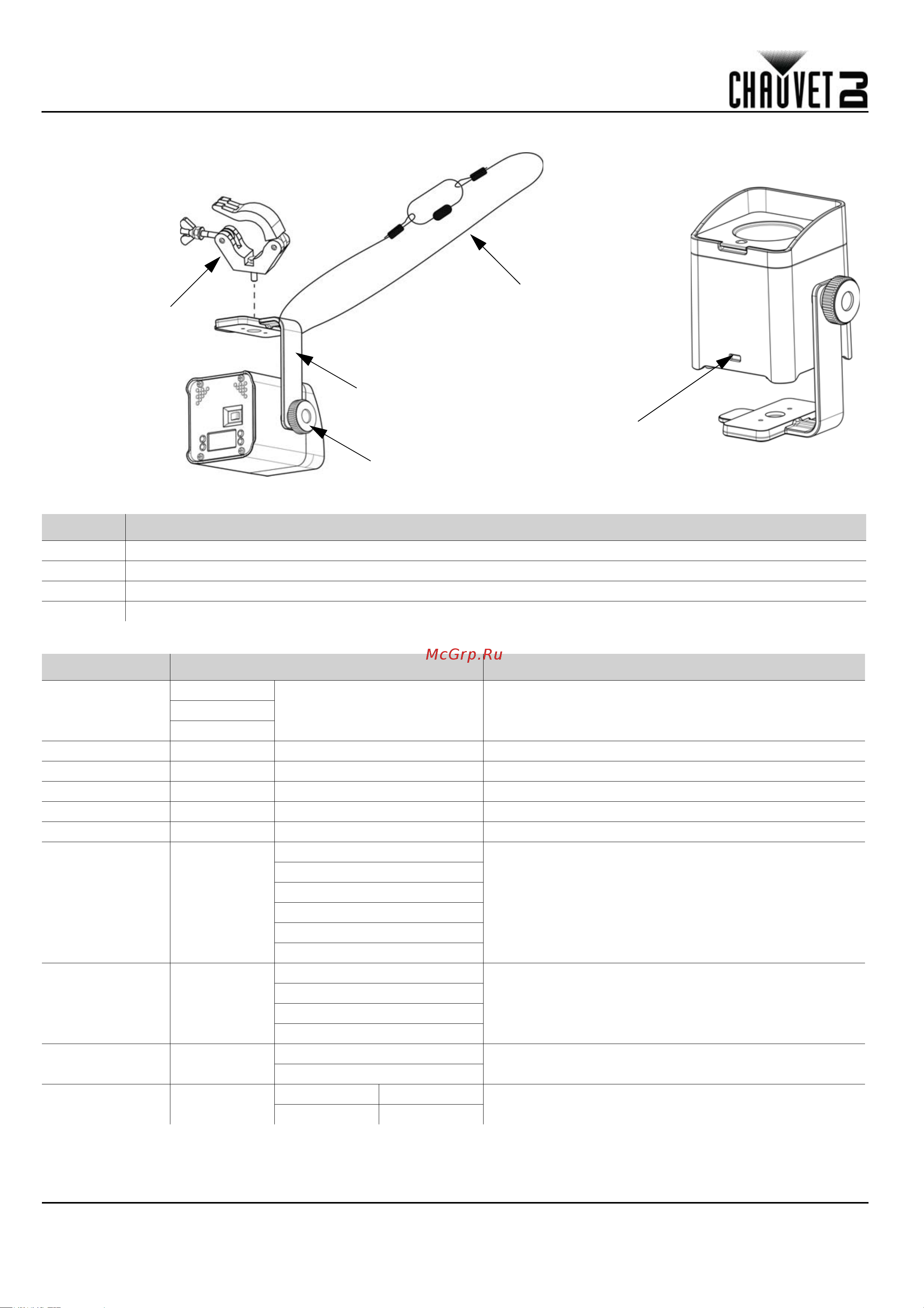

Mounting Diagram
Control Panel Description
Menu Map
Button Function
<MENU> Exits from the current menu or function
<UP> Navigates upwards through the menu list and increases the numeric value when in a function
<DOWN> Navigates downwards through the menu list and decreases the numeric value when in a function
<ENTER> Enables the currently displayed menu or sets the currently selected value into the selected function
Mode Programming Levels Description
DMX Mode
6-CH
d 1–512 Sets DMX personality and starting address8-CH
12CH
Preset Colors C-- C 1–63 Selects a preset color
Auto Programs P-- P 1–4 Sets auto program 1–4
Speed S-- S 1–100 Adjusts the auto program speed
Sound Mode Snd Snd Selects the sound-active mode
Sensitivity SenS u 1–100 Adjusts the sound sensitivity
Custom Color
Mixing
U--
r 0–255
Adjust the red, green, blue. amber, white, and UV
levels to create custom colors
b 0–255
g 0–255
A 0–255
W 0–255
P 0–255
Dimmer Mode dIM
oFF
Sets the dimmer curve: dIM1 (fast) to dIM3 (slow), or
oFF
dIM1
dIM2
dIM3
Infrared Mode SEt
on
Turns infrared on or off
oFF
Wireless DMX S-tr
drCH dr 1–16
Turns on wireless DMX and sets transmitter or
receiver channel
dtCH dt 1–16
Bracket Adjustment Knob
Mounting Clamp
Safety Cable
Mounting Bracket
Kensington Security Slot
