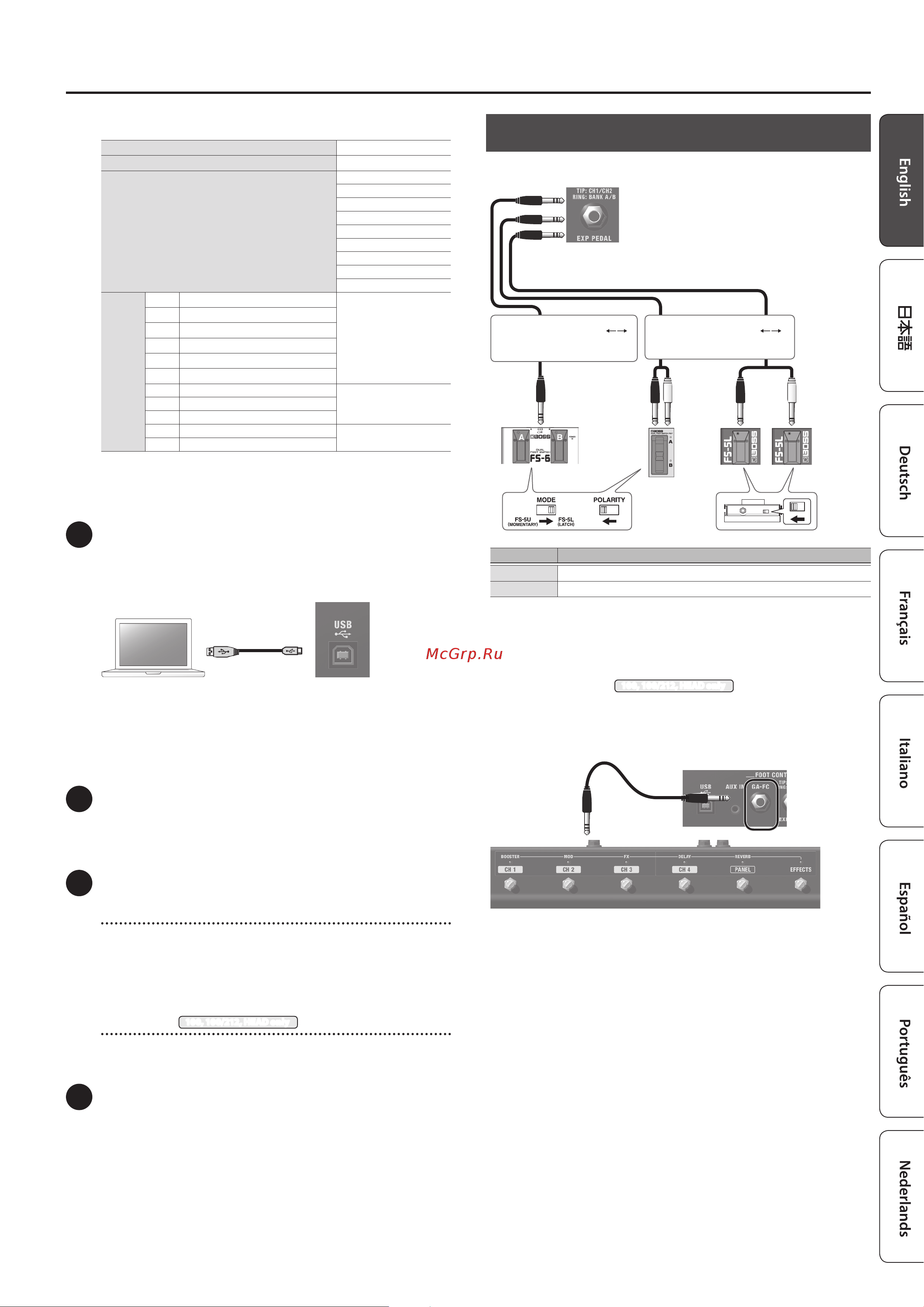

Boss Katana 100 Head MKII [7/12] Connecting a footswitch

Panel Descriptions

RECOGNIZED RECEIVE DATA

RX CH

1-4

OMNI

OFF (xed)

1 (00H): BANK A CH1

2 (01H): BANK A CH2

3 (02H): BANK A CH3

4 (03H): BANK A CH4

5 (04H): PANEL

6 (05H): BANK B CH1

7 (06H): BANK B CH2

8 (07H): BANK B CH3

9 (08H): BANK B CH4

#16

BOSTER SW

0–63: OFF,

64–127: ON

#17

MOD SW

#18

FX SW

#19

DELAY SW

#20

REVERB SW

#21

EFFECT LOOP SW

#80 GA-FC EXP PEDAL 1 (FX)

0–127#81 GA-FC EXP PEDAL 2 (VOLUME)

#82 EXP PEDAL

#83 GA-FC (FS1)

0–63: OFF,

64–127: ON

#84 GA-FC (FS1)

* When you operate the knobs in the EFFECTS section, the settings

of the knobs become eective and the above on/o setting will be

discarded.

18 USB O port

You can use a commercially available USB 2.0 cable to record the

sound of the KATANA Mk II into your computer. You can also use

dedicated software to edit the settings of the internal eects (p. 9).

You must install the USB driver when connecting the unit to

your computer.

Download the USB driver from the Roland website. For details, refer

to Readme.htm which is included in the download.

http://www.boss.info/support/

19 AUX IN jack

Here you can connect a CD player, audio player, electronic musical

instrument, or similar audio source, and listen to it while you play

your guitar.

20 FOOT CONTROL

SEL CH1 CH2/EXP PEDAL jack

If you connect a footswitch (sold separately: FS-6, FS-7, or FS-5L),

you can use your foot to switch between BANK A and BANK B and

CH 1 and CH 2. If you connect an expression pedal (sold separately:

Roland EV-5, BOSS EV-30, BOSS FV-500L, BOSS FV-500H), you can

use your foot to vary the volume.

GA-FC jack

100, 100/212, HEAD only

You can connect the separately sold GA-FC to switch channels and

turn eects on/o.

21 PHONES/REC OUT jack

Connect headphones here. You can obtain powerful guitar sounds

just as if you were playing through the speaker. To adjust the

volume, use the [VOLUME] knob along with the [MASTER] knob.

* If a plug is inserted in this jack, no sound will be output from the

KATANA Mk II’s own speaker. This is convenient if you don’t want

loud sound to be produced from the speaker, such as when you’re

practicing at night.

Connecting a Footswitch

Connecting a footswitch (sold separately: BOSS FS-6, FS-7, or FS-5L)

Stereo 1/4” phone type

FS-5L

RING

TIP

RING TIP

FS-6 FS-7

Rear panel

Stereo 1/4” phone type

1/4” phone type x 2

Switch Explanation

TIP Switches between CH1 and CH2.

RING Switches between BANK A and BANK B.

* The KATANA Mk II is compatible with latch-type footswitches (FS-6,

FS-7, FS-5L). If you’re using an FS-6 or FS-7, set the mode of A and B to

FS-5L (LATCH). Momentary-type footswitches (e.g., FS-5U) cannot be

used.

Connecting the GA-FC

100, 100/212, HEAD only

Connect a stereo cable to the GA-FC jack.

* Always use a stereo cable.

* Use cables that do not contain resistors.

GA-FC

Using the GA-FC

You can switch TONE SELECT (CH1–CH4, PANEL). You can also switch

EFFECTS (BOOSTER, MOD, FX, DELAY, REVERB) on/o.
