10. Crossfader Adjustment

On the main motherboard you can nd two potentiometers, which you

can adjust with a little screwdriver. These potentiometers are identied as

OVERLAP and SLOPE. You can unscrew the bottom of your mixer to reach the

mainmotherboard.

◊ Please be aware that the BEHRINGER warranty becomes discretionary

when you start disassembling your DX2000USB! Don’t even think of it,

if you make much of your warranty privileges. Sorry, but we have to

mention this.

10.1 Overlap

With the OVERLAP potentiometer (VR43) you can adjust the increase or

decrease in dB, which is conducted when the crossfader is located in the middle

position. Ex works this value is adjusted at -3 dB and should not be modied.

Thisguarantees a constant volume across the entire fader path.

10.2 Slope

With the SLOPE potentiometer (VR44) you can adjust the fade over process of the

both channels. Dependent on the setting of the SLOPE potentiometer there are

the following volume curves:

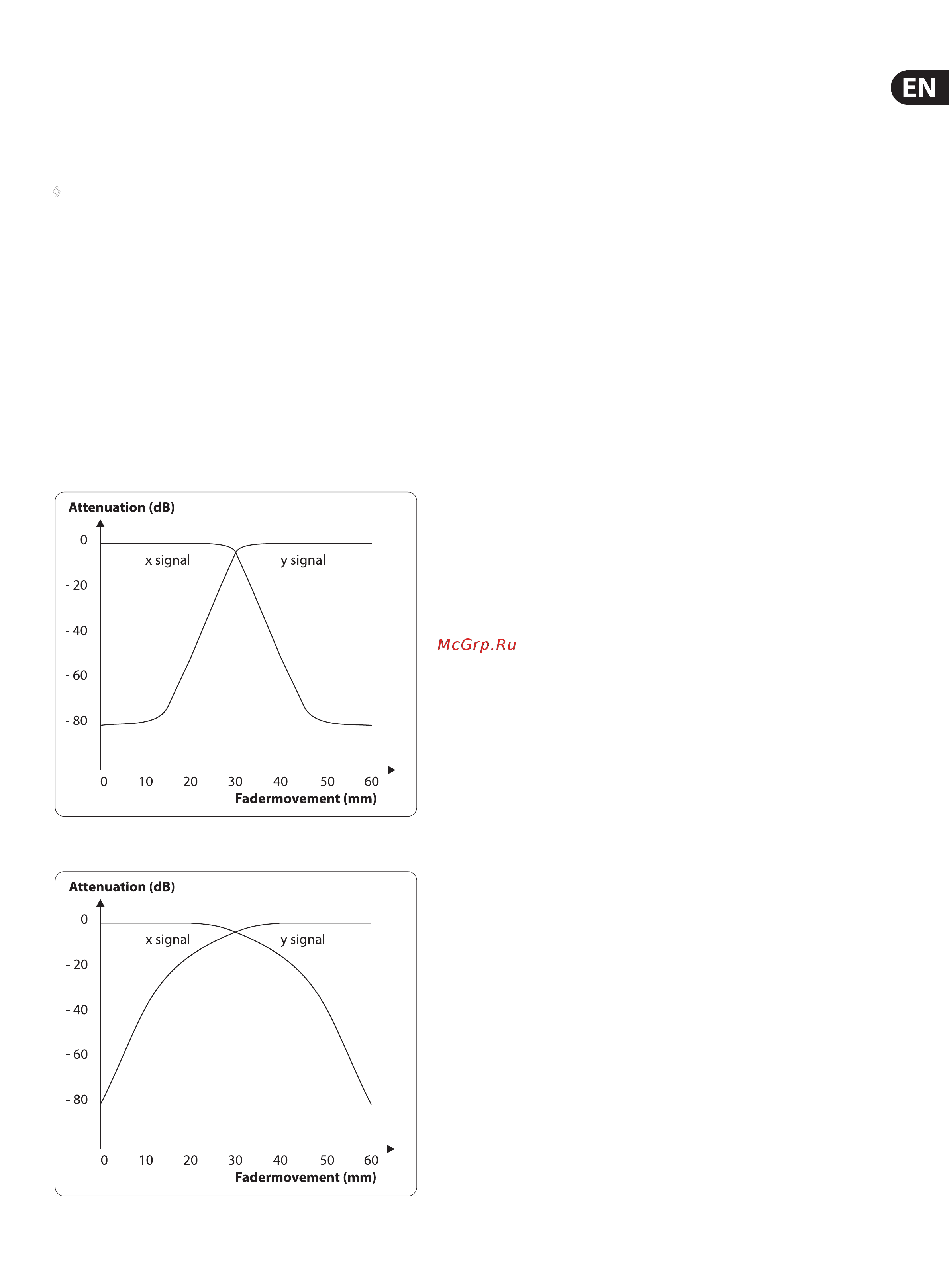

Fig. 11.1: Volume curve I (SLOPE potentiometer completely left)

Fig. 11.2: Volume curve II (SLOPE potentiometer completely right)
