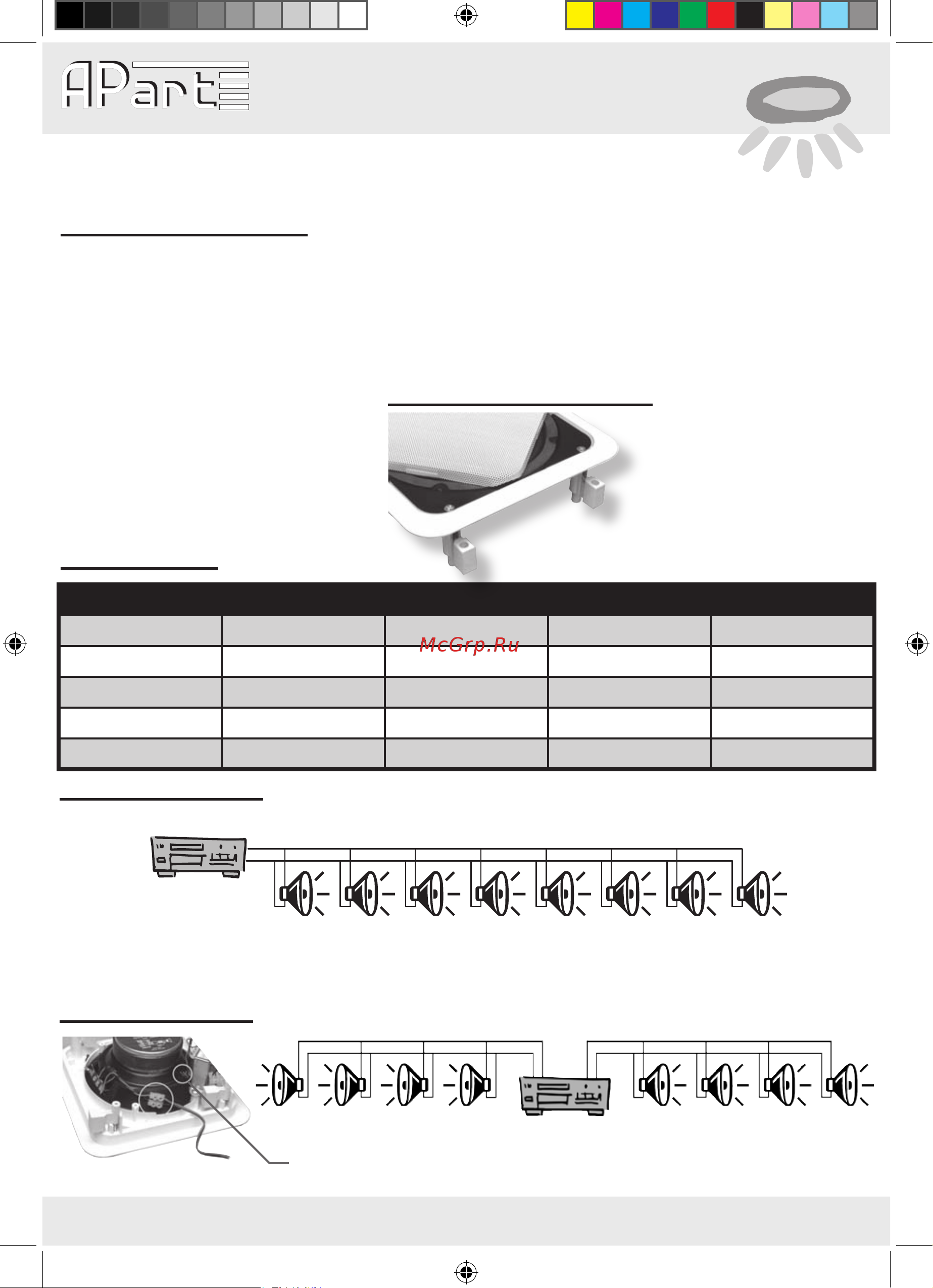

CEILING LOUDSPEAKER
COLOUR KLEUR COULEUR POWER IMPEDANCE
Black Zwart Noir Common
RED ROOD ROUGE 2.5 Watt 4KΩ
GREEN GROEN VERT 5 Watt 2KΩ
YELLOW GEEL JAUNE 10 Watt 1KΩ
BROWN BRUIN BRUN 20 Watt 500R
CMS20T
WWW.APART-AUDIO.COM INFO@APART-AUDIO.COM
• Type : 2 - Way HiFi
• Woofer : 6.5” Enforced Polypropylen
• Tweeter : 1” Silk Dome
• Rated Power RMS : 20 W / 100Volt
• Music Power RMS : 32 W / 100Volt
• Rated Power RMS : 40 W / 16Ω
• Music Power RMS : 60 W / 16Ω
• Sound Pres. Level (SPL) 1w/1m : 92dB
• Frequency range : 60 Hz - 20 kHz
• Trafo Power Tappings : 20 - 10 - 5 - 2.5W
• Dispersion @ 1-4-8 KHz : 180°- 80° - 45°
• Dimensions outside(HxW) : 201 x 201MM
• Dimensions Cutout(HxW) : 176 x 176MM
• Depth : 75MM
• Weight : 1.65Kg
Technical Specifications
The APart CMS20T 2-way square built-in
loudspeaker is loved by every interior de-
signer for its beautifull shape and perfect sound quality. It
can be used as a 16 Ohm or 100 Volt loudspeaker. In 16
Ohm use, you can connect up to 4 loudspeakers in paral-
lel on each channel of a standard 4 Ohm amplifier. For
100 use, the CMS20T is equipped with a high-quality 20
watt 100 Volt transformer with several power tappings. The
loudspeaker has a 6 ½” woofer and 1” tweeter. It makes
the CMS20T very suitable for the distribution of microphone
calls and Back Ground Music.
Power Tappings
20 20 10 5 5 5 2.5 2.5++ + + + + +70 Watt =
120Watt Amplifier
Amplifier power must be higher than total power of all speakers.
Het versterkervermogen moet hoger zijn dan de som van de vermogens van de luidsprekers.
La puissance de l’amplificateur doit etre plus élevée que la puissance totale des haut parleurs.
100 Volt Technology
16 ohm Technology
Mounting the loudspeaker
Disconnect 100Volt transformer
16Ω 16Ω 16Ω 16Ω 16Ω 16Ω 16Ω 16Ω
4Ω 4Ω
16 ohm connection
Cutout (HxW) : 176 x 176MM
Remove the grill before mounting.
You can see four Philips head
screws.
Use these screws to thigthen the
dog-ears.
CMS20T_Manual.indd 1 24/06/2005 9:51:53
