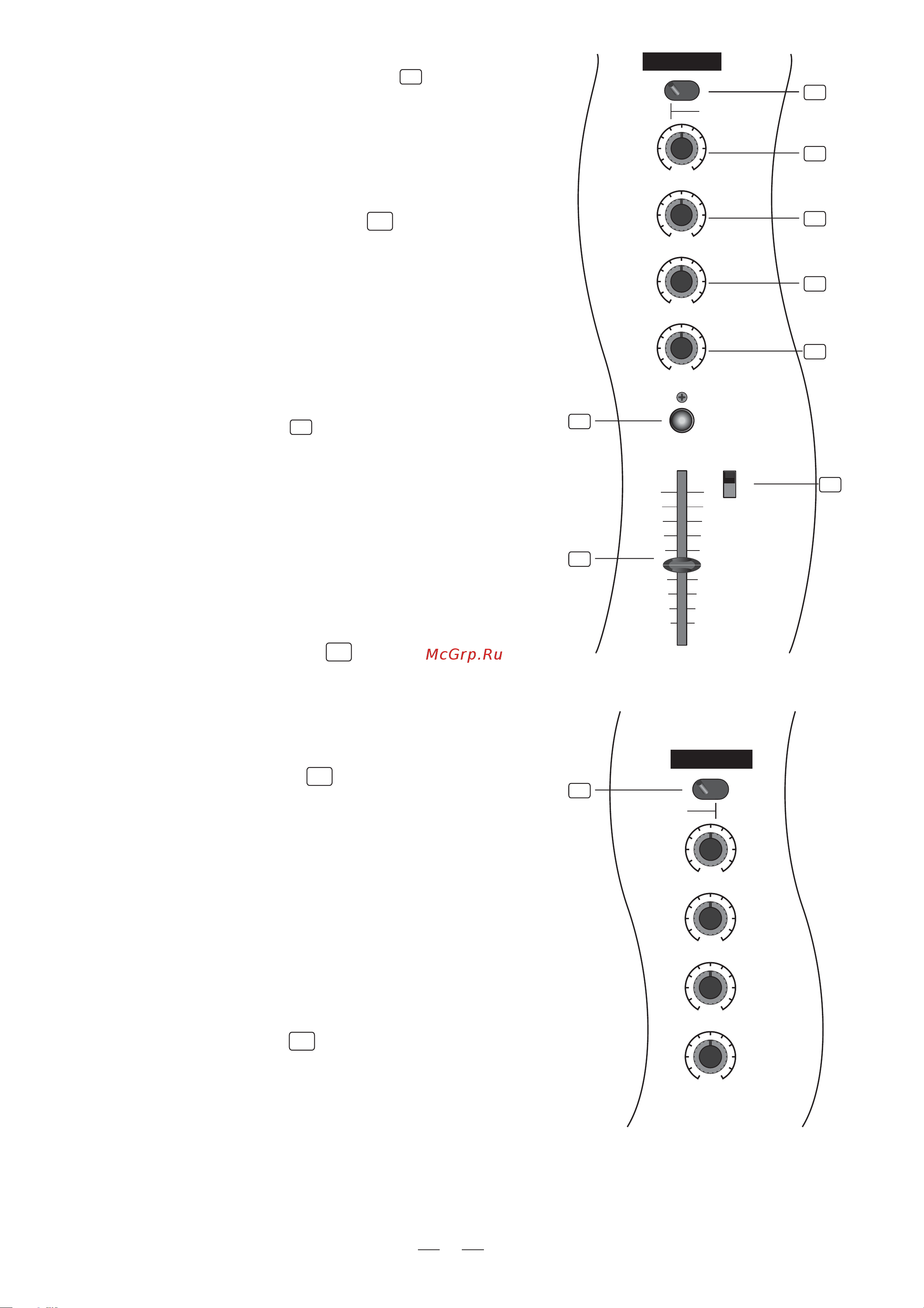

3.1.1 The CHANNEL Section
MIN MAX
GAIN
CHANNEL 1
-30dB
+15dB
-30dB
+15dB
-30dB
+15dB
PFL
BASS
MIDDLE
TREBLE
MIN MAX
BASS
MIDDLE
TREBLE
GAIN
CHANNEL 1
-30dB
+15dB
-30dB
+15dB
-30dB
+15dB
PFL
SHARP
SOFT
CURVE
MID
CHANNEL 3
MIN MAX
GAIN
-30dB
+15dB
-30dB
+15dB
-30dB
+15dB
BASS
MIDDLE
TREBLE
CHANNEL 3
MIN MAX
BASS
MIDDLE
TREBLE
GAIN
-30dB
+15dB
-30dB
+15dB
-30dB
+15dB
1
3
4
5
6
8
9
7
2
-. The PFL button
This button is used to route the input signal of corresponding
channel to PFL section via pressing it.
9
PHONO
LINE
MIC
PHONO
LINE
MIC
PHONO
LINE
LINE
-. The MIC to PHONO-LINE switch
1
The channel 1 is equipped with the MIC to PHONO-LINE
switch. This switch is used to select microphone input and
phono/line Input. When it is in the right position, you can
use the PHONO/LINE switch on the rear panel to input the
line signal to the phono input connector.
-. PHONO-LINE to LINE switch
2
This switch is available on input channel 2 and channel 3.
You should use the LINE position for all high level audio
signals such as CD Players, DAT, MD, etc.. You should use
the PHONO-LINE position to connect the turntables making
sure that the PHONO-LINE switch on the rear panel is on
PHONO position. With this switch (the one on the rear panel)
on LINE position, the Input Channel will accept a high level
audio signal.
-. The GAIN control
3
Via this knob you will adjust the input level. Do not turn this
control too much clockwise or you will overload the channel
and do not turn it too much counterclockwise or you will
generate background hiss.
-. The EQUALISER control
Each Input Channel is provided with 3 bands equaliser:
Treble (4), Middle (5) and Bass (6) and you can adjust the
gain range of each from -30dB to +15dB.
-. The PROGRAM Fader
7
There is a Program Fader available on each input channel.
For optimum performance and operation the 3 Faders are
VCA (Voltage Control Amplifier) controlled. These Faders
adjust the overall level of the input channels.
-. The CURVE control
8
Each input channel includes a 3-position switch denomi-
nated CURVE.
If you set the CURVE switch on SHARP position the level
will be changed quite quickly by the PROGRAM Fader even
if you move the Fader slowly.
If you set the CURVE switch in SOFT position, the level will
be changed much more slowly by the PROGRAM Fader
even if you move the Fader quickly.
If you set the CURVE switch in MID position you will com-
bine the SHARP and SOFT configuration.
