Verifying The Installation: PC3

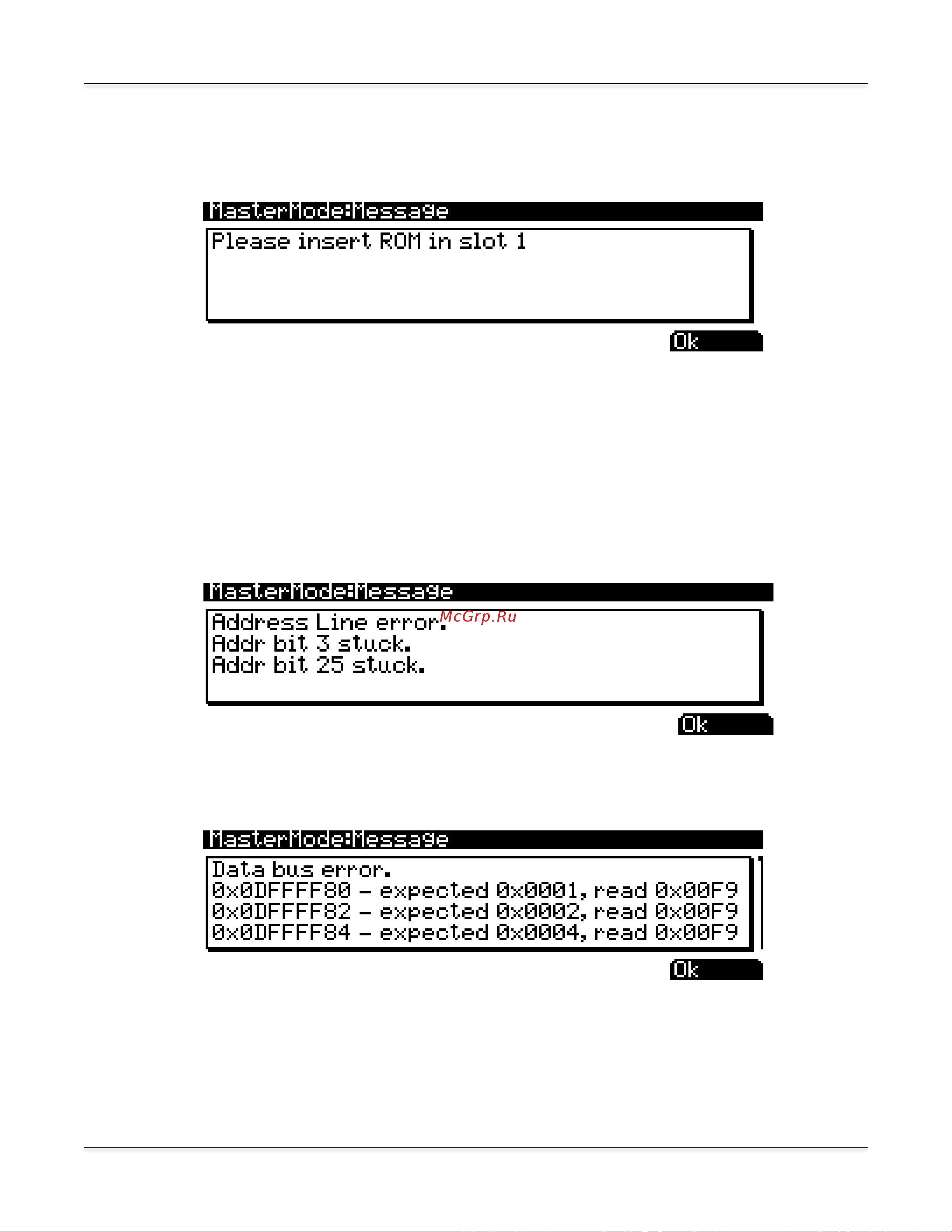

If you’ve installed the expansion board in the wrong slot, you’ll see the following:

In this case, turn off your instrument, disconnect the power supply, and repeat the instructions in

Hardware Installation: PC3 on page 7.

You may see any of the following results if there’s an issue with the expansion board (either

poor contact due to improper positioning or oxidation on the contacts, or a malfunction of the

board itself).

An error in the address bus gives results like the following (it won’t look exactly like this):

A data bus error results in a page that looks something like this:
