Verifying The Installation: PC3K

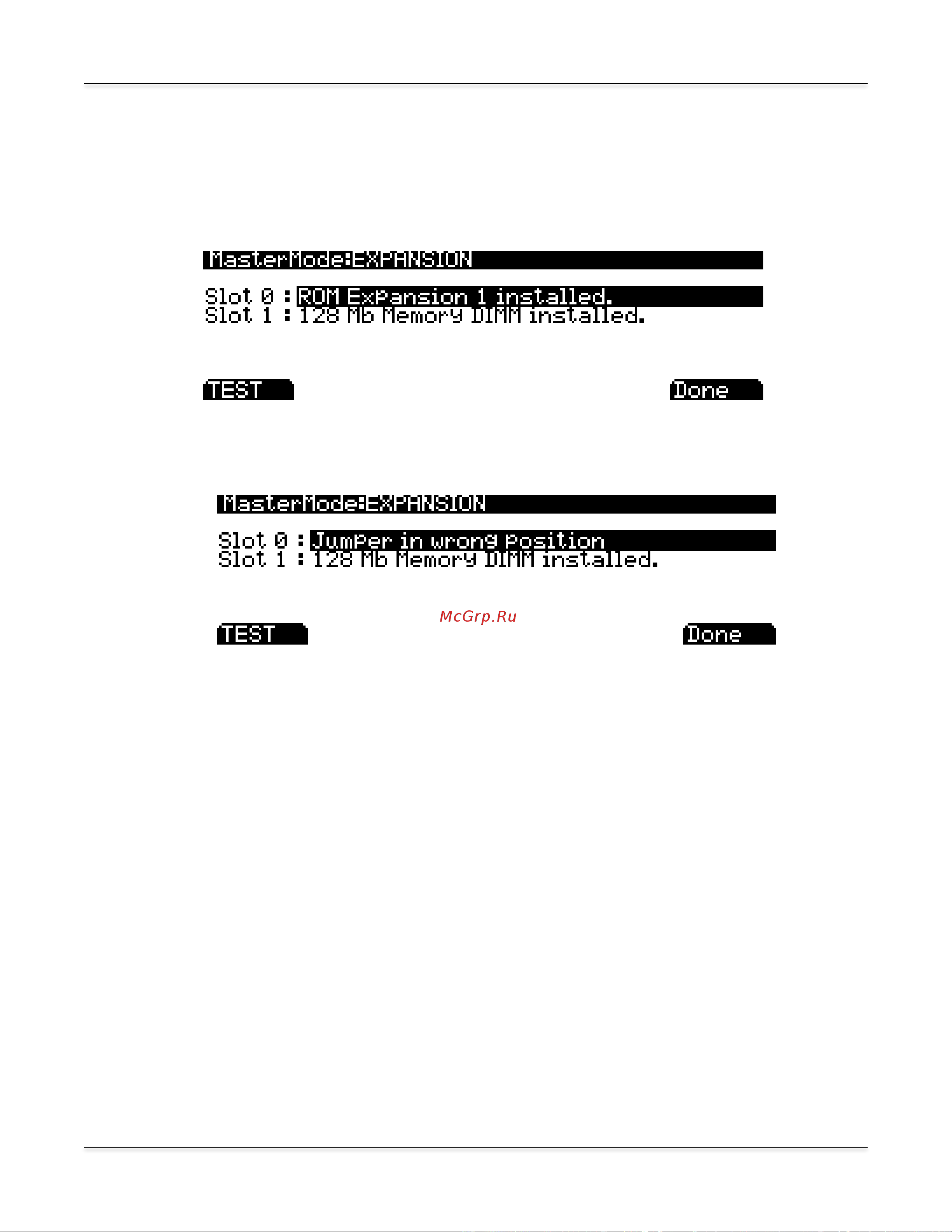

4. Use SOFT Button 3 to select the EXPAND option. You should see the following page. If so,

proceed to step 5. (Note: the diagnostic program refers to Slots, even though the main circuit

board uses the term Bank. These terms mean the same thing.) If so, proceed to step 5.

The following page appears if you’ve positioned the jumper on the expansion board incorrectly.

Turn off your instrument, disconnect the power supply, open the access panel, remove the

expansion board, and repeat the instructions in Preparing for Hardware Installation on page 4,

making sure to position the jumper correctly.

If you’ve configured the expansion board correctly, but the PC3’s display shows Empty DIMM

slot for Bank 0, you may not have installed the expansion board properly. Turn off your

instrument, disconnect the power supply, and repeat the instructions in Hardware Installation:

PC3K on page 8.

If you’ve configured the expansion board correctly, and have properly installed the board in

Bank 0, but you still see Empty DIMM slot for Bank 0, there may be a problem with the board

itself. The diagnostics in step 5 can help you determine if it’s a problem with the installation, or

with the board itself.
