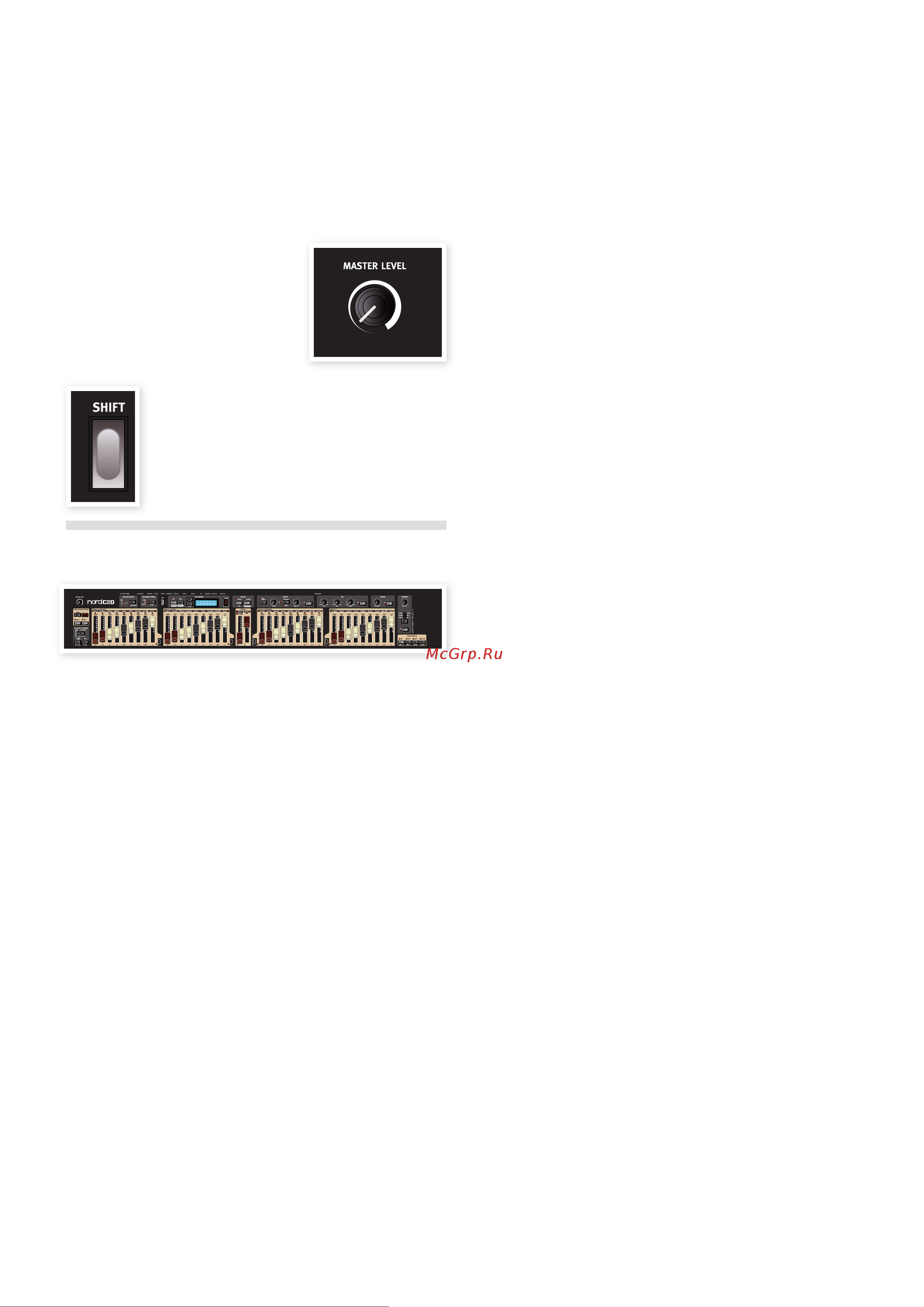

Master level knob

This control sets the overall output level of

the C2D, at the line- and the headphone

outputs. The setting of this control is not

stored in a Program.

Shift button

Many buttons have a second job, whose function is

printed below the button or knob. You access these

additional functions and parameters by holding down

shift while pressing a button.

The Organ area

The Nord C2D features four Organ Models; one digitally modeled tone-

wheel/B3 organ, two digitally modeled transistor (VX and Farf) organs

and a sampled baroque pipe organ.

The Organ area features three main sections for control:

•The Drawbar section is where you set-up the basic organ sound

structure. It is divided in three areas with controls for the Swell and

Great manuals, and the Bass Pedal registers.

•The Percussion area is where you control the percussion effect (avail-

able to the B3 organ model only)

•The Vibrato/Chorus area is where you select the chorus and/or

vibrato effect depending on the selected Organ Model.

The Drawbars

The Nord C2D has a full set of drawbars on the panel. They are divided

in ﬁve sets.

•The two sets of nine drawbars that are located to the left are used

with the Swell manual, labeled Swell A (Preset) and Swell B (Perc).

•The two drawbars in the center of the panel are used with the Pedal.

•The two sets of nine drawbars to the right are used with the Great

manual, labeled Great A (Preset) and Great B.

When the B3 and VX models are active you “pull out” and “push in” the

drawbars to change the sound.

When the Farf and the Pipe organ are used, the drawbars function as

switches, toggling each register on or off when they are pulled in or out.

Press the Drwb A or Drwb B buttons on the preset panel to adjust the

sound with the drawbars.

Presets

Every program in the C2D has settings for 6 presets. These settings

are recalled with the Preset buttons on the panels to the left of the keys

and red LEDs on the panel show which preset (or drawbar) is in focus.

If you want a particular drawbar setting to be recalled every time you

select a certain program, this setting should be saved in a preset and

that preset should then be in focus when the program is stored. The

presets saves different settings depending on the organ model.

B3 Swell Preset 1

Saves the settings of either the Swell A or Swell B drawbars and the

Chorus/Vibrato on/off setting of the Swell manual. If the Swell B draw-

bars are saved, the percussion settings may be saved in this preset.

 Percussion settings can be added to Preset 1 by editing the

preset, see below.

B3 Swell Preset 2 & 3

Saves the settings from the Swell A or B drawbars. Chorus/Vibrato on/

off and percussion settings are not saved.

B3 Great Preset 1

Saves the settings from the Great A or B drawbars and the on/off set-

ting of the Chorus/Vibrato for the lower manual.

B3 Great Preset 2 & 3

Stores the settings from the Great A or B drawbars.

M B3 Chorus/Vibrato mode is global and stored in the programs.

Vox, Farﬁsa Swell manual Preset 1, 2, & 3

Saves drawbar/switch settings from the Swell A or B drawbars.

Vox, Farﬁsa Great manual Preset 1, 2, & 3

Saves drawbar/switch settings from the Great A or B drawbars.

M All Vox/Farﬁsa Vibrato/Chorus settings are stored in the programs.

Pipe Organ Presets 1 to 6.

Saves the stop settings for both manuals from the Swell and Great

A or B drawbars, the coupler settings and the On/Off setting of the

tremulant.

M The Tremulant Mode setting is stored in the programs.

Pedal Preset

The Pedal has one Preset for each program for all organ models. If the

Synth Bass is used, the Pluck/Release settings will be saved in the

pedal preset.

Editing & Creating Presets

To edit the settings of an existing preset, hold down a preset button

and operate the drawbars or other controls that can be saved in this

particular preset. You can also double click on a Preset button to acti-

vate editing, the Preset LED will start to ﬂash. Press the Preset button

again to exit .

To create a preset from scratch, press the Drwb A or Drwb B button,

make the settings to the drawbars and other functions that may be

included in the preset. Hold Shift and press the preset button to save

the settings.

Nord C2d Reference
