5. Rackmount (Optional)

With the available rackmount (optional) you have the possibility to place ve

SHARKs on two units of space in your rack.

◊ Before you begin with the work, please disconnect the Power Supply

Units from the SHARKs!

To mount the SHARKs on the rackmount you should use the supplied screws

(typeM3). You need two screws to x one FBQ100 onto the rackmount. In the

bottom of your SHARK you will nd two little threads. You have to position the

single SHARKs on the rackmount, so that the threads correspond to the cutouts

of the rackmount (see g.5.1). Now you can x the FBQ100 onto the rackmount.

Just take a cross-point screwdriver and tighten both screws loosely. After you

have xed all SHARKs on the rackmount, you can adjust the devices and tighten

all screws solidly.

Bottom FBQ100

Thread 1

Cutout 1

Cutout 2

Front Rackmount (Bottom View)

Thread 2

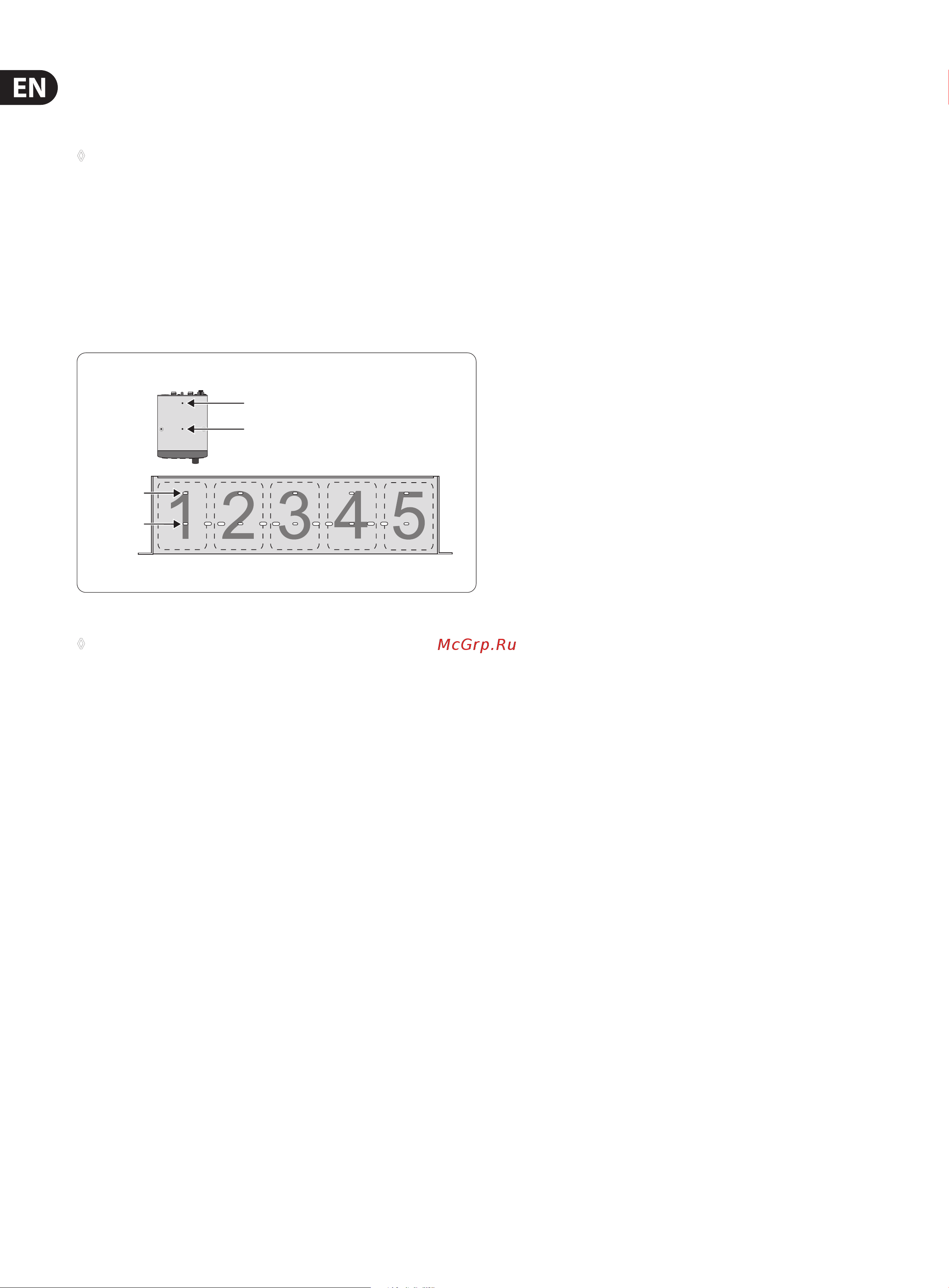

Fig. 5.1: Installation of the FBQ100 on the available rackmount (optional)

◊ Please, only use the supplied screws to install the SHARKs on the

rackmount. Longer or thicker screws can damage the electronics inside

of the device and doing so will void your warranty rights.

You will need 2 units of space for the FBQ100 rackmount. For technical reasons a

little gap remains above the rackmount.
