4. Audio Connections

As a standard, the BEHRINGER SUPER-X PRO CX2310 is equipped with

electronically servo-balanced inputs and outputs. The circuit design features

automatic hum suppression for balanced signals and so ensures trouble-free

operation, even at the highest operating levels. Externally induced mains hum,

etc. can therefore be eectively suppressed. The automatic servo-function

recognizes the presence of unbalanced connectors and adjusts the nominal level

internally to avoid level dierences between the input and output signals

(6-dB correction).

◊ Please ensure that only qualified persons install and operate the

SUPER-X PRO. During installation and operation the user must have

sufficient electrical contact to earth. Electrostatic charges might affect

the operation of the unit.

strain relief clamp

sleeve

tip

sleeve

(ground/shield)

Unbalanced ¼" TS connector

tip

(signal)

strain relief clamp

sleeve

ring

tip

sleeve

ground/shield

For connection of balanced and unbalanced plugs,

ring and sleeve have to be bridged at the stereo plug.

Balanced ¼" TRS connector

ring

cold (-ve)

tip

hot (+ve)

output

For unbalanced use, pin 1 and pin 3

have to be bridged

1 = ground/shield

2 = hot (+ve)

3 = cold (-ve)

input

Balanced use with XLR connectors

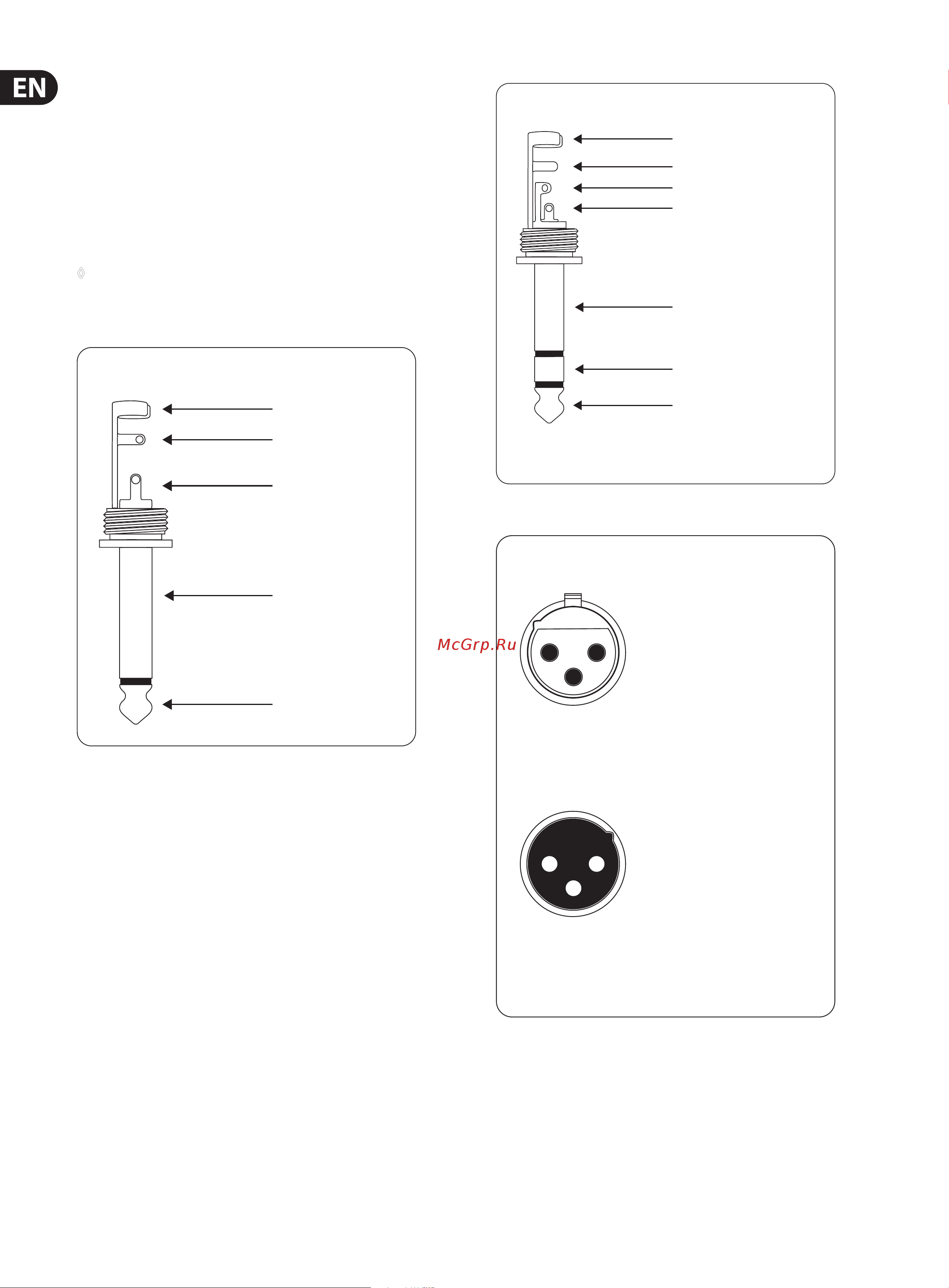

Fig. 4.1: Dierent plug types
