Connections for Stereo

(GSR12 and GSR10)

The GSR12 and GSR10 can be used in pairs for stereo sound reinforcement as shown in the following figure.

To connect a pair of GSR speakers for stereo operation:

1 On the back of both GSR speakers, turn the Level control down (counter-clockwise to Min). Make sure power is Off.

2 On the back panel of each speaker, do each of the following:

• Make sure the same Mode is selected (if you’re not sure, set both speakers to Normal). For more information, see “Modes for

Speaker Presets” on page 11.

• Make sure the Mic/Line button is set to Line.

• Make sure the HPF 75Hz button is in the out position (disengaged).

3 Connect an XLR or 1/4-inch TRS cable from the Left output of the mixer or other device to the Input on the back of the GSR

speaker you’ve set up for the left. Repeat for the other GSR speaker, making sure to source it from the Right output of the mixer

or other device.

4 Turn the speakers on using their Power switches.

5 To check levels, begin playback of audio through the mixer with its mains or master output set to its recommended position,

then slowly raise the Level knob on the back of the GSR speaker. Repeat for the other speaker.

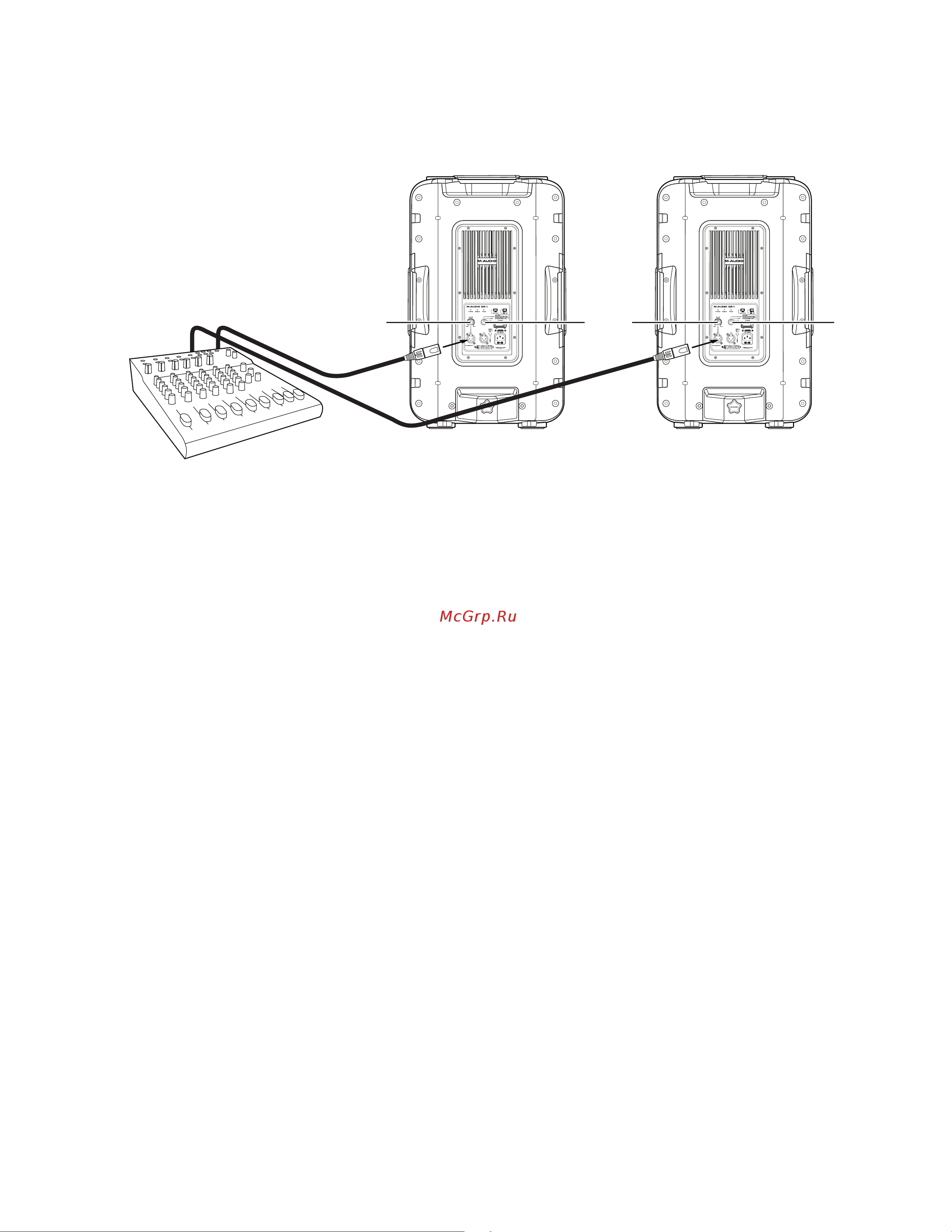

Figure 3. Connections for stereo operation
