3. PRODUCT LABEL: This label contains the model and serial number information.

4. VENT PORT: This port aids in reproduction of very low frequencies by

discharging frequencies below 30 Hz..

5. VOLUME CONTROL: Use the volume control to set the output sound

pressure from the SP-8B to proper levels as required.

6. POWER SWITCH: This switch turns the monitor on and off. The on position

is indicated by the marking “I”.

7. POWER RECEPTACLE: Accepts a detachable 3-circuit line cord in order to

power the monitor.

8. FUSE HOLDER: Holds the external main fuse.

9. VOLTAGE-SELECT SWITCH: Provides 2 selections - 115VAC and 230VAC,

and should be set to match the “house current” (receptacle) voltage of the

country/location in which the speaker is used. The 115V setting is correct for

the USA andthe 230V setting correct for most of the UK and Europe.

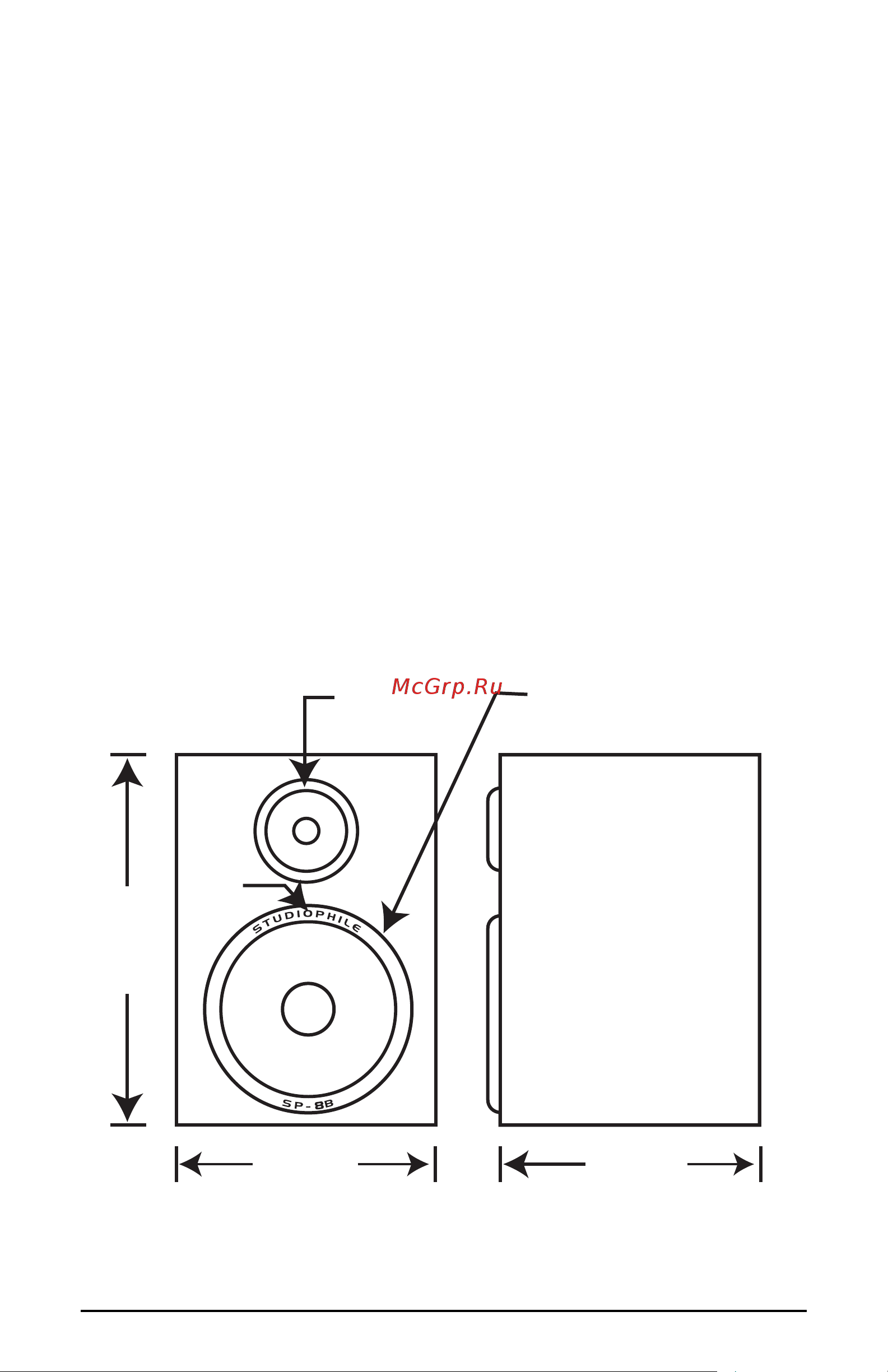

Front Panel and Side View:

1. The front panel houses the Power LED which indicates whether the speakers

(amplifier) power is on or off.

HF Driver

(Tweeter)

LF Driver

(Woofer)

Power

LED

9.5 inches 11.82 inches

14.97 inches
