HARDWARE INSTALLATION
13
Connecting a SMPTE time code destination
Connect the SMPTE OUT port of your MOTU MIDI
interface to the SMPTE time code input of any
destination
device that accepts SMPTE time code as shown in
Figure 2-6. For example, time code can be recorded on an
outside track of a multitrack tape recorder so that
everything can subsequently be synchronized to the
multitrack. Other examples of a SMPTE time code
destination are systems that have the ability to slave to
SMPTE time code, such as stand-alone hard disk
recording systems, digital audio workstations, or
automated mixing consoles.

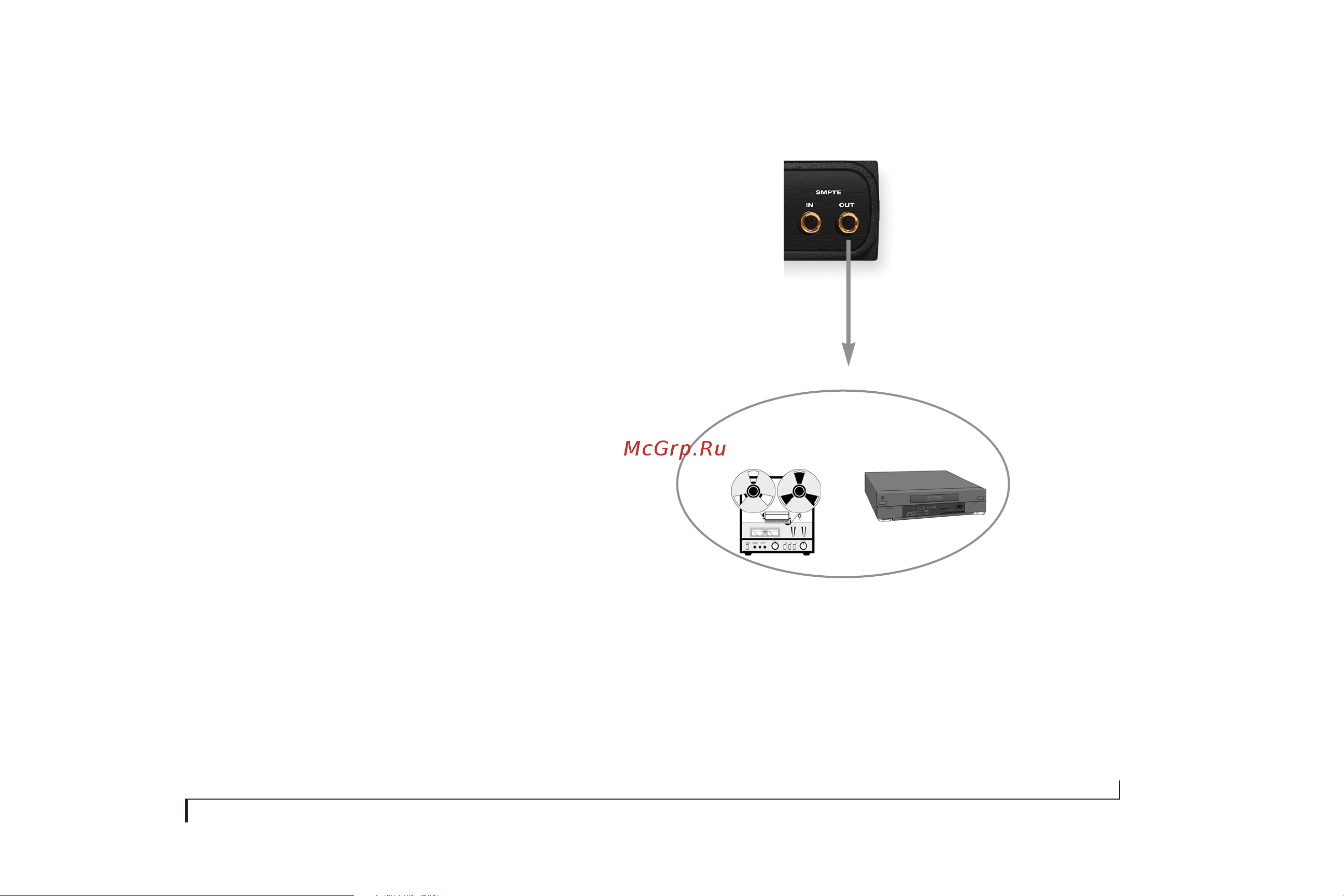

Figure 2-6: Connecting a SMPTE time code destination.
Analog audio tape recorder
Video tape recorder
Examples of a SMPTE
time code destinations
SMPTE or Audio in
Shielded, quarter-inch audio cable
MOTU MIDI Interface
SMPTE OUT
!USB Interfaces Manual Book Page 13 Tuesday, August 16, 2011 11:21 AM
