K-ARRAY KK102 [11/24] Rear panel

REV. A

KK52/KK102

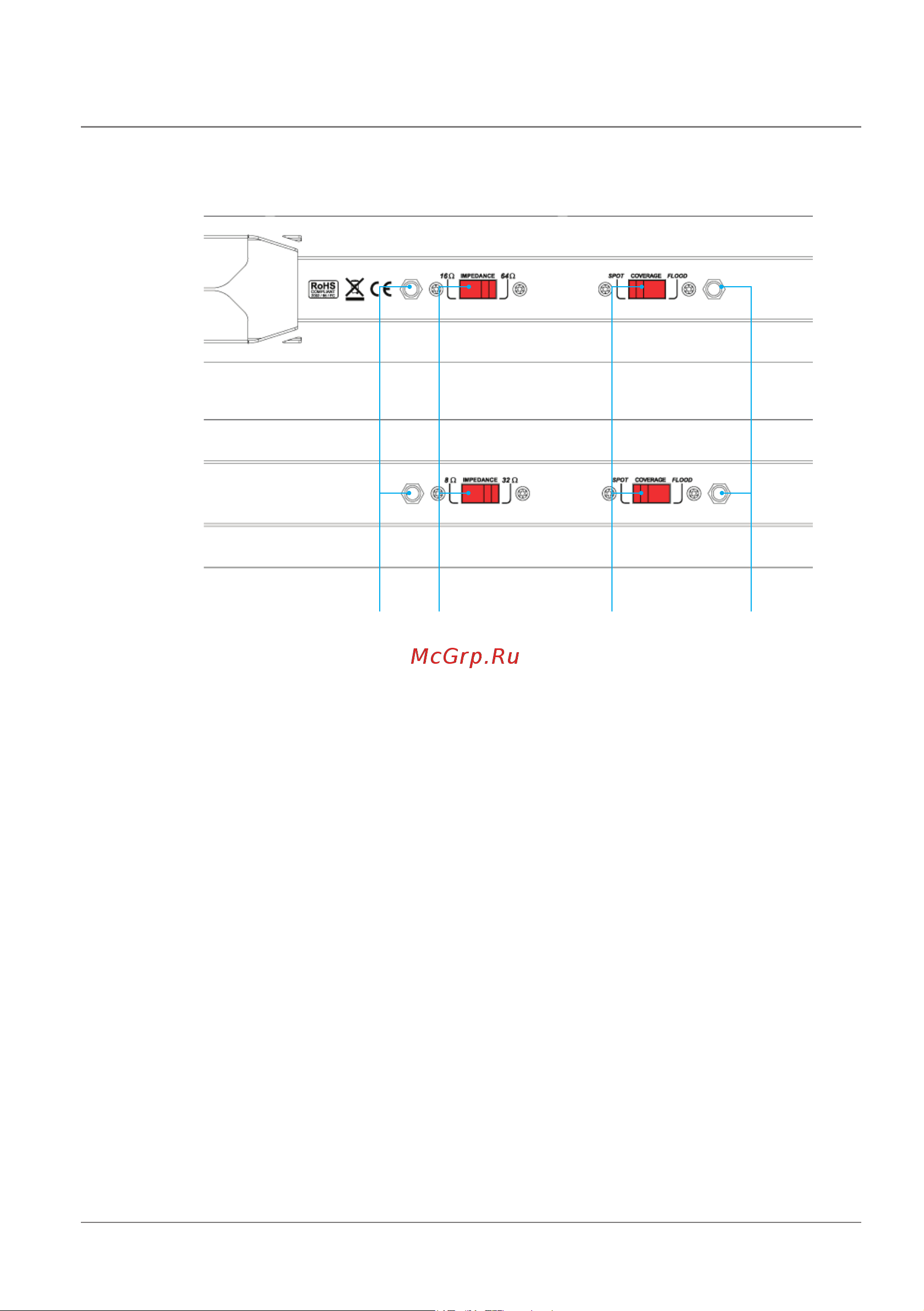

8. REAR PANEL

1 12

1) Mounting screw holes. Most K-array mounting or flying accessories are designed to screw into the speakers

using these holes. The KK52 is equipped with two screw holes, while the KK102 is equipped with four.

2) Impedance switch. Selects the impedance of the speaker. Impedance must be set to high (64 Ω for KK52 and

32 Ω for KK102) when speakers are driven by KMT active modules. Low impedance may be used when speakers are

driven by most KA series amplifiers (KA3, KA7, KA10). Please refer to your amplifier’s specifications to select the

correct speaker impedance for your configuration.

3) Coverage switch. Selects the vertical dispersion of the speaker. Flood coverage sets a wide vertical

diffusion angle of 60° (KK52) / 35° (KK102). Flood coverage is suggested for single speakers in diffused (image 1)

short throw applications, to obtain maximum diffusion with a minimum footprint. Spot coverage sets a narrower

vertical diffusion angle of 10° (KK52) / 7° (KK102). Spot coverage is recommended for long throw or monitoring

applications (image 2). In most multi-speaker applications, set coverage to Spot (image 3). A combination of Flood

and Spot may also be effective for downfill applications (image 4).
